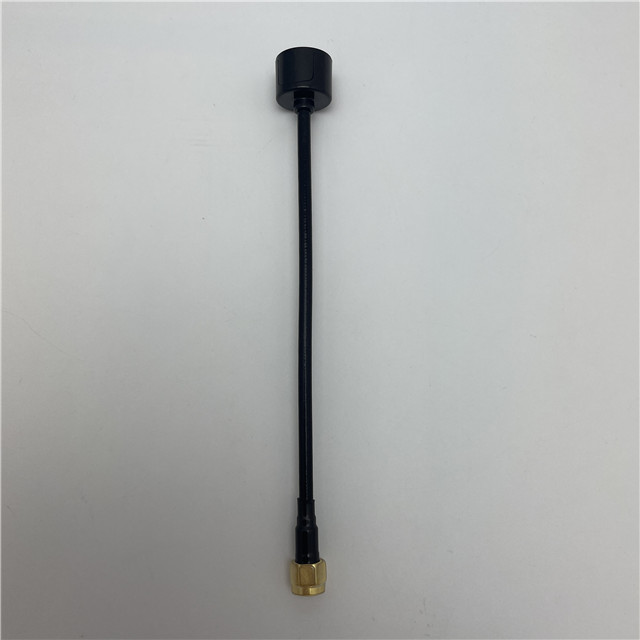

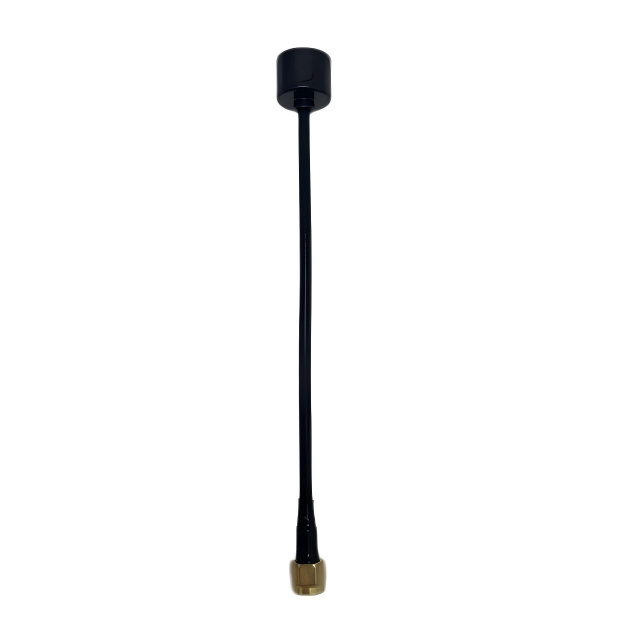

GL5800-160 5.8GHz Omni Drone Antenna
SKU GL5800-160
GL5800-160 is a 5.8 GHz omni drone antenna with SMA male connector and 160 mm height for lightweight anti-drone and RF communication applications.
SKU
GL5800-160
Frequency
5500-5800 MHz
Dimensions
Height 160 mm
Connector
SMA Male
Mounting
Connector Mount
Application
Drone Detection
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL5800-160 |
|---|---|
| Frequency | 5500-5800 MHz |
| Dimensions | Height 160 mm |
| Connector | SMA Male |
| Mounting | Connector Mount |
| Application | Drone Detection |
| Category | Drone Antenna & Drone Detection & Mitigation Antenna |
Product Overview
GL5800-160 is a compact 5.8 GHz omni antenna intended for drone-related RF equipment. It provides a short 160 mm body option while maintaining standard SMA male interface compatibility.
Key Features
- Operating band: 5500-5800 MHz
- Typical gain range: 4.5-6 dBi
- Connector type: SMA Male
- Mechanical size: Height 160 mm
Typical Applications
- Drone detection systems
- 5.8 GHz anti-drone RF links
- Portable RF test and mitigation units
Download PDF
Product Datasheet
Download the technical datasheet for this antenna.
Open Catalog
Product Catalog
Browse the RFTech catalog for product families and selection guidance.
Request Files
Request Product Files
Ask for drawings, test records, connector options, or a project-specific datasheet.
