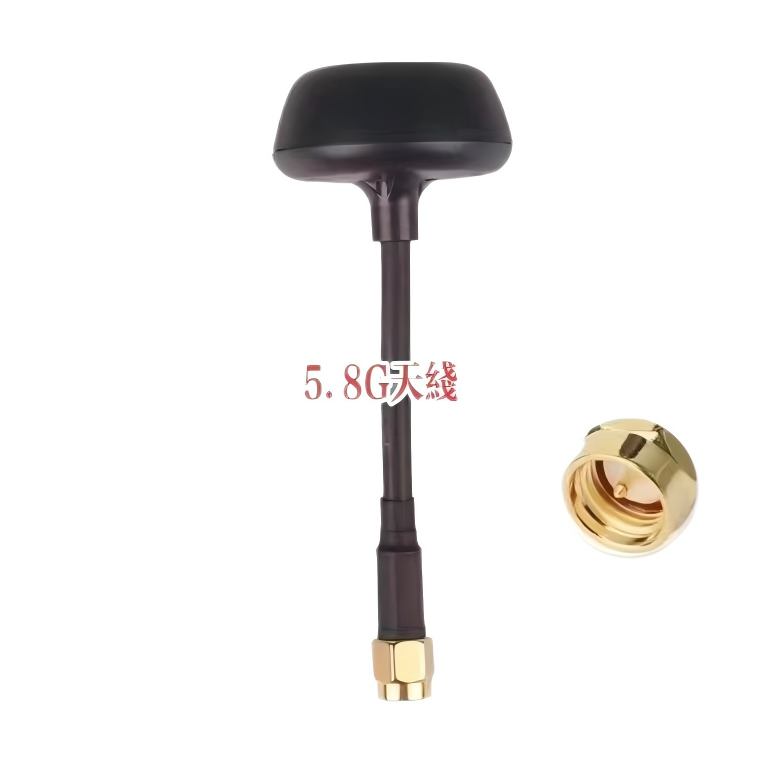

GL5800-165 5.8GHz Omni Drone Antenna
SKU GL5800-165
GL5800-165 is a 5.8 GHz omni drone antenna with SMA male connector and 165 mm profile for anti-drone detection and communication setups.
SKU
GL5800-165
Frequency
5500-5800 MHz
Dimensions
Height 165 mm
Connector
SMA Male
Mounting
Connector Mount
Application
Drone Detection
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL5800-165 |
|---|---|
| Frequency | 5500-5800 MHz |
| Dimensions | Height 165 mm |
| Connector | SMA Male |
| Mounting | Connector Mount |
| Application | Drone Detection |
| Category | Drone Antenna & Drone Detection & Mitigation Antenna |
Product Overview
GL5800-165 is a 5.8 GHz omni-directional antenna for drone detection and RF mitigation projects. It follows a simple connector-mount structure for straightforward field installation.
Key Features
- Operating band: 5500-5800 MHz
- Typical gain range: 4.5-6 dBi
- Connector type: SMA Male
- Mechanical size: Height 165 mm
Typical Applications
- Drone detection systems
- 5.8 GHz anti-drone RF coverage
- Fixed and mobile RF stations
Download PDF
Product Datasheet
Download the technical datasheet for this antenna.
Open Catalog
Product Catalog
Browse the RFTech catalog for product families and selection guidance.
Request Files
Request Product Files
Ask for drawings, test records, connector options, or a project-specific datasheet.
Similar Products
Explore related antenna options
Drone Antenna & Drone Detection & Mitigation Antenna

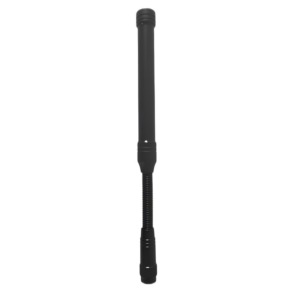

GL70600V-3 698-6000MHz Wideband Drone Antenna
