Patch Antenna Applications for GPS & GNSS Devices
Where ceramic and microstrip patch antennas are used, how each application changes the antenna choice, and which Rftech pages help you move from use case to product selection.
Start here if you need
- A quick map of patch antenna uses in GPS/GNSS, tracking, telematics, timing, and embedded devices.
- Help deciding whether to compare GPS patch options, RHCP patch options, or custom assemblies.
- Internal links to product, technical, and RFQ pages without changing the site navigation.
What is a patch antenna used for?
A patch antenna is used when a device needs a low-profile antenna that can fit close to a circuit board, enclosure, or equipment surface. In GPS/GNSS products, ceramic patch antennas are common because they can provide RHCP reception in compact hardware. In embedded wireless products, microstrip patch designs are also used when directional or low-profile radiation is needed.

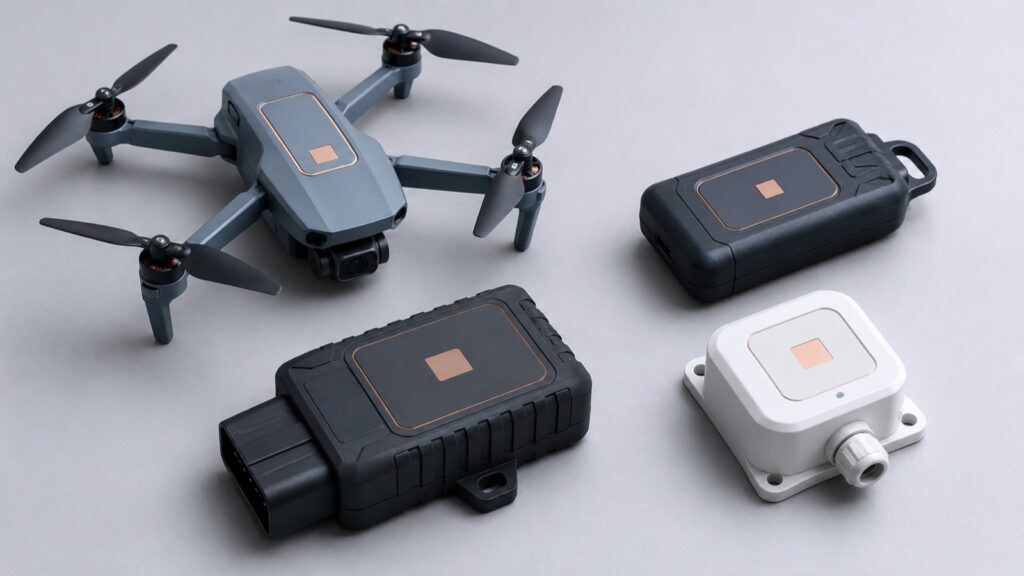

Common patch antenna applications
Asset tracking
Logistics tags, cargo trackers, and compact location devices need small GNSS patches that balance size, ground plane, and receiver sensitivity.
Vehicle telematics
Fleet terminals and connected vehicle units often combine GNSS, cellular, and multiple RF paths inside one enclosure.
RTK and surveying equipment
High-accuracy receivers need RHCP quality, axial ratio control, phase-center stability, and careful placement.
Precision agriculture devices
Guidance receivers, equipment monitors, and field sensors need stable GNSS reception in outdoor environments.
Timing and synchronization
Timing receivers use GNSS signals for network, telecom, and industrial synchronization, where signal margin and installation quality matter.
Compact GNSS modules
Embedded modules need a patch size, feed, ground plane, and enclosure plan that match the receiver and final product layout.
Application to product map
| Application | Main antenna concern | Recommended path |
|---|---|---|
| Asset tracking | Compact size, battery life, enclosure loss | Tracking application guide |
| Vehicle telematics | GNSS plus nearby cellular radios | GPS/GNSS patch antennas |
| RTK and surveying | RHCP, axial ratio, phase-center stability | RHCP technical guide |
| Timing receivers | Stable reception and installation repeatability | Custom assembly support |
| Embedded GNSS modules | Patch size, board layout, connector and cable | Selection checklist |
How to narrow the selection
- Start with the receiver and GNSS bands: L1 only, dual-band, or multi-band.
- Confirm available patch size and ground-plane area before comparing gain values.
- Choose passive or active architecture based on cable loss and receiver placement.
- Use RHCP selection notes when multipath, axial ratio, and precision positioning matter.
- Send mechanical constraints early when a custom cable, connector, or enclosure fit is required.
Related patch antenna pages
GPS Patch Antenna
Product and selection page for GPS/GNSS ceramic patch antennas.
RHCP Patch Antenna
Technical guide for RHCP, axial ratio, multipath rejection, and GNSS performance.
Patch Antenna Manufacturer
Commercial RFQ page for samples, custom cables, connectors, and OEM support.
Related patch antenna guide
For the complete topic map, selection tables, applications, and engineering resources, see the Patch Antennas guide.
Need help matching a patch antenna to an application?
Send your device type, GNSS bands, available space, ground-plane size, cable length, connector, and installation notes. Rftech can recommend standard patch options or discuss a custom assembly.
