GNSS antenna selection

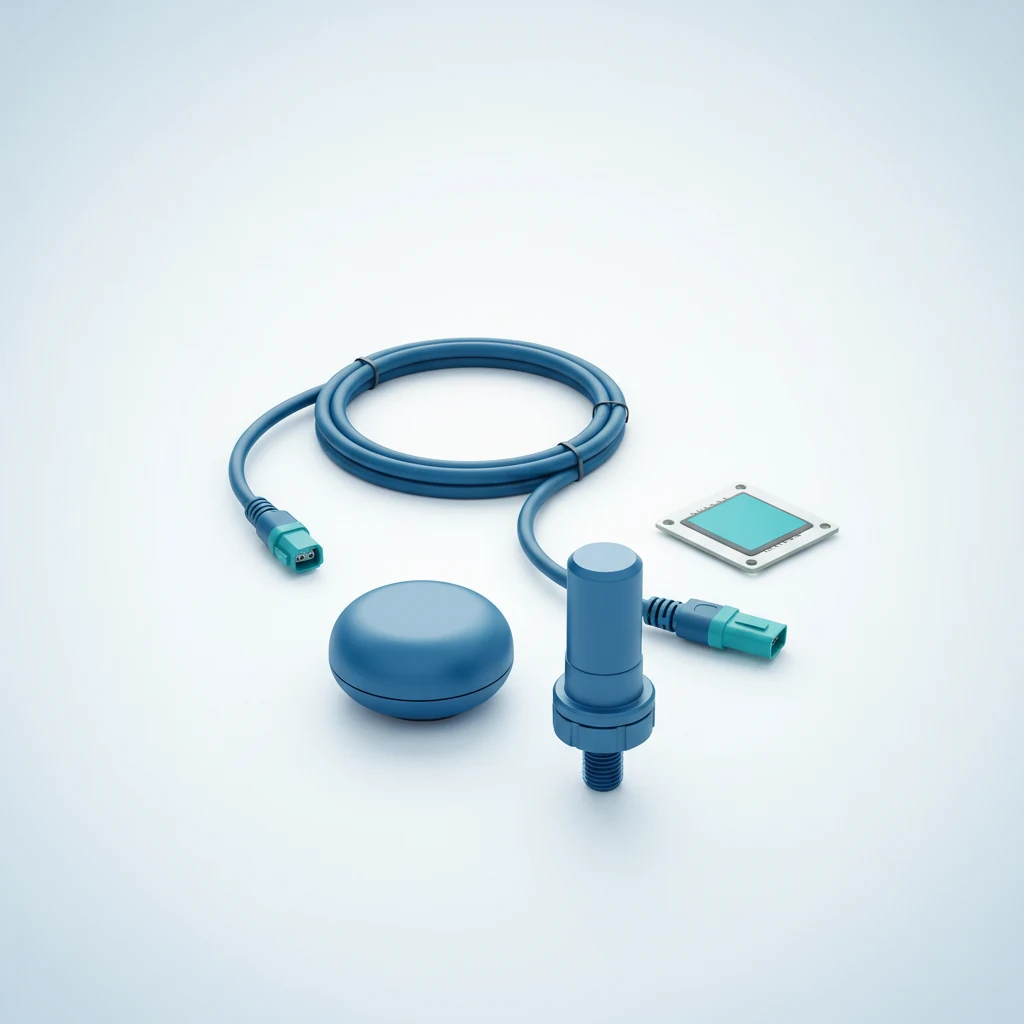

GPS & GNSS Antennas
Compare published GNSS antenna models by operating band, connector, mounting method and enclosure fit. Use this page to narrow the range, then confirm the final RF and mechanical configuration for your program.
Published product models
GPS & GNSS antennas for different interfaces and mounting plans
Start with the published operating band, then compare the interface and mounting method. Any configuration not listed on the model page should be confirmed for the project.
GL-DY006
A GPS/GNSS antenna with an MCX right-angle male interface and magnet or adhesive mounting. Published RF data lists 1575.42 ±1 / 1601–1610 MHz.
1575.42 ±1 / 1601–1610 MHz · MCX R/A male · Magnet or adhesive
GL-DY008
A GPS/GLONASS magnetic-mount model with an SMA male connector. Its published operating data lists 1575.42 ±1 / 1601–1610 MHz.
1575.42 ±1 / 1601–1610 MHz · SMA male · Magnet
GL-DY006F
A GPS/GNSS model with a Fakra C blue female connector and magnet or adhesive mounting. Published frequency data lists 1575.42 ±1 MHz.
1575.42 ±1 MHz · Fakra C blue female · Magnet or adhesive
GL-DY003C
A screw-mount model with two SMA male connectors. The published record lists GNSS and cellular-band values for an integration review.
1575.42–1610 / 806–960 / 1710–2690 MHz · 2 × SMA male · Screw mount
GL-DY225
A screw-mount GPS/GNSS antenna with a compact published 25 × 25 × 6 mm envelope. Confirm the final interface and configuration before quotation.
1575.42 ±3 / 1602–1610 MHz · Interface to be confirmed · Screw mount
GL-DY226
A screw-mount GPS/GNSS model with a published 40 × 30 × 15 mm envelope. Confirm the intended receiver interface and complete configuration for the application.
1575.42 MHz · Interface to be confirmed · Screw mount
GPS & GNSS antenna comparison
This comparison uses values already published for each model. Missing fields are intentionally shown as to be confirmed.
| Model | Published band | Connector | Mounting | Published size | Details |
|---|---|---|---|---|---|
| GL-DY006 | 1575.42 ±1 / 1601–1610 MHz | MCX R/A male | Magnet or adhesive | 46 × 38.5 × 13.5 mm | View |
| GL-DY008 | 1575.42 ±1 / 1601–1610 MHz | SMA male | Magnet | 50 × 37 × 17 mm | View |
| GL-DY006F | 1575.42 ±1 MHz | Fakra C blue female | Magnet or adhesive | 46 × 38.5 × 13.5 mm | View |
| GL-DY003C | 1575.42–1610 / 806–960 / 1710–2690 MHz | 2 × SMA male | Screw mount | to be confirmed | View |
| GL-DY225 | 1575.42 ±3 / 1602–1610 MHz | to be confirmed | Screw mount | 25 × 25 × 6 mm | View |
| GL-DY226 | 1575.42 MHz | to be confirmed | Screw mount | 40 × 30 × 15 mm | View |
GNSS integration
Need help choosing a GNSS or patch antenna?
Tell us your device size, ground plane, constellation, cable and mounting requirements. We can help match active, passive or embedded GNSS antenna options.
Three steps to narrow a GNSS antenna range
Define the receiver and deployment first; then check the published interface and mechanical fit.
Confirm the satellite service and band
Start with the receiver, required services and published operating band. For timing systems, review the GPS timing antenna range.
Match the RF interface
Check the published connector, required cable path and the antenna input at the device. For compact device work, compare embedded antenna options.
Confirm mounting and installation
Match magnetic, adhesive or screw mounting to the enclosure and site. Vehicle projects can also start from the vehicle GPS antenna range.
GPS & GNSS antenna questions
Is GPS the same as GNSS?
GPS is one satellite navigation system. GNSS is a broader term used when a receiver or project considers multiple satellite systems. Select against the receiver and the published model record.
How do I choose an active or passive antenna?
The receiver architecture, feed arrangement and cable path need review together. Confirm the complete antenna configuration rather than choosing by housing style alone.
Can I choose only by connector?
No. The published operating band, connector, mounting method and physical envelope all need to fit the application. Use the product page as the model-specific reference.
Where can I compare related GNSS designs?
For a practical overview of the terminology, see GPS antenna vs. GNSS antenna. For a product family overview, browse the GPS & GNSS range.
Request a GNSS antenna shortlist
The more project information you provide, the more specific the model review can be.
- Receiver or module and required satellite service
- Operating band and antenna feed arrangement
- Connector, cable path and available installation space
- Mounting method, deployment environment and quantity
Customer project snapshot
Outdoor GNSS Positioning Integration
An outdoor positioning project required a GNSS antenna solution suited to field installation and signal-quality priorities. The evaluation focused on installation compatibility and reliable system integration.
