An RF combiner is a passive component that merges two or more radio-frequency signals into a single output while holding the system’s characteristic impedance (usually 50 Ω, sometimes 75 Ω). It is the same physical device as an RF splitter or power divider — just used in the opposite direction. Feed one port and power divides to the others; feed several ports and their power combines into one. Engineers reach for RF combiners to add power-amplifier outputs together, feed several transmitters into one antenna, or sum signals in test and distribution systems.
This guide covers what a combiner is, how it works, the main types (resistive, Wilkinson, hybrid and cavity), the specs that matter, the loss and power-rating traps that catch people out, and a short checklist for choosing one.
RF combiner vs splitter, divider, coupler and diplexer
These terms get mixed up constantly, partly because some of them describe the same hardware. Here is the plain-English version:
| Device | What it does | Key point |
|---|---|---|
| Splitter / power divider | Takes one input, divides power to N outputs | Same device as a combiner, run “forwards” |
| RF combiner | Takes N inputs, sums power to one output | A divider run “backwards” — reciprocal |
| Directional coupler | Samples a small, fixed fraction of power in one direction | Unequal split with directivity; for monitoring/measurement, not 50/50 combining |
| Hybrid coupler | 3 dB split with a fixed 90° or 180° phase relationship | A specific combiner/divider type with defined phase (see the directional/hybrid coupler guide) |
| Diplexer / multiplexer | Combines or separates different frequency bands | Uses filters; avoids the inherent split loss of a same-band power combiner |
The single most useful fact: a combiner and a divider are one reciprocal network. A part sold as a “2-way power divider” is also a “2-way combiner.” What changes is which port you drive — and, as we’ll see, how much power it can actually handle in each direction.
How does an RF combiner work?
A passive combiner adds signals using a network of transmission-line sections, transformers or lumped L-C elements, arranged so that in-phase energy at the input ports sums at the output port and reflected or out-of-phase energy is steered into an isolation resistor instead of bouncing back to the sources.
Two things are happening at once:
- Vector addition. The output is the vector sum of the inputs. Two equal, in-phase, same-frequency signals combine efficiently. Signals that differ in phase or frequency do not fully add — the difference has to go somewhere.
- Isolation. A good combiner keeps its input ports isolated from each other so that one amplifier’s output does not push back into its neighbour. The isolation resistor in a Wilkinson design is what absorbs the mismatched energy and provides that port-to-port isolation.
Combiners can also be active (using amplifier or mixer stages), but the vast majority of RF combiners you will specify are passive and reciprocal.
Types of RF combiners
There are four topologies you’ll meet in practice. They trade off bandwidth, loss, isolation, power and size/cost differently.
| Type | Bandwidth | Loss | Isolation | Power | Size / cost | Typical use |
|---|---|---|---|---|---|---|
| Resistive | Very wide (DC-multi-GHz) | High (extra ~6 dB on a 2-way) | Moderate | Low | Small / cheap | Lab, test, where flatness beats efficiency |
| Wilkinson | Moderate (≈ octave per section) | Low | High | Medium–high | Compact / moderate | The workhorse for combining amplifiers |
| Hybrid (90°/180°) | Moderate–wide | Low | High | Medium–high | Compact / moderate | Balanced amps, phased feeds, quadrature |
| Cavity | Narrow / tuned | Very low | Very high | Very high | Large / expensive | Multi-transmitter site combining |
- Resistive dividers/combiners use a simple resistor network. They are extremely broadband and flat but throw away power, so they suit signal routing and test, not power combining.
- Wilkinson combiners use quarter-wave lines plus an isolation resistor. They give low loss and good isolation, which is why they are the default for combining power-amplifier outputs. The Wilkinson is the most common divider/combiner at microwave frequencies.
- Hybrid / quadrature combiners are built on 3 dB hybrid couplers and add a defined 90° or 180° phase relationship — ideal for balanced amplifiers and antenna feeds.
- Cavity combiners use large, high-Q resonant cavities. They are lower-loss and handle much higher power, at the cost of size and price; they dominate transmitter combining (covered below).
Insertion loss, isolation and the specs that matter
When you combine N equal signals, there is an unavoidable, purely theoretical split relationship set by the port count, plus real dissipative insertion loss on top.
| Ports | Theoretical split relationship | Note |
|---|---|---|
| 2-way | 3 dB | Power halves per output (or two combine to ~2×) |
| 4-way | 6 dB | e.g. +30 dBm in on a divider → ~+24 dBm per output |
| 8-way | 9 dB | Each doubling of ports adds ~3 dB |
Real parts add insertion loss (industry-typical ~0.3–1 dB for broadband connectorised combiners) on top of that split figure. The other specs to compare:
- Isolation between ports (higher dB is better; protects sources from each other)
- VSWR / return loss at every port (industry-typical VSWR down to ~1.3:1 on good broadband parts)
- Amplitude balance and phase balance across outputs
- Power handling — and read the next section, because this number is not symmetric
- Frequency range and impedance (50 or 75 Ω)
Industry-typical broadband combiner families span roughly 2- to 48-way, ~20 MHz–6 GHz, up to a few hundred watts, with specialised parts reaching much higher frequencies. Treat these as generic ranges, not a spec sheet. Global RF Tech’s current in-catalogue part is the GLMPD2N broadband RF power divider/combiner (698–3800 MHz, multiple connector options); for other port counts, bands or power levels, send your requirements.
Coherent vs non-coherent power: the rating trap
This is the mistake that damages parts. A combiner’s power rating is often far lower than the same part’s splitter rating.
- Coherent signals (same frequency, same phase — e.g. one signal split, amplified in matched paths, then recombined) add almost losslessly. The device combines them efficiently.
- Non-coherent signals (different frequencies or uncorrelated phases) do not fully add at the output. The mismatched power has nowhere to go except the internal isolation resistor, where it is dissipated as heat.
So a device rated, say, 100 W as a splitter may only be safe at a fraction of that as a combiner for non-coherent signals, limited by how much its isolation resistor can dissipate. Always check the datasheet’s combiner (internal load) power rating, not just the splitter rating, for your signal type.
RF combiner selection
Need an RF combiner matched to your system?
Send the frequency range, port count, input power, connector type and quantity. We will check the GLMPD2N or recommend a suitable divider or combiner configuration.

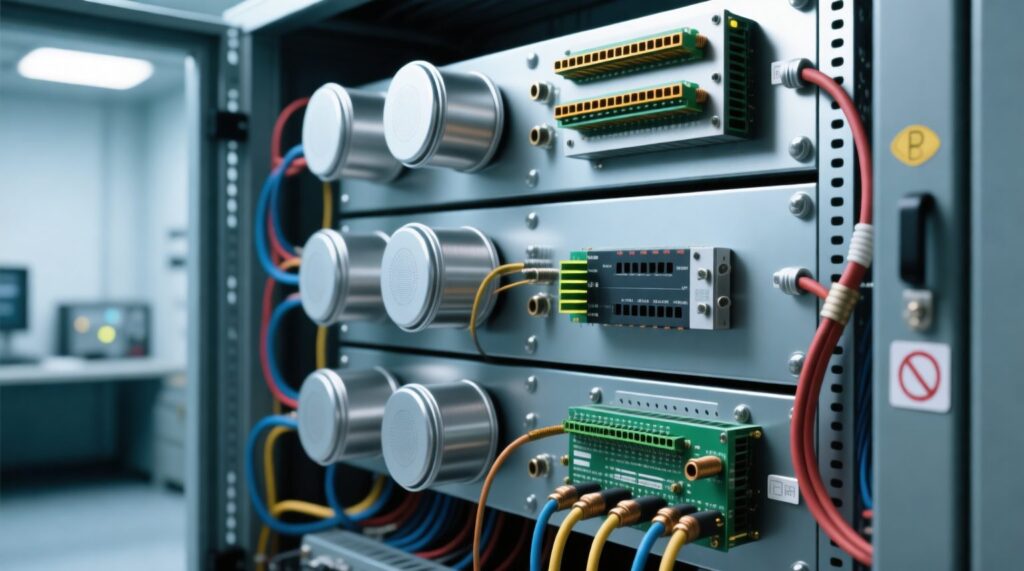

Cavity and transmitter combiners
When multiple transmitters need to share one antenna — think land-mobile radio (LMR), broadcast, or in-ear-monitor (IEM) systems — a broadband power combiner would waste too much power and offer too little selectivity. This is where cavity combiners come in.
A cavity combiner uses tuned, high-Q resonant cavities to merge each transmitter onto a common feed with very low insertion loss and very high isolation between transmitters, while its filtering reduces transmitter sideband noise that would otherwise desensitise co-located receivers. The trade-off is physical: cavities are large and relatively expensive, and they are tuned to specific channels.
Transmitter combining reduces antenna count, tower loading and site complexity — a major reason multi-channel sites use it despite the size and cost. Note that Global RF Tech currently supplies broadband power dividers/combiners such as the GLMPD2N rather than tuned cavity/transmitter combiners; for same-band combining across 698–3800 MHz, the GLMPD2N is the relevant part.
RF combiner applications
- Power-amplifier combining — summing several PA outputs into one high-power block, common in transmitters and radar.
- Transmitter / antenna combining — several transmitters onto one antenna (broadcast, LMR, IEM).
- Distributed antenna systems (DAS) — combining/distributing signals across a building or venue.
- Antenna arrays and feeds — corporate feed networks for phased or multi-element antennas.
- Test and measurement — summing sources, or sampling and monitoring signals.
How to choose an RF combiner (checklist)
- Function & ports — how many signals, and do you also need the reverse split? Pick the port count (2/4/8-way…).
- Frequency range — must cover your band with margin.
- Signal type — coherent or non-coherent? This sets the real power rating you need.
- Power handling — check the combiner-direction rating, including isolation-resistor dissipation.
- Loss & isolation — low insertion loss for power combining; high isolation to protect sources.
- Topology — resistive (broadband/test), Wilkinson (PA combining), hybrid (balanced/phase), cavity (transmitter sites).

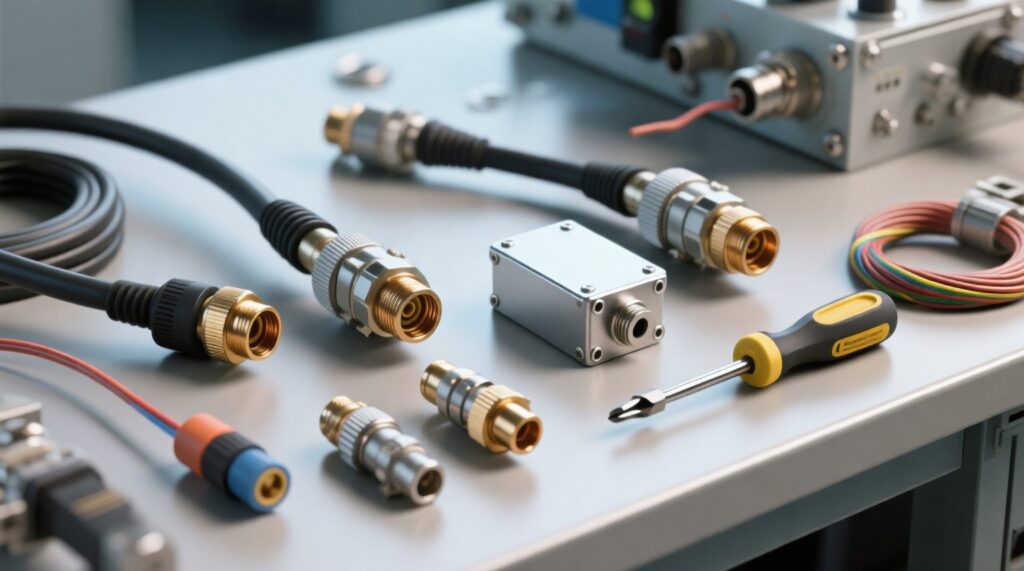

- Impedance & connectors — 50 or 75 Ω; SMA, N, BNC, TNC, etc. Parts like the GLMPD2N offer multiple connector options; confirm the exact interface for your build.
- Form factor — connectorised, surface-mount, or rack cavity.
FAQ
Is an RF combiner the same as a splitter?
Yes — physically it’s the same reciprocal device. Drive one port and it splits; drive the multiple ports and it combines. The difference is direction of use and the power rating that applies.
How much loss does an RF combiner add?
There’s a theoretical split relationship set by port count (≈3 dB for 2-way, 6 dB for 4-way, 9 dB for 8-way) plus real insertion loss (industry-typical ~0.3–1 dB on broadband parts).
Why is a combiner’s power rating lower than the splitter rating?
For non-coherent signals, power that doesn’t combine is dumped into the internal isolation resistor as heat. That resistor’s dissipation limit caps the combiner-direction power rating.
What’s the difference between a combiner and a directional coupler?
A combiner sums equal signals; a directional coupler samples a small, fixed fraction of power in one direction for monitoring or measurement.
Combiner or diplexer?
Use a power combiner for same-band signals (accepting split loss). Use a diplexer/multiplexer to combine different frequency bands with low loss.
What is a cavity combiner used for?
Combining multiple transmitters onto one antenna at a shared site, with very low loss, high isolation and channel filtering.
Which combiner type should I use to combine amplifiers?
Usually a Wilkinson (or hybrid) combiner — low loss plus high isolation between amplifier outputs.
