Patch Antenna Advantages and Disadvantages for Device Design

Patch antenna advantages and disadvantages only matter in the context of one question: does this antenna still work once it is inside the device you ship? A patch is flat, compact, and repeatable in volume, but its bandwidth, its ground plane, and the orientation of your product decide whether those benefits survive assembly.

Short answer: Pick a patch when the antenna can face a known direction (sky-facing GNSS is the classic case), when the PCB gives it a real ground plane, and when your frequency span is narrow enough for a resonant antenna. Avoid it when the device is used in random orientations, when one antenna must cover a very wide frequency range, or when it has to sit tight against metal.

Two numbers settle most of these decisions: the frequency span your product needs, and the span a single patch can actually deliver. This page shows how to compare them before you approve a part.

Quick Summary

Patch antennas are valued for low profile, compact size, repeatable manufacturing, and directional radiation. Their main limitations are narrow bandwidth, ground-plane dependence, enclosure sensitivity, and possible performance loss when the device orientation is not controlled.

Patch Antenna Advantages

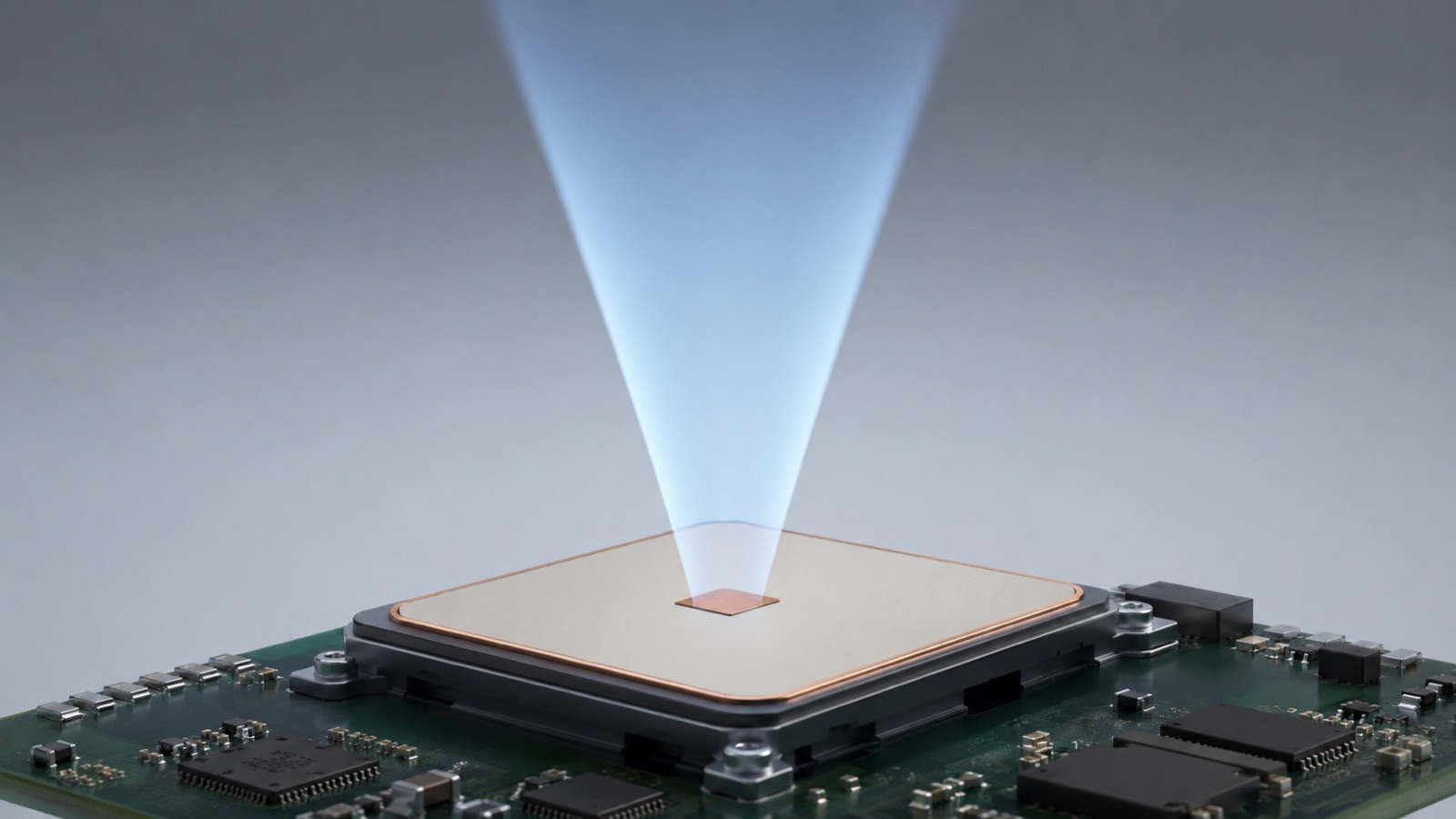

Patch Antenna Disadvantages and Integration Risks

The Bandwidth Math That Settles Most Arguments

Fractional bandwidth (the usable frequency span expressed as a percentage of the centre frequency) is the one number that predicts whether a patch can cover your bands. It is easy to work out:

Fractional bandwidth (%) = (upper frequency − lower frequency) ÷ centre frequency × 100

Now compare that with what the hardware gives you. A single-layer patch typically provides roughly 2–5% impedance bandwidth and 5–8 dBi of gain per element, and its narrow bandwidth is the fundamental limit of the format (IEEE Technology Navigator). NASA puts conventional patch bandwidth at under 10% (NASA T2 Portal).

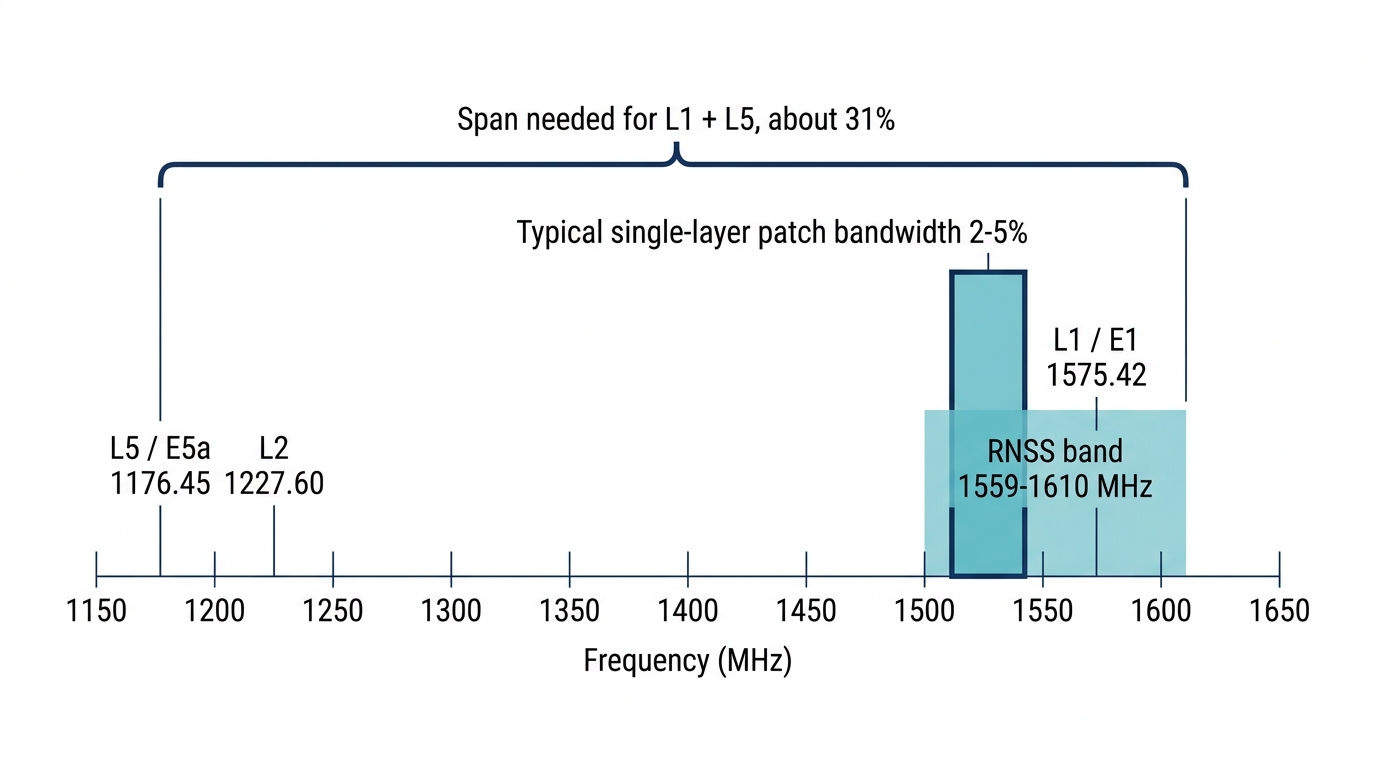

Then look at the bands you actually sell into. GPS civil signals sit at L1 1575.42 MHz, L2 1227.60 MHz and L5 1176.45 MHz (NIST), and the upper radionavigation-satellite band runs from 1559 to 1610 MHz (NTIA Table of Frequency Allocations).

• L1 band only (1559–1610 MHz): 51 MHz ÷ 1575 MHz ≈ 3.2%. A well-designed single patch can cover this.
• L1 down to L5 (1176.45–1610 MHz): 434 MHz ÷ 1393 MHz ≈ 31%. No single-resonance patch reaches that.

That is why multiband GNSS antennas are stacked or dual-fed rather than simply larger. If a supplier offers one single-resonance patch for L1 and L5, the arithmetic says you are getting one band properly and the other by luck. Treat these figures as engineering estimates for screening parts, not as measured results — the real number always comes from the antenna on your board.

Why Small Patches Fail After Assembly

Ceramic patches are small because the substrate has a high dielectric constant. The trade-off is a sharper resonance: the smaller the patch, the narrower its usable band, and the same amount of detuning eats a larger share of it.

Run a margin check before you commit to a size:

Detuning margin ratio = usable antenna bandwidth ÷ expected frequency shift after assembly

• Comfortably above 1: the antenna still lands inside the band once the enclosure, battery and cable are added.
• Near or below 1: the antenna will be out of tune in the finished product, however good the free-space datasheet looks.

So “the smallest part that fits” is the wrong selection rule. Choose the largest patch the mechanical design allows and spend the leftover margin on tuning. Free-space numbers are a best case; peak gain typically drops by a decibel or two once the antenna is inside a real device.

The Ground Plane Is Part of the Antenna

A patch does not radiate on its own — it radiates together with the ground plane underneath it. Change the ground plane and you change both the resonant frequency and the bandwidth, which is why a part that passes on a supplier evaluation board can still fail on your PCB.

Two points catch teams out:

• Bigger is not automatically better. Enlarging the ground plane raises gain with diminishing returns, and past a point you are paying board area for a fraction of a decibel while the radiation pattern and phase centre keep moving. For RTK and timing products, that movement matters more than the gain.
• The worst case is not the average case. Validate at both extremes of your ground-plane and enclosure variants, not on one golden sample.

A workable sequence: baseline on the real PCB, re-measure with enclosure, battery, display and cable in place, then confirm across production tolerances.

When a Patch Antenna Is a Good Choice

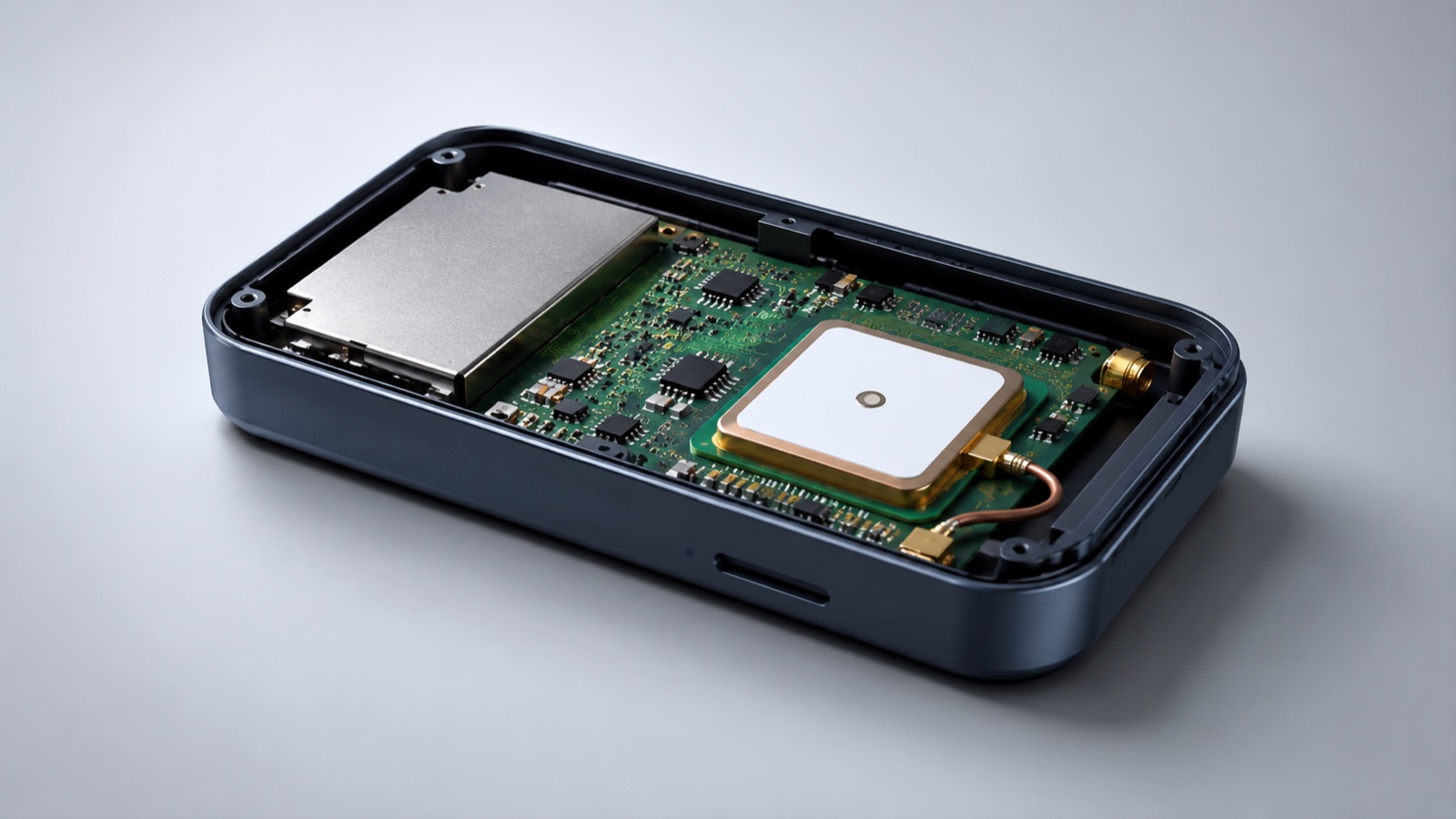

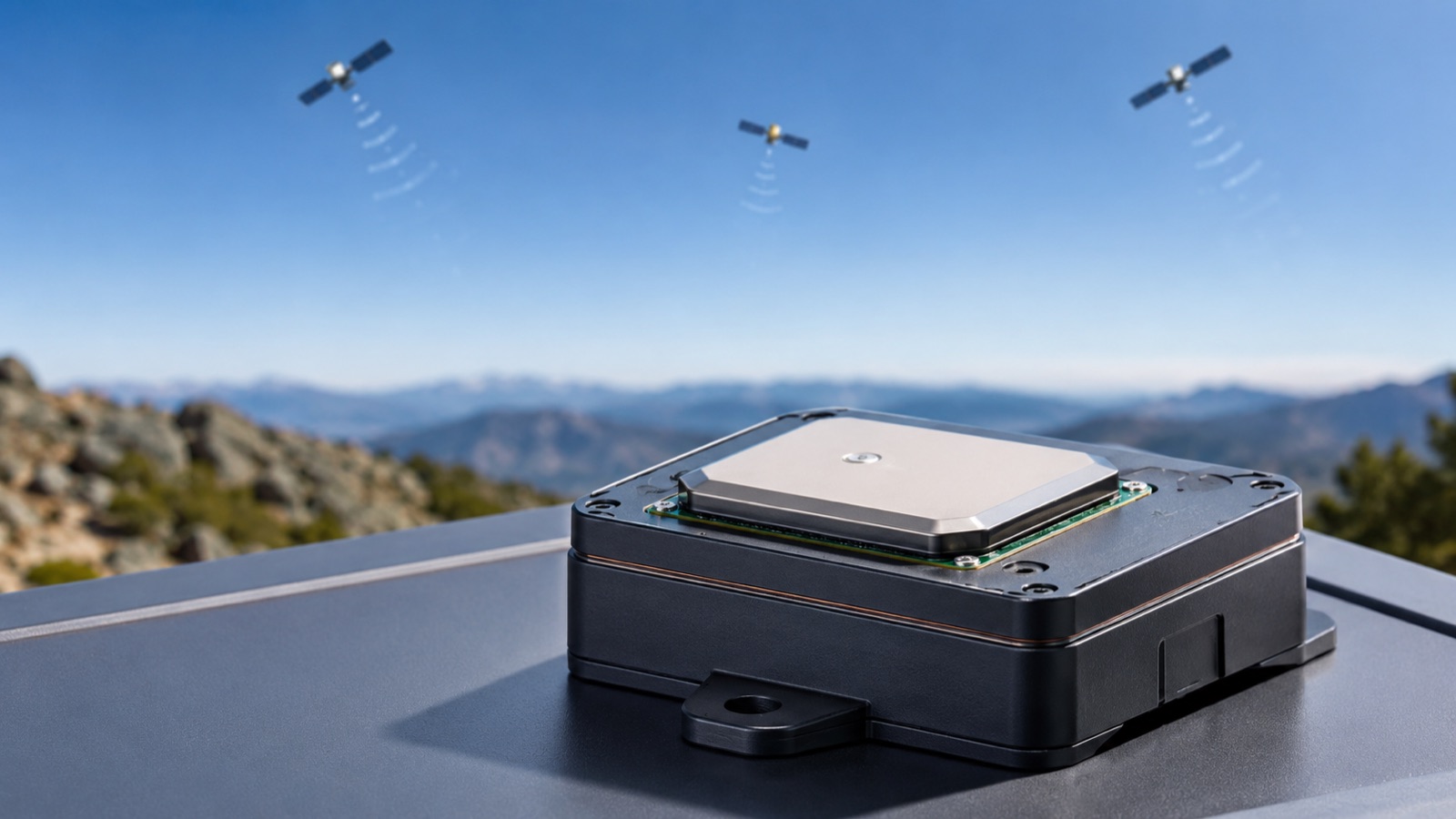

A patch antenna is usually a good fit when the product has a defined antenna orientation and needs a flat, compact, manufacturable antenna. GPS/GNSS products are common examples because a patch can face the sky and use RHCP to match satellite signals.

Good-fit applications include:

• GPS asset trackers with enough top-side clearance
• Vehicle telematics units with a controlled mounting direction
• tracking device GNSS positioning modules
• RTK and precision agriculture receivers
• Timing antennas installed in a known orientation
• Embedded products that need a compact ceramic GNSS antenna

When Not to Choose a Patch Antenna

Do not choose a patch antenna only because it is small. Orientation mismatch is the risk that gets underestimated most: the off-axis loss when a device lies face-down usually dwarfs the 1–2 dB of peak gain that selection meetings argue about. A patch may be the wrong option when:

• The device orientation is random and signal direction is unknown.
• The product needs very wide frequency coverage from one antenna.
• The antenna must sit close to metal with little clearance.
• The available ground plane is much smaller than the antenna requires.
• Omnidirectional coverage is more important than broadside gain.
• The device has no room for tuning or validation before production.

In those cases, a different antenna type or a custom integration may be safer.

GPS/GNSS Patch Antenna Trade-Offs

For GNSS products, patch antenna benefits are strong, but the engineering details matter. Use this article to decide whether a patch format fits the device. For active/passive selection, use the patch antenna selection guide. For RHCP, axial ratio, and multipath, use the RHCP vs LHCP guide.

If the product is used for RTK, tracking device, surveying, or precision agriculture, do not approve the antenna from size and gain alone. Ask for axial ratio, phase center guidance, radiation pattern, and installed test support.

Practical Selection Table

For the full topic hub, product paths, and application map, see the Patch Antennas guide.

Band Coverage and Compliance Checks

Two references are worth pulling before you lock the antenna down.

What the band actually is. The radionavigation-satellite allocations used by GNSS are 1164–1215 MHz, 1215–1300 MHz and 1559–1610 MHz (ITU Radio Regulations overview, UNOOSA). Your antenna has to cover the signals your customers use, not only the band shown on a datasheet plot.

What the receiver has to survive. In Europe, GNSS receivers fall under the harmonised standard ETSI EN 303 413, which covers equipment operating in 1164–1300 MHz and 1559–1610 MHz and defines out-of-band blocking test points (ETSI). Antenna selectivity, and any LNA inside an active patch, feed directly into those results.

Constellation planning matters too. Galileo carriers sit at E1 1575.420 MHz, E5a 1176.450 MHz, E5b 1207.140 MHz and E6 1278.750 MHz (ESA Navipedia), and GPS L5 is broadcast in a band reserved for aviation safety services (GPS.gov). If L5 or E5a is on your roadmap, decide on a stacked or multiband patch now instead of reworking the mechanics later.

FAQ

What are the advantages of a patch antenna?

The main advantages are low profile, compact size, repeatable manufacturing, directional broadside gain, and suitability for RHCP GNSS designs.

What are the disadvantages of patch antenna?

The main disadvantages are narrow bandwidth, ground-plane sensitivity, enclosure detuning, directional coverage, and possible performance loss near metal.

Is a patch antenna good for GPS?

Yes, a patch antenna is commonly used for GPS/GNSS because it can provide RHCP performance in a compact, sky-facing form.

Are patch antennas wideband?

Basic patch antennas are narrowband: a single-layer element is typically in the 2–5% fractional bandwidth range. That is enough for the 1559–1610 MHz L1 band (about 3.2%), but nowhere near the roughly 31% needed to reach L5 at 1176.45 MHz. Wider or multiband operation requires stacked patches, dual feeds, or additional resonances.

Can a patch antenna be used inside a device enclosure?

Yes, but it must be tested with the real enclosure, ground plane, cable, and nearby components because those factors can shift performance.

Conclusion

Patch antennas are practical, compact, and effective when the product layout supports them. Their limits are just as important as their benefits. Before choosing one, check bandwidth, ground plane, pattern, polarization, enclosure, and validation support.

View GPS/GNSS patch antenna options or contact our engineering team if you need help deciding whether a patch antenna is suitable for your device.
