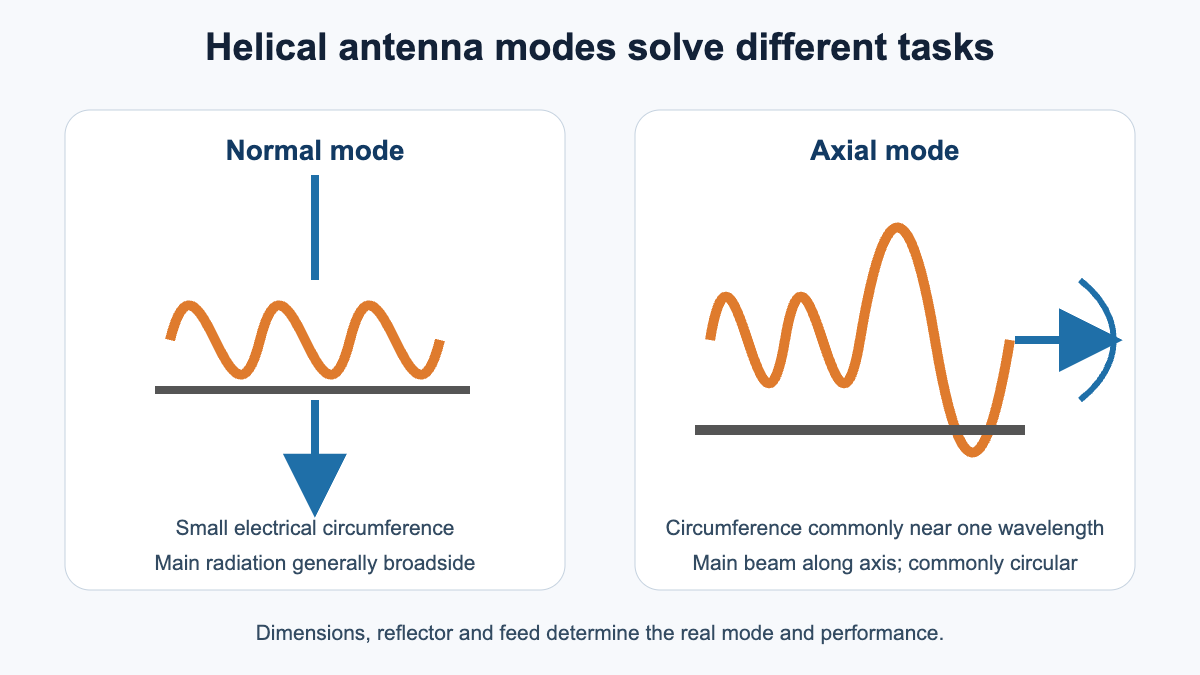

A helical antenna is a wire wound into a helix, and one decision drives everything else: which mode it runs in. A helix that is small compared with the wavelength radiates sideways. A helix whose circumference is close to one wavelength radiates a circularly polarized beam off its end.
Short answer
- Normal mode — circumference well under one wavelength. Radiation is broadside to the axis, polarization is mostly linear. Used to fit a short antenna into a small product.
- Axial mode — circumference near one wavelength (about 0.75 to 1.33 λ) with a 12° to 14° pitch angle. End-fire beam, circular polarization. Used for satellite, telemetry and other directional links.
- Gain comes from length, not from the coil shape. Roughly 9 dBi at 3 turns and 14 dBi at 10 turns, with half-power beamwidth narrowing from about 71° to 39°.
- Winding sense must match the far end. Right-hand against left-hand costs you the link, not a fraction of a dB.
Below: how to tell the two modes apart, which dimensions actually control performance, why published gain figures tend to run high, and what to specify before you buy or build one.
Normal-mode helical antenna
What counts as small
A helix is in normal mode when its circumference is much smaller than a wavelength and its pitch — the axial distance between two successive turns — is much less than a quarter wavelength. In that regime it behaves like a short monopole or dipole combined with a stack of small loops.
Radiation is strongest broadside to the helix axis: out the side, not off the tip. One field component usually dominates, so these antennas are normally treated as mostly linearly polarized, although the radiation from a small helix is strictly elliptical.
What you trade away
Coiling the conductor packs electrical length into a shorter part. The cost is bandwidth, efficiency and tuning stability. Terminal impedance depends on coil diameter, pitch, turn count and frequency all at once, so changing any one of them detunes the antenna. That is why normal-mode helixes are narrower in bandwidth than a straight monopole and are usually designed empirically rather than from a closed-form equation (Microchip AN23 antenna design notes).
This is the family behind the familiar rubber-duck whip on handheld radios, and behind many antennas in compact meters and embedded devices. Performance depends heavily on the ground reference and the enclosure around it, so spring antenna describes a shape, not a predictable RF result.
Axial-mode helical antenna
The geometry window
Axial mode appears when the helix is large enough for the fields from successive turns to reinforce along the axis. The classic Kraus design window is a circumference of roughly 0.75 to 1.33 wavelengths with a pitch angle of 12° to 14°; outside that window the pattern degrades or breaks up (axial-mode helix modelling reference). A NASA study of helix geometry reached the same conclusion, describing 12° to 14° as the optimum pitch range (NASA NTRS).
Turn count matters too. Below about 3 to 4 turns the antenna never forms a clean axial beam, and practical designs almost always sit between 6 and 16 turns (Virginia Tech, Survey of Helical Antennas).

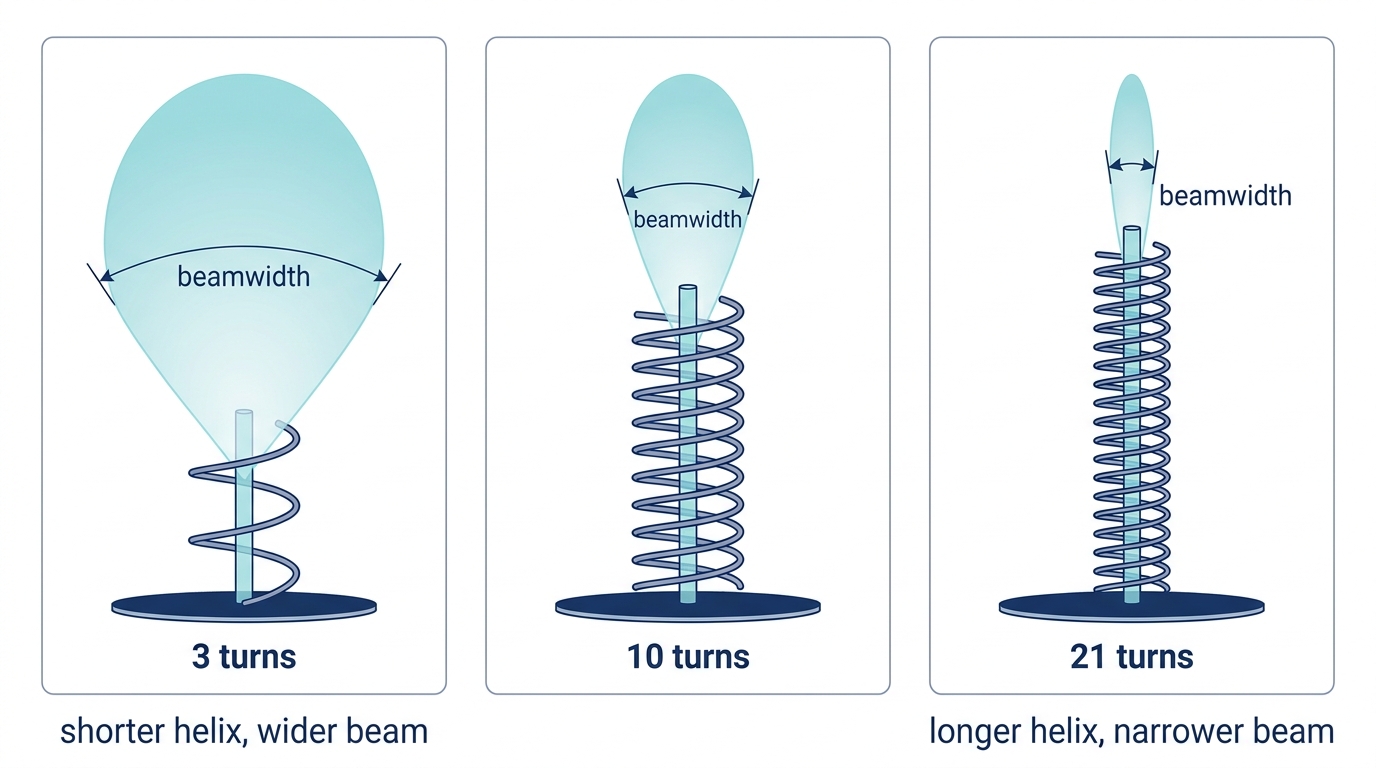

Turns buy gain, and length
Gain and beamwidth track turn count and total length. Theoretical values for axial-mode helixes published by NASA:
| Number of turns | Gain (dB) | Half-power beamwidth |
|---|---|---|
| 3 | 9.1 | 71° |
| 5 | 11.3 | 55° |
| 10 | 14.3 | 39° |
| 21 | 17.5 | 27° |
Read the pattern, not just the numbers: roughly doubling the turns adds about 3 dB and cuts the beamwidth by about a third. Going from 10 to 21 turns doubles the antenna length to buy 3.2 dB and a beam that narrows from 39° to 27° — often a poor trade once mounting, pointing accuracy and wind load are included (source: NASA NTRS, Non-Gimbaled Antenna Pointing, Table 21).
The parts people forget
A ground plane or reflector is part of the antenna, not an accessory: it shapes the current distribution and suppresses back radiation. The feed must transition from the transmission line to the helix at a workable impedance, so matching belongs to the design, not to the installation. And the winding sense sets the polarization sense of the main beam, which has to match the other end of the link. A helix scaled to a different band, or fed without its intended transition, will not reproduce the reference performance.
Normal mode vs axial mode
| Design question | Normal mode | Axial mode |
|---|---|---|
| Helix electrical size | Small relative to wavelength | Circumference commonly near a wavelength in a working design |
| Main radiation | Broadside to the helix axis | Along the helix axis |
| Typical polarization goal | Often mainly linear, geometry dependent | Commonly circular |
| Common reason to use it | Compact physical height | Directional circularly polarized link |
| Main integration concern | Ground/enclosure, efficiency and tuning | Beam direction, polarization sense, reflector and feed |
These are design regions, not labels based only on appearance. A helical wire can operate outside the intended mode if its dimensions change relative to wavelength.
Helical antenna design inputs
Operating frequency and wavelength
Every dimension is judged against wavelength, so how big it is only means something once the band is fixed. A helix designed for one band cannot be scaled casually to another without rechecking conductor size, support material, feed transition and manufacturing tolerance.
Diameter and circumference
Diameter sets circumference and strongly affects mode, impedance and pattern. In an axial-mode design, circumference is one of the first dimensions to establish.
Turn spacing and pitch angle
Spacing and pitch angle set how the phase advances from turn to turn, and they fix the mechanical length. Axial-mode designs commonly use a spacing of 0.2 to 0.25 λ; tighter spacings near 0.1 λ do appear in practice, but then more turns are needed to reach the same gain and beamwidth. Spacing also changes coupling between turns, pattern shape and input impedance.
Number of turns
Within a valid design, more turns means more directivity and a narrower beam — plus more length, and no help with feed or reflector losses. Returns diminish quickly, as the table above shows.
Ground plane, reflector and feed
The reference structure shapes current and suppresses unwanted back radiation. The feed must transition from the transmission line to the helix with suitable impedance. Matching is part of the antenna, not an afterthought.
Materials and tolerances
Conductor diameter, winding support, radome and nearby structures affect the RF result. At higher frequencies, small pitch or diameter errors can become a meaningful fraction of wavelength.
Why published helix gain figures often run high
Kraus’s empirical gain equation — the one behind almost every online helix calculator — takes this form:
gain (dBi) ≈ 11.8 + 10 · log10( (C/λ)² · N · S/λ )
It is fine for a first sizing pass. It is also optimistic. Measurements by King and Wong came out below the values the formula predicts, and a large NEC modelling campaign at NRAO covering roughly 10,000 helix geometries concluded that the gain figures quoted in much of the amateur literature, and even in some textbooks, are far too high (NRAO, The Gain of the Axial-Mode Helix Antenna; Virginia Tech, The Conventional Axial Mode Helix Antenna).
What that means in practice:
- Treat calculator output as a ceiling, not a specification. Leave margin instead of spending the last dB.
- Compare like with like: simulated directivity is not measured gain with a real feed, connector and reflector.
- Ask for measured pattern and axial-ratio data across the whole band, not one boresight number.
For reference, a published 1.3 to 2 GHz axial-mode helix design targets 13 dBi ±1.5 dB with an axial ratio below 1.5 (MathWorks helical antenna design example) — a realistic result for a moderately long helix, and well short of what a naive turn count suggests.
Polarization sense and axial ratio
Circular polarization is the main reason to choose an axial-mode helix, and it is where the avoidable mistakes happen.
The sense is decided by the far end of the link, not by preference. GPS satellites transmit right-hand circular polarization, and the L1 signal specification requires ellipticity no worse than 1.8 dB within ±13.8° of nadir (IS-GPS-800J, gps.gov). A left-hand helix pointed at that satellite is not slightly worse; it is the wrong antenna.
Axial ratio quantifies how circular the wave really is. 0 dB is perfect circular polarization, and larger values mean the polarization ellipse is flattening toward linear. Since the axial ratio at both ends sets the polarization mismatch loss, it belongs in the link budget rather than in a footnote; ITU-R documents the relationship between axial ratio, cross-polarization isolation and polarization loss (ITU-R F.1245-2). As an engineering estimate, a perfectly circular antenna working against a perfectly linear one gives up about 3 dB from geometry alone — one reason circular polarization is preferred when the far end can rotate or tumble.
What to specify before selecting a helical antenna
- transmit and receive frequency range;
- desired normal- or axial-mode behavior;
- main-beam direction and allowable beamwidth;
- linear or circular polarization and required sense;
- gain, efficiency or link-budget target;
- maximum diameter, length and weight;
- ground plane or reflector constraints;
- connector, cable and feed arrangement;
- mounting, radome and environment;
- prototype and measurement plan.
Applications and limits
Normal-mode helixes can fit compact radios and embedded devices. Axial-mode helixes can serve satellite links, telemetry, navigation experiments and other directional circular-polarization tasks. Suitability still depends on the frequency plan, link budget and mechanical installation.
