Patch antenna bandwidth tells you how much frequency range the antenna can cover while still meeting a defined performance requirement. The phrase sounds simple, but engineers use it in several different ways: impedance bandwidth, gain bandwidth, efficiency bandwidth, and, for circularly polarized antennas, axial ratio bandwidth.
For GPS, GNSS, LTE, 4G, 5G, and other embedded devices, patch antenna bandwidth should be checked against the exact RF requirement. A GPS L1-only antenna does not need the same bandwidth as an L1/L2/L5 GNSS antenna, and a return-loss bandwidth number alone does not prove that polarization quality or gain stays acceptable across the band.
Quick Answer: What Is Patch Antenna Bandwidth?
Patch antenna bandwidth is the frequency range where the antenna meets a chosen performance limit, such as VSWR, S11, gain flatness, efficiency, or axial ratio. A basic single-layer patch is usually narrowband, so bandwidth must be matched carefully to the application.
The Four Bandwidths Buyers Should Check
| Bandwidth type | What it measures | Why it matters |
|---|---|---|
| Impedance bandwidth | Frequency range where matching is acceptable, often by VSWR or S11 | Shows whether the antenna accepts energy from the RF port |
| Gain bandwidth | Frequency range where gain stays within a target limit | Important when coverage cannot drop at band edges |
| Efficiency bandwidth | Frequency range where radiation efficiency remains acceptable | Helps avoid a matched but lossy antenna |
| Axial ratio bandwidth | Frequency range where circular polarization quality remains acceptable | Critical for RHCP GNSS patch antennas |
Why Patch Antennas Are Often Narrowband

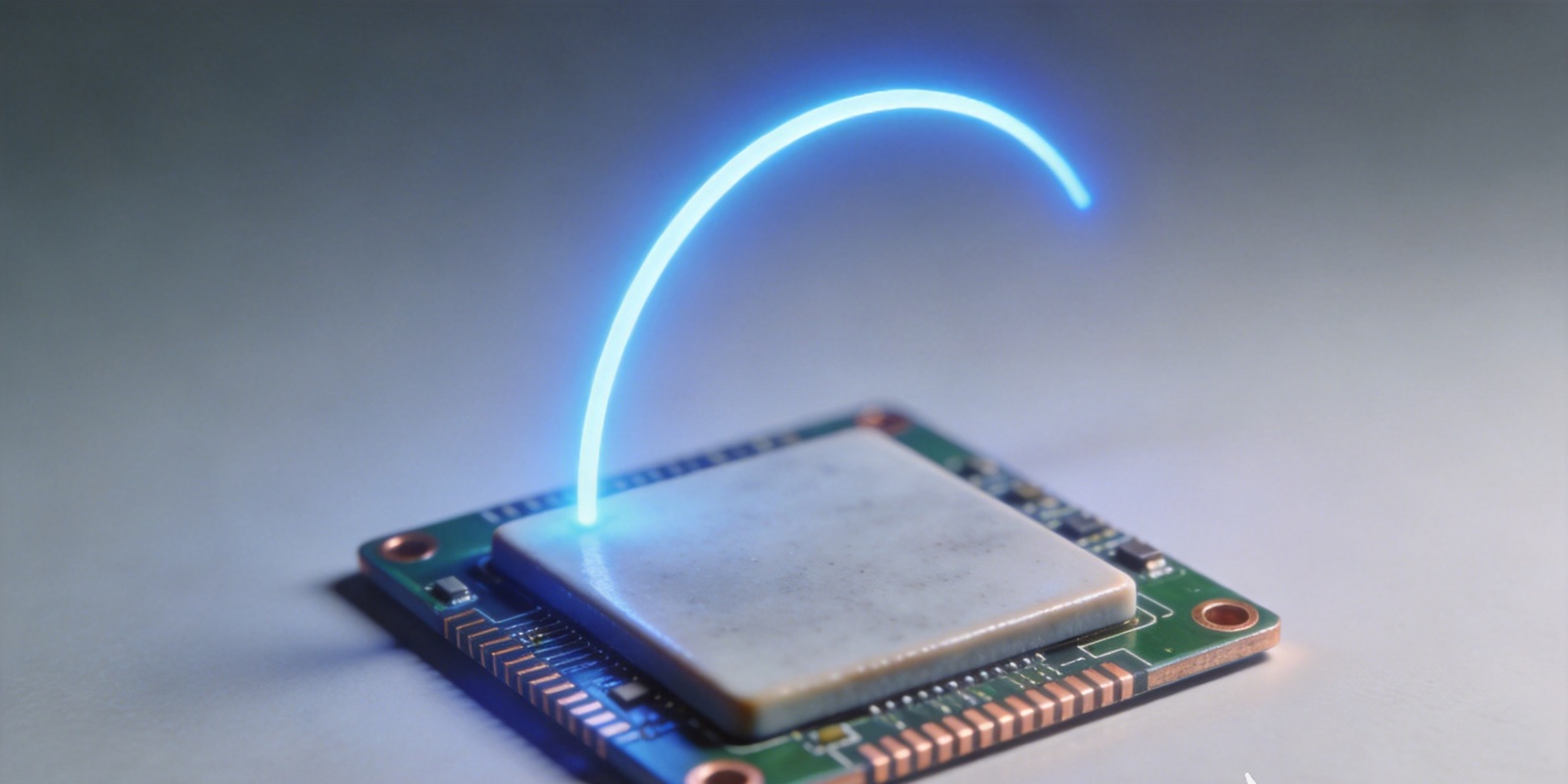

A patch antenna is a resonant structure. Its size, substrate, feed, and ground plane are tuned around a target frequency. That is useful when the product needs a compact, low-profile antenna, but it also means bandwidth is limited compared with some other antenna types.
In practical product selection, narrow bandwidth is not automatically bad. A GPS L1 patch antenna can work well when it is tuned correctly for the receiver and installation. Problems start when the antenna is expected to cover too many bands, or when the enclosure shifts the resonance outside the useful range.
Patch Antenna Bandwidth Formula: What It Can and Cannot Tell You
Design formulas can estimate resonant dimensions and give a first approximation of bandwidth trends. They are useful during early design, especially for rectangular microstrip patches. But a bandwidth formula cannot replace simulation and measurement because real performance depends on dielectric tolerance, feed structure, soldering, enclosure, ground plane, and nearby components.
Use formulas to start the design. Use measured S11, VSWR, gain, efficiency, and axial ratio to approve it.
Bandwidth Enhancement Options
| Method | How it helps | Trade-off |
|---|---|---|
| Thicker or lower-permittivity substrate | Can widen impedance bandwidth | May increase size or surface wave issues |

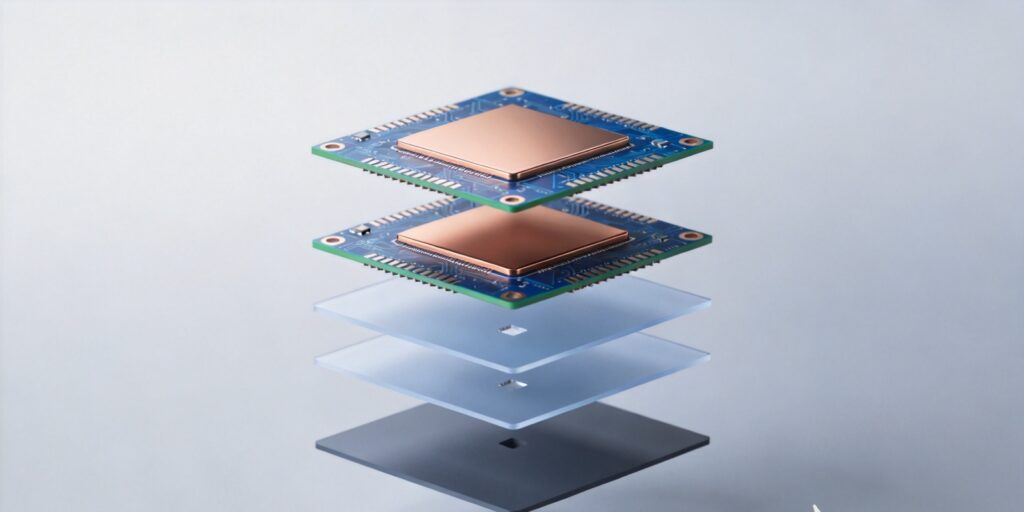

| Stacked patch | Adds resonances for wider or multiband response | More height, cost, and tuning complexity |
| Slots or notches | Creates additional current paths | Pattern and polarization may change |
| Parasitic elements | Adds coupled resonant behavior | Requires careful spacing and validation |
| Aperture or proximity feed | Can improve bandwidth and reduce feed problems | More complex PCB or mechanical stack |
| Active front end | Compensates downstream loss in receive systems | Does not widen the radiating element by itself |
GPS and GNSS Patch Antenna Bandwidth
For GNSS products, bandwidth should be mapped to the constellation and frequency plan. If you are still choosing the antenna family, read how to choose a patch antenna before narrowing the bandwidth requirement.
- GPS L1-only products need stable performance around the L1 band.
- Multi-constellation L1 products may need coverage for GPS, Galileo, GLONASS, BeiDou, QZSS, or other L1-region signals.
- High-precision receivers may use L1/L2/L5 or other multiband combinations.
- RHCP antennas also need acceptable axial ratio bandwidth, not only return loss bandwidth.
If an antenna is sold as multiband, ask whether each band has measured gain, efficiency, axial ratio, and pattern data. For RHCP-specific requirements, keep the deeper axial-ratio discussion on the RHCP vs LHCP patch antenna page. A wide return loss curve alone is not enough.
Installed Bandwidth vs Datasheet Bandwidth
The bandwidth in a datasheet is normally measured under a defined condition. The installed bandwidth in your product can shift because of:
- PCB ground plane size
- Plastic enclosure thickness and dielectric loading
- Battery and display placement
- Metal shielding or mounting frame
- Cable routing and connector transition
- Nearby cellular or high-speed digital circuits

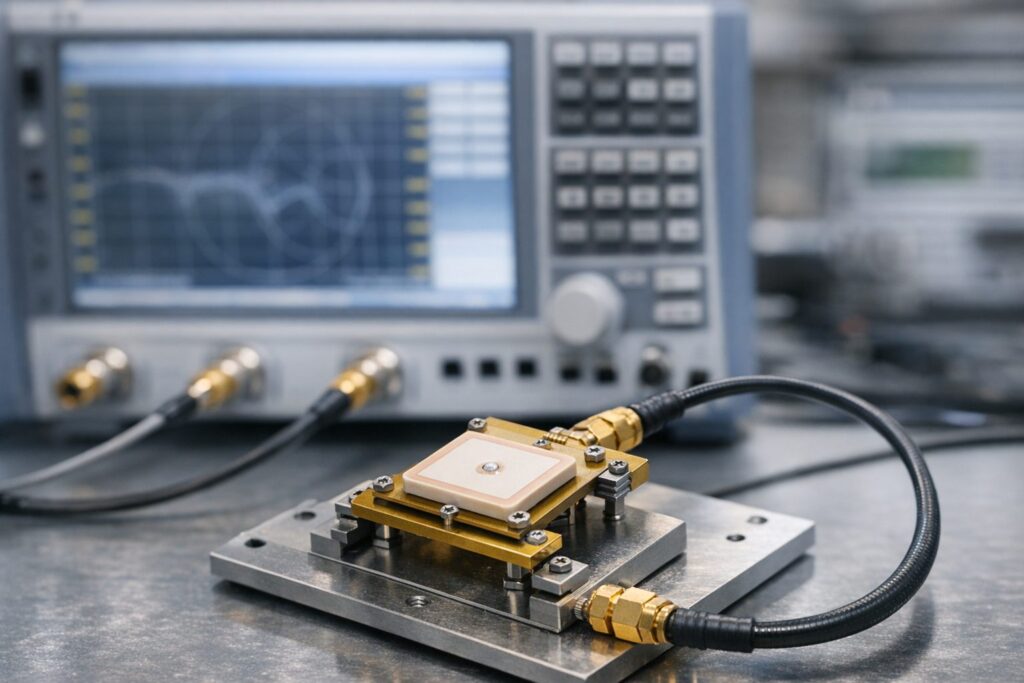

For this reason, a production antenna should be checked in the final device layout. If the design is close to the edge of the band in a lab fixture, it may fail after assembly tolerance and enclosure effects are included.
Common Mistakes in Bandwidth Selection
-
Using only VSWR to approve a GNSS antenna. For RHCP GNSS, also review axial ratio and RHCP gain.
-
Choosing the smallest patch without checking margin. Smaller antennas can be attractive mechanically, but bandwidth and efficiency may suffer.
-
Assuming active means wideband. An LNA can improve received signal level after the antenna, but it does not fix a mistuned radiator.
-
Ignoring band-edge performance. A center-frequency match is not enough if the receiver uses multiple signals.
-
Copying a reference design into a different ground plane. The antenna may need retuning in the real device.
For the full topic hub, product paths, and application map, see the Patch Antennas guide.
FAQ
What is patch antenna bandwidth?
Patch antenna bandwidth is the frequency span where the antenna meets a defined limit, such as return loss, VSWR, gain, efficiency, or axial ratio.
Why are patch antennas narrowband?
Patch antennas are resonant structures. Their compact, low-profile form comes with limited bandwidth unless additional design techniques are used.
How can patch antenna bandwidth be increased?
Bandwidth can be increased with substrate changes, stacked patches, slots, parasitic elements, aperture coupling, or other tuned structures, but each method adds trade-offs. Treat bandwidth enhancement as a measured design change, not a generic upgrade, because gain, axial ratio, height, and cost can move in the wrong direction.
Is VSWR bandwidth enough for GPS antenna selection?
No. VSWR bandwidth shows matching, but GPS and GNSS applications also need RHCP gain, axial ratio, and pattern performance.
Do multiband GNSS patch antennas need stacked designs?
Often yes, especially when L1/L2/L5 coverage is required in a compact ceramic form. The exact structure depends on size, performance, and cost targets.
Conclusion
Patch antenna bandwidth should be defined before the antenna is chosen. Decide whether you need impedance bandwidth, gain bandwidth, efficiency bandwidth, axial ratio bandwidth, or all of them. Then verify the antenna in the final product layout.
For GPS/GNSS devices, ask for measured data across your required bands and contact our engineering team if you need help comparing single-band and multiband GPS patch antenna options.
