Patch Antenna Gain Explained: Coverage and Range Factors

Patch antenna gain tells you how strongly a patch concentrates energy in one direction after its own losses are counted. It does not create RF power, and on its own it does not tell you the range your product will get.

Short answer: Gain only helps in the directions where the antenna actually has gain. Judge a patch by four things together, never by one number: peak gain plus the ground plane it was measured on, the pattern across the angles your device really uses, efficiency, and axial ratio if the signal is circularly polarized. If the device tilts, rotates, or sits behind metal, a stable pattern beats a bigger peak-gain figure.

If you are deciding between a 25 mm and an 18 mm GPS patch, or trying to explain why a “5 dBi” antenna underperformed inside your enclosure, the sections below give the judging criteria: what the number means, what changes it in your product, and which datasheet lines actually decide the outcome.

What Patch Antenna Gain Actually Means

Gain combines two ideas:

• Directivity — how tightly the antenna focuses energy in one direction.
• Efficiency — how much of the energy that reaches the antenna is radiated instead of lost as heat in the metal, the ceramic, or the PCB.

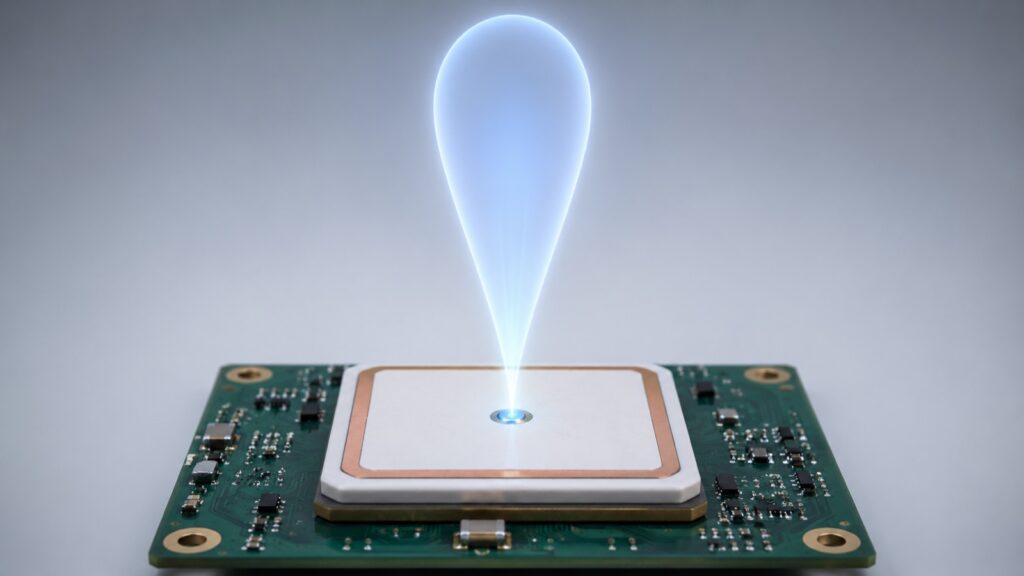

In most patch antennas the maximum gain sits near broadside, the direction perpendicular to the patch surface. For a GNSS patch mounted flat, broadside points at the sky.

The units matter as much as the number:

One more distinction decides whether a number describes the element or the installed antenna: IEEE’s antenna definitions separate plain gain from realized gain, which is gain reduced by the impedance mismatch factor (IEEE Std 145). Realized gain is closer to what your device sees, and it is always the lower of the two.

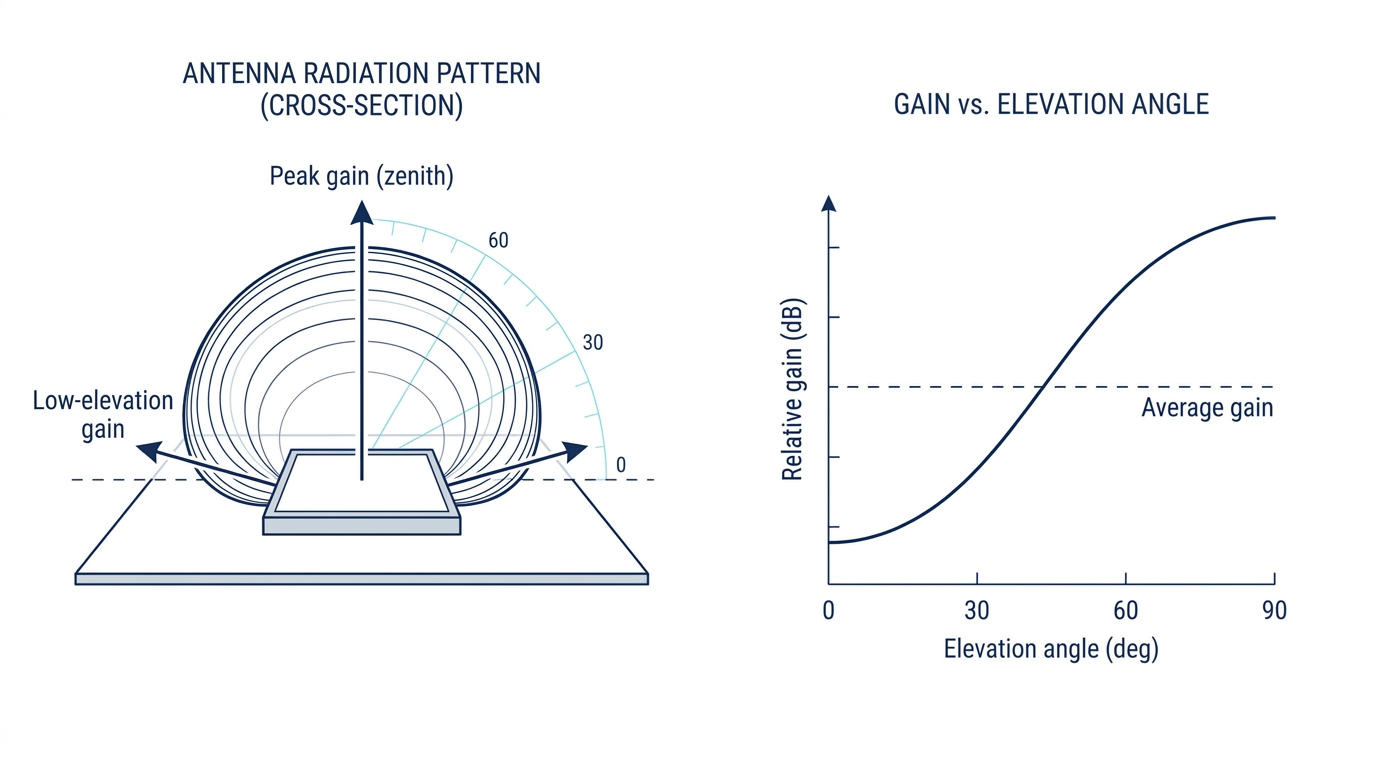

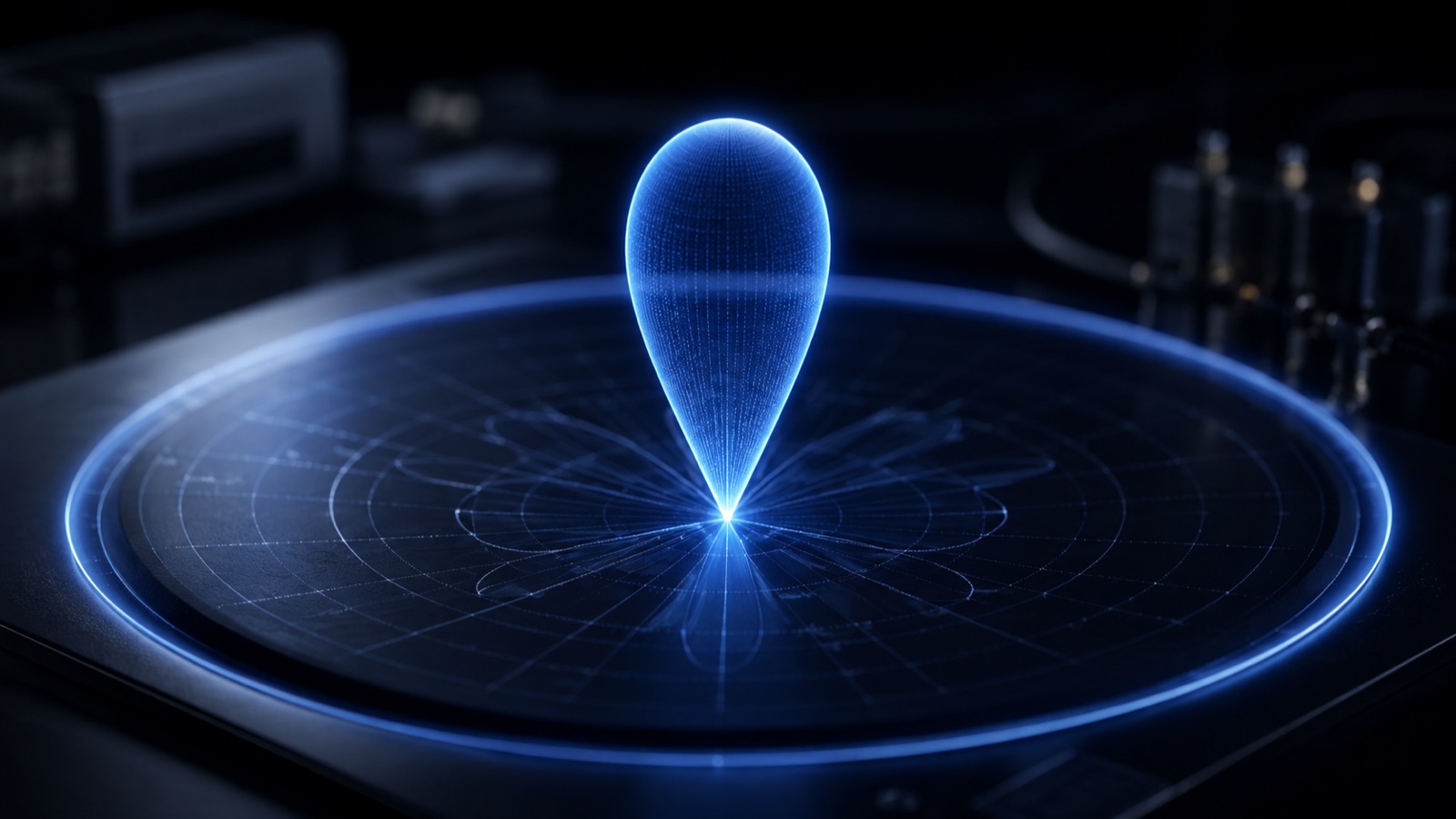

Peak Gain vs Average Gain: The Line Datasheets Skip

Peak gain is a single point in the pattern. Average gain is the gain averaged over a region of angles. Both can be true at once, and they can disagree by many dB.

This is where most selection mistakes happen. A compact ceramic GNSS patch can be specified with a positive peak gain in dBic and, on the same page, an average gain that is negative — meaning that across most of the sky the antenna is losing signal relative to an isotropic reference, even though the headline number looks fine. Marketing quotes the peak. Your device lives on the average.

Use this rule when you compare:

• Fixed orientation, signal from one direction → peak gain is meaningful.
• Random or changing orientation → average gain and the low-elevation part of the pattern decide performance.
• GNSS → satellites spend most of their visible time away from zenith, so gain at 10°–30° elevation often matters more than the zenith figure.

Gain, Directivity, Efficiency: Reading the Terms

How Much Gain Can a Patch Realistically Have?

A plain rectangular microstrip patch radiates a linearly polarized wave with roughly 6–7 dBi at broadside, and modified single-element designs reach about 10 dBi (MathWorks antenna documentation). Beyond that you are no longer buying a single patch: you are buying aperture. Published array work at 24 GHz shows a 4 × 1 patch array at roughly 11 dBi, needing added metallic structures to climb about 7 dB higher (MDPI Electronics).

Embedded GNSS ceramic patches sit far below those figures, because they are small on purpose. Published industry data for GPS L1 patches on a 100 mm ground plane shows gain at zenith dropping sharply as the ceramic shrinks below 25 mm square, with bandwidth narrowing at the same time (GPS World). Across current supplier datasheets, 25 mm L1 patches are typically specified on a 70 × 70 mm test ground plane with peak gain in the low single digits of dBic and radiation efficiency roughly in the 40–80% band; 18 mm and 15 mm parts step down from there.

Practical consequence: 25 × 25 mm, 18 × 18 mm, and 15 × 15 mm patches are not interchangeable. Swapping to a smaller part to save board space is a gain and bandwidth decision, not a mechanical one.

What Changes Patch Antenna Gain in Your Product

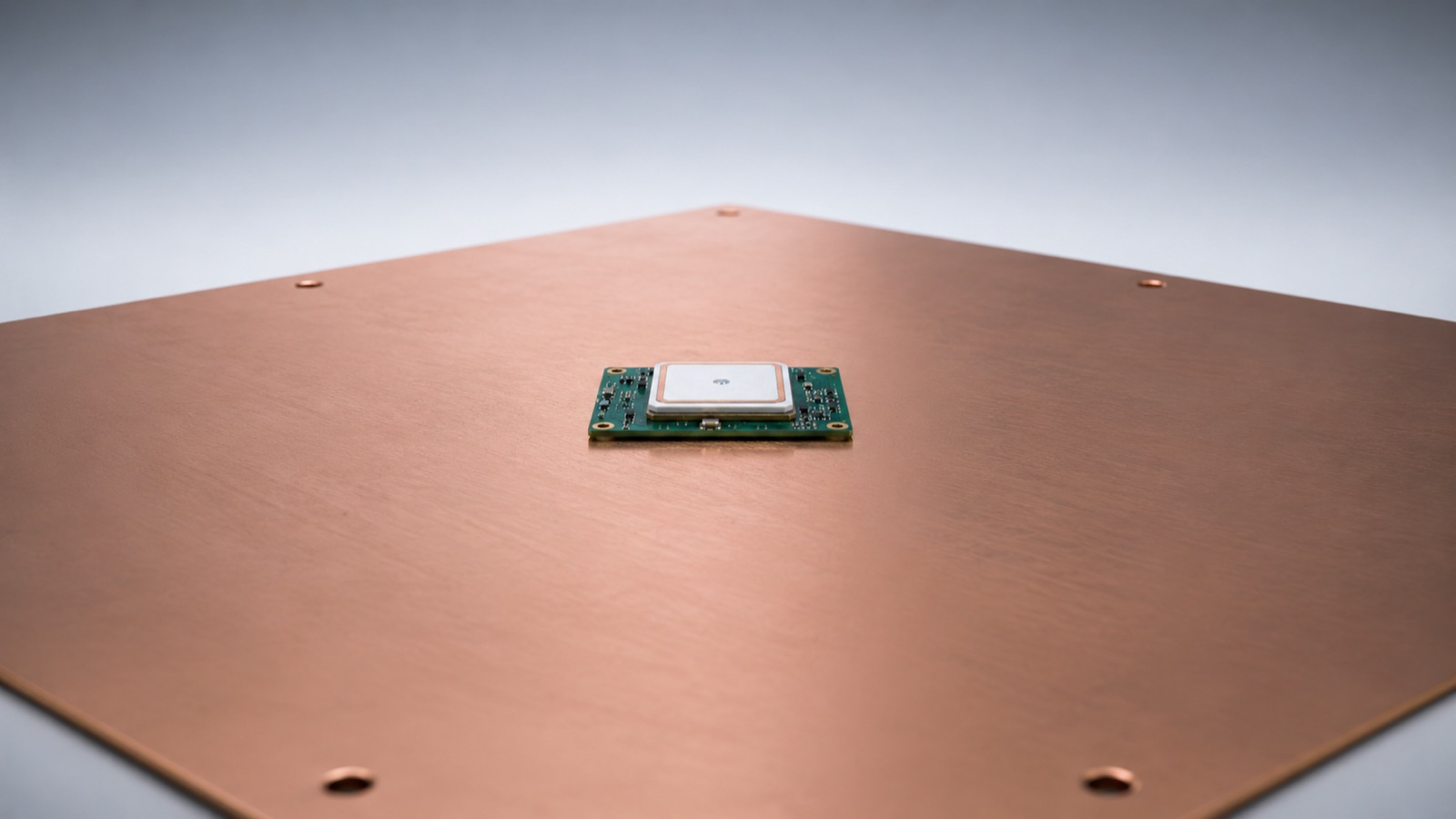

Ground plane size

The ground plane is part of the antenna. Too small or irregular, and you lose front-to-back ratio, distort the beam, and shift performance away from the datasheet condition. Because nearly all GNSS patch datasheets are measured on a clean 70 × 70 mm plane, a 40 mm plane in a real product is a different antenna — not a slightly worse one.

Substrate and material loss

Ceramic and PCB dielectrics differ in dielectric constant, thickness, and loss. A material choice that shrinks the antenna usually costs efficiency, bandwidth, or both.

Patch size and frequency

At a fixed frequency, a larger effective aperture supports higher directivity. Compact antennas trade gain for size — that trade is physics, not a supplier weakness.

Impedance match

Energy that is reflected is never received. Check S11 or VSWR across your actual operating band, in your enclosure, not only at the nominal center frequency.

Enclosure and radome detuning

Plastic close to the ceramic shifts the resonant frequency. If the resonance moves off band, gain at your frequency falls even though the element itself did not change. This is the most common reason a qualified antenna fails in the first mechanical prototype.

Cable and connector loss

Cable loss does not change element gain, but it does change what reaches the receiver. Thin coax typical of embedded builds loses roughly 1 dB per meter around 1.5 GHz, so a 300 mm pigtail is a real budget item — see RG174 vs RG316 loss by frequency for the comparison.

Polarization match

GNSS signals are right-hand circularly polarized. Receiving a circular signal with a linear antenna costs about 3 dB in the ideal case (ITU-R F.1245), and a poor axial ratio eats into the RHCP gain you paid for. For the polarization decision itself, use the RHCP vs LHCP patch antenna guide.

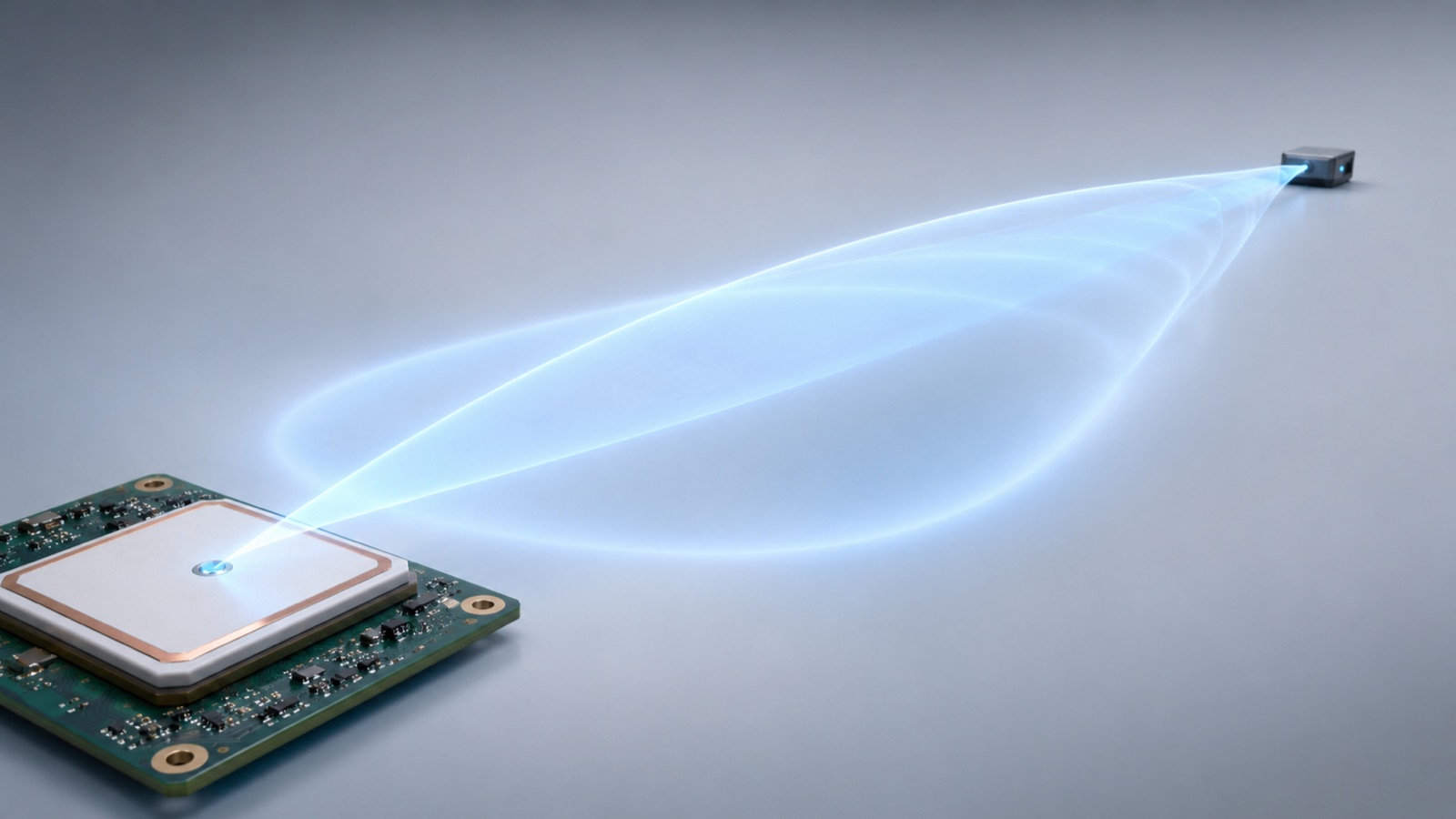

Patch Antenna Range: Where Gain Sits in the Budget

Range comes from the whole link, not from the antenna alone. For a transmit link you need transmit power, receiver sensitivity, path loss, gain at both ends, polarization match, obstruction, and the regulatory limit.

You can estimate the dominant term yourself. Free-space loss follows the ITU method (Recommendation ITU-R P.525):

FSPL (dB) = 32.4 + 20 log10(f in MHz) + 20 log10(d in km)

Two things fall out of that formula:

• Because loss rises with 20 log of distance, 6 dB of extra link gain doubles free-space range — and 6 dB is a lot to find in a small patch.
• Gain is only one of several 6 dB-sized levers. Receiver sensitivity, cable routing, and mounting height move the same amount.

Regulation caps the trick as well. In the US 2.4 GHz band, digitally modulated systems are limited to 1 W conducted output, and if the directional antenna gain exceeds 6 dBi the conducted power must be reduced by the excess — with a relaxed 1 dB reduction per 3 dB of gain for fixed point-to-point links (47 CFR §15.247). Above that threshold, extra gain buys you a narrower beam, not more radiated power.

The GNSS case is different, and the numbers prove it

A GNSS patch receives; it does not transmit. Put the official figures side by side:

• GPS satellites orbit at about 20,200 km (GPS.gov).
• Free-space loss at L1 (1575.42 MHz) over that distance is about 182 dB by the formula above — an engineering estimate, not a measured value.
• The interface specification guarantees a minimum received L1 C/A power of −158.5 dBW at the Earth’s surface for GPS III satellites (IS-GPS-200).
• That guarantee is defined against a modest reference antenna. The GPS performance standard states the minimum power level applies to a representative receiver with a 3 dBi linearly polarized antenna above a 5° mask angle (SPS Performance Standard, GPS.gov).

Read that last point carefully, because it reframes the whole gain question. The system was dimensioned for a 3 dBi linear antenna working down to 5° elevation. A high-zenith-gain patch that collapses at low elevation is working against the assumption the specification was built on. What decides GNSS performance is carrier-to-noise density at the receiver — driven by sky visibility, low-elevation pattern, polarization quality, noise figure, and multipath rejection — not the peak gain line.

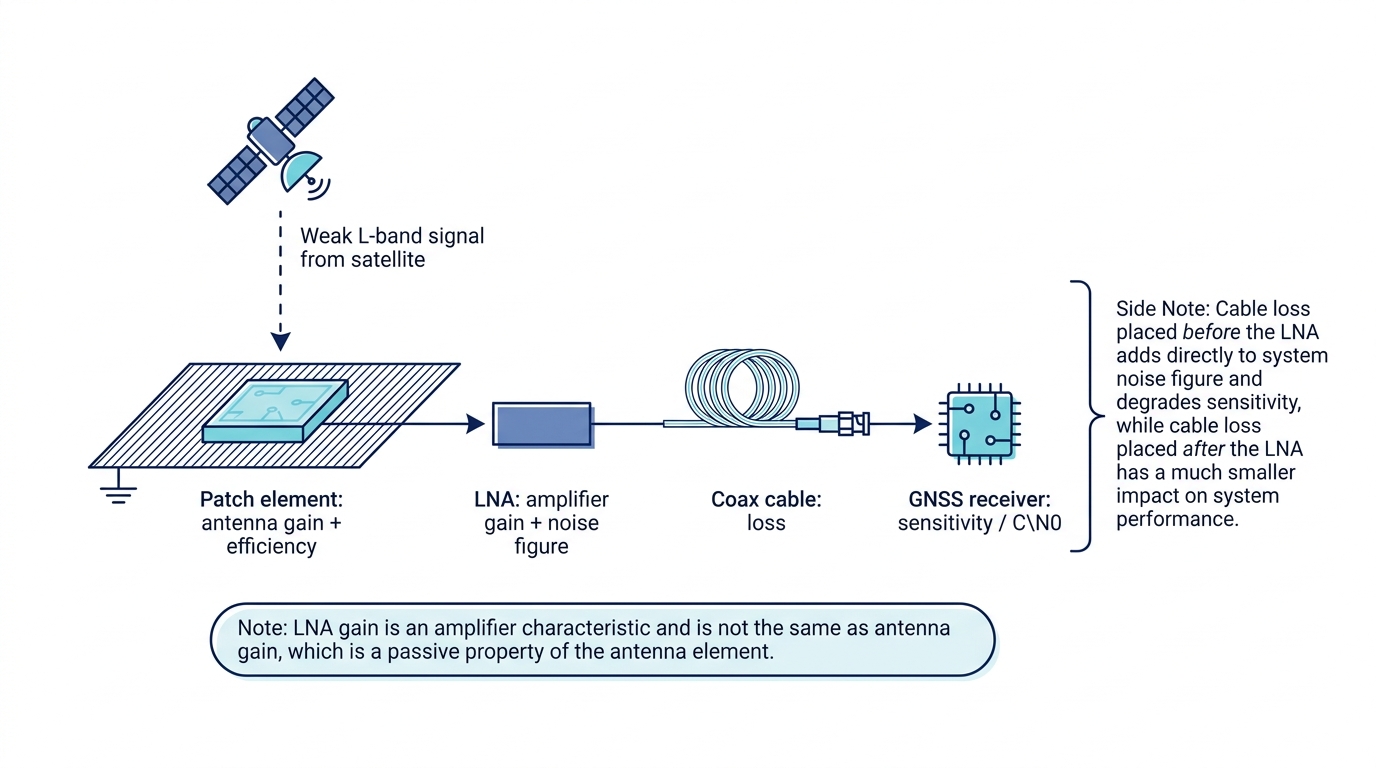

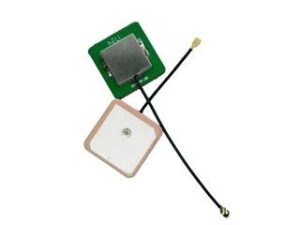

Active Antennas: LNA Gain Is Not Antenna Gain

An active GNSS antenna packages a patch element with a low-noise amplifier. Datasheets often show both, and the LNA number is much larger — 25 to 35 dB is common. That number says nothing about how well the element captures the signal.

What matters in the chain:

• Loss before the LNA — connector and cable loss ahead of the amplifier adds almost directly to system noise figure and costs sensitivity.
• Loss after the LNA — far less damaging, which is why the amplifier sits at the antenna end.
• LNA noise figure — a 30 dB amplifier with a poor noise figure is worse than a 25 dB amplifier with a good one.
• Out-of-band rejection — high LNA gain with weak filtering amplifies interference along with the signal.

When you compare two active antennas, compare element gain, element efficiency, LNA noise figure, and filtering separately. Total “system gain” figures combine all of them and hide which part is weak.

How to Compare Patch Antenna Gain in Datasheets

A practical habit: write the test conditions into your comparison table before the gain values. Two antennas quoted on different ground planes are two different measurements, and ranking them by dBi alone is guesswork.

When Higher Gain Helps — and When It Does Not

Higher gain earns its place when:

• The device orientation is fixed and known.
• The useful signal arrives inside the main coverage direction.
• Examples: fixed GNSS timing units, rooftop antennas, base stations, precision positioning installations.

Higher gain disappoints when:

• Orientation is random or the product is handheld.
• Metal, a display, or a battery shadows the antenna.
• The ground plane is smaller than the datasheet fixture.
• The link is already limited by noise, obstruction, or a regulatory EIRP cap.

If mounting and orientation are still open, start from the patch antenna radiation pattern guide and pick the pattern first, the gain number second.

Supplier Questions Before You Approve a Gain Spec

1. What ground plane size and shape were used for the gain measurement?
2. Is the figure peak gain, average gain, or realized gain?
3. Was it measured in free space or in a representative enclosure?
4. For GNSS, what are the RHCP gain and axial ratio at 10°, 30°, and zenith?
5. Does the active antenna figure include LNA gain, and what is the noise figure?
6. Can you supply measured radiation pattern data, not just a summary table?
7. What retuning is available if our enclosure shifts the resonance?

For the full topic hub, product paths, and application map, see the Patch Antennas guide.

FAQ

What is a good patch antenna gain?

It depends on application, frequency, size, and orientation. A plain rectangular microstrip patch lands around 6–7 dBi; embedded GNSS ceramic patches are far lower by design. For GNSS, stable RHCP gain across useful sky angles beats a high broadside number.

Does higher patch antenna gain mean longer range?

Not on its own. Range depends on the whole link: pattern, receiver sensitivity, cable loss, polarization, mounting, obstruction, and regulatory limits. In free space it takes about 6 dB of extra link gain to double distance.

Is LNA gain the same as antenna gain?

No. LNA gain amplifies the signal after the antenna captures it. Antenna gain describes how well the element radiates or receives, including its losses.

What is the difference between dBi, dBd, and dBic?

dBi references an ideal isotropic radiator. dBd references a half-wave dipole and reads 2.15 dB lower for the same antenna. dBic references an isotropic radiator with circular polarization and is the honest unit for GNSS RHCP patches.

How do you increase the gain of a patch antenna?

Add effective aperture: a larger patch, a proper ground plane, an array, a stacked element, or a superstrate. Lower-loss substrate and a better impedance match recover efficiency. There is no way to raise gain without paying in size, bandwidth, beamwidth, or cost.

Why does the same patch antenna show different gain in different devices?

Ground plane size, enclosure material, nearby components, cable routing, and mounting position all change the installed pattern and efficiency. The element is the same; the antenna system is not.

Should I choose the patch antenna with the highest peak gain?

Only if its pattern, bandwidth, polarization, and test conditions match your device. For mobile products, a balanced pattern with good average gain is usually the better buy.

Conclusion

Gain is a useful number once you read it with its conditions. Ask for the test ground plane, the pattern, the efficiency, the axial ratio, and the split between element gain and LNA gain. For GPS/GNSS and industrial wireless devices, the antenna that wins is the one measured closest to your real product, not the one with the biggest figure on the front page.

View GPS patch antenna options or request measured antenna data if you want help comparing element gain, LNA gain, and installed performance.
