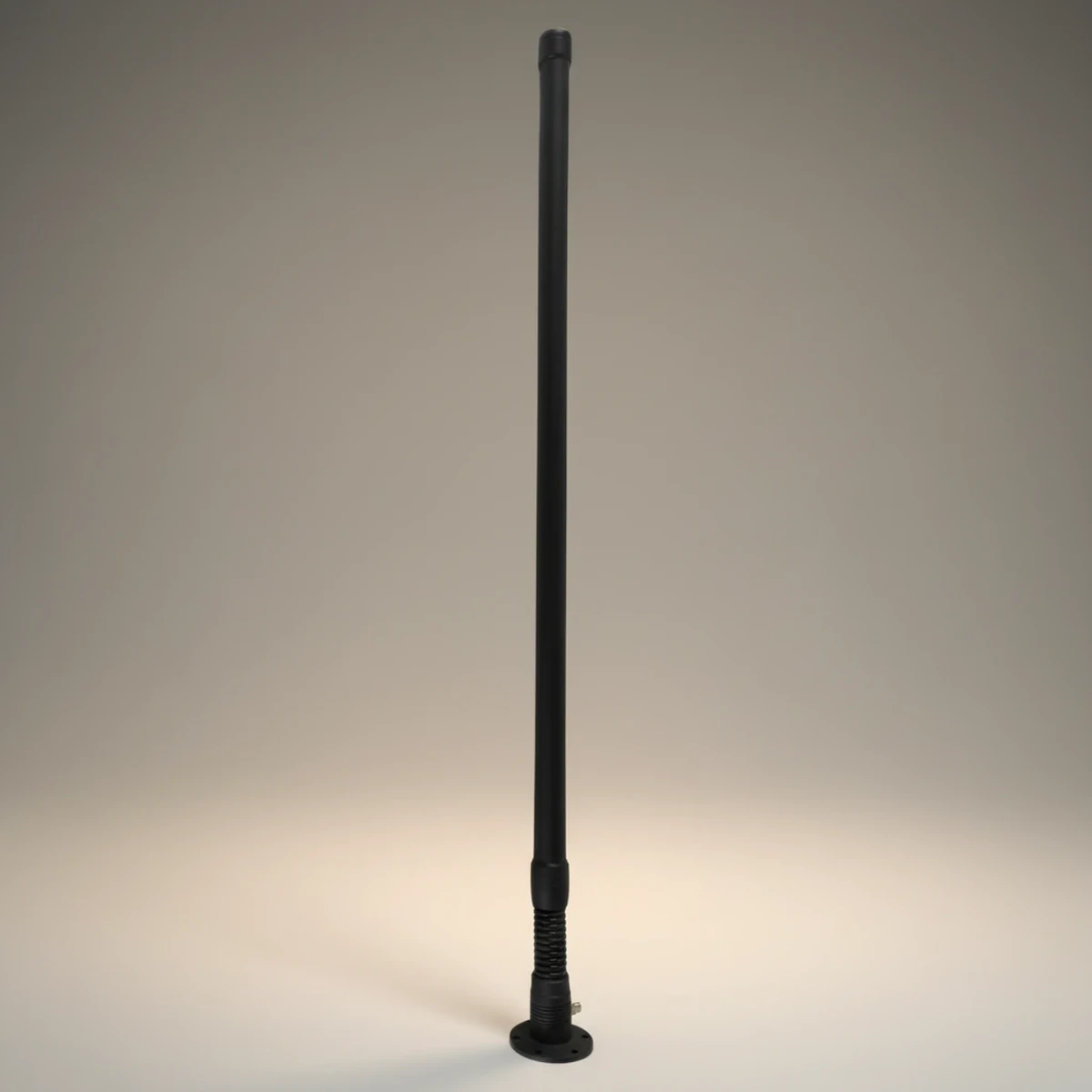

GL4503 430-450MHz Spring FRP Anti-Jamming Antenna main product image

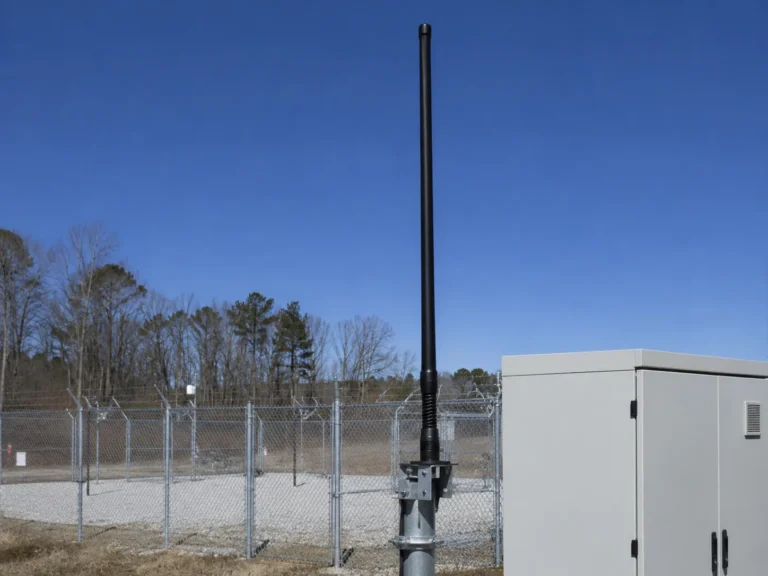

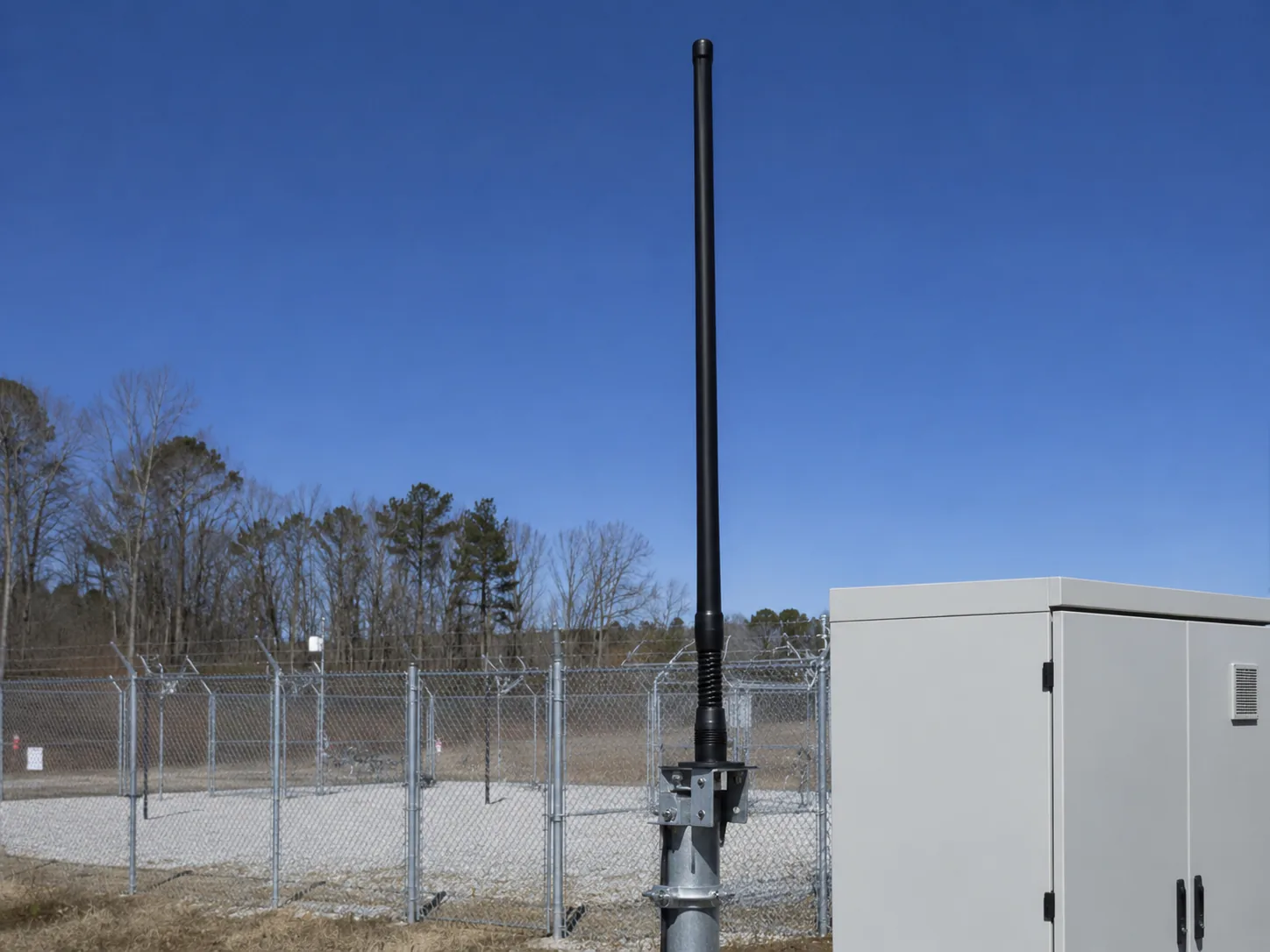

GL4503 430-450MHz Spring FRP Anti-Jamming Antenna application scene 1

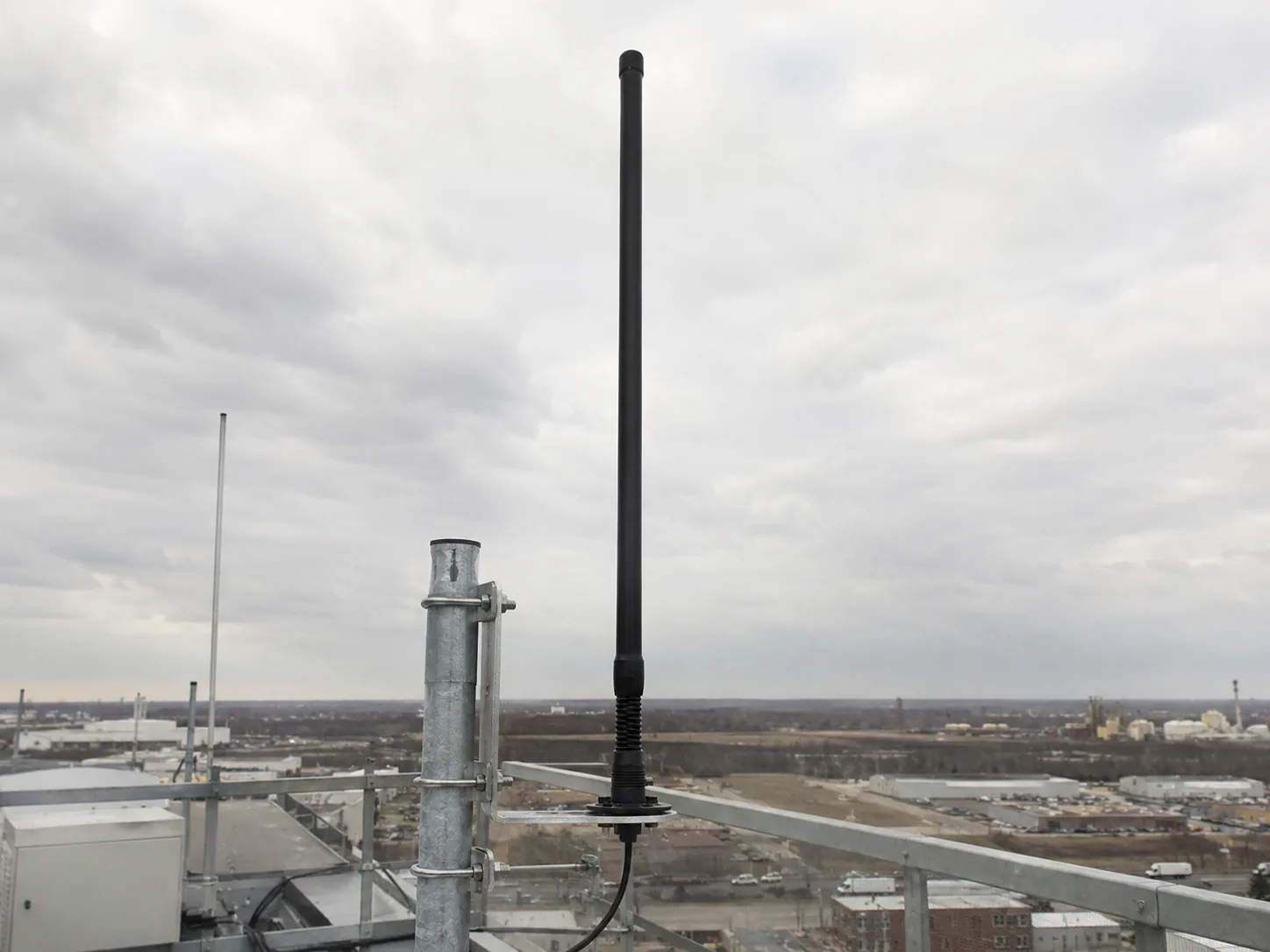

GL4503 430-450MHz Spring FRP Anti-Jamming Antenna application scene 2

RF Product Anti-Jamming Antenna & RF Monitoring Antenna

GL4503 430-450 MHz Spring FRP Anti-Jamming Antenna

Name: GL4503 430-450 MHz Spring FRP Anti-Jamming Antenna
Brand: Global RF Tech
SKU: GL4503

SKU GL4503

GL4503 is a 430-450MHz Spring FRP Anti-Jamming Antenna for RF systems, IoT devices, gateways and custom wireless projects. Its RF data lists 430-450 MHz MHz operation, vertical polarization, and VSWR ≤2.0. Mechanical selection should confirm N-Male connector, 32 x 720 mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL4503

Frequency 430-450 MHz

Dimensions 32 x 720 mm

polarization Vertical

vswr ≤2.0

connector N-Male

Request Quote Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL4503
Frequency	430-450 MHz
Dimensions	32 x 720 mm
polarization	Vertical
vswr	≤2.0
connector	N-Male
temperature	-40°c～60°c
Category	Anti-Jamming Antenna & RF Monitoring Antenna

Product Overview

Key Features

Technical Specifications

VSWR	≤2.0
Horizontal Beamwidth	360°
Vertical Beamwidth	55°
Polarization	Vertical
Maximum Input Power	50W
Lightning Protection	DC Ground
Connector Type	N-Male
Radome Material	Fiberglass
Radome Color	Black
Operating Temperature	-40°c～60°c

Application Scenarios

GL4503 is suitable for RF systems, IoT devices, gateways and custom wireless projects. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

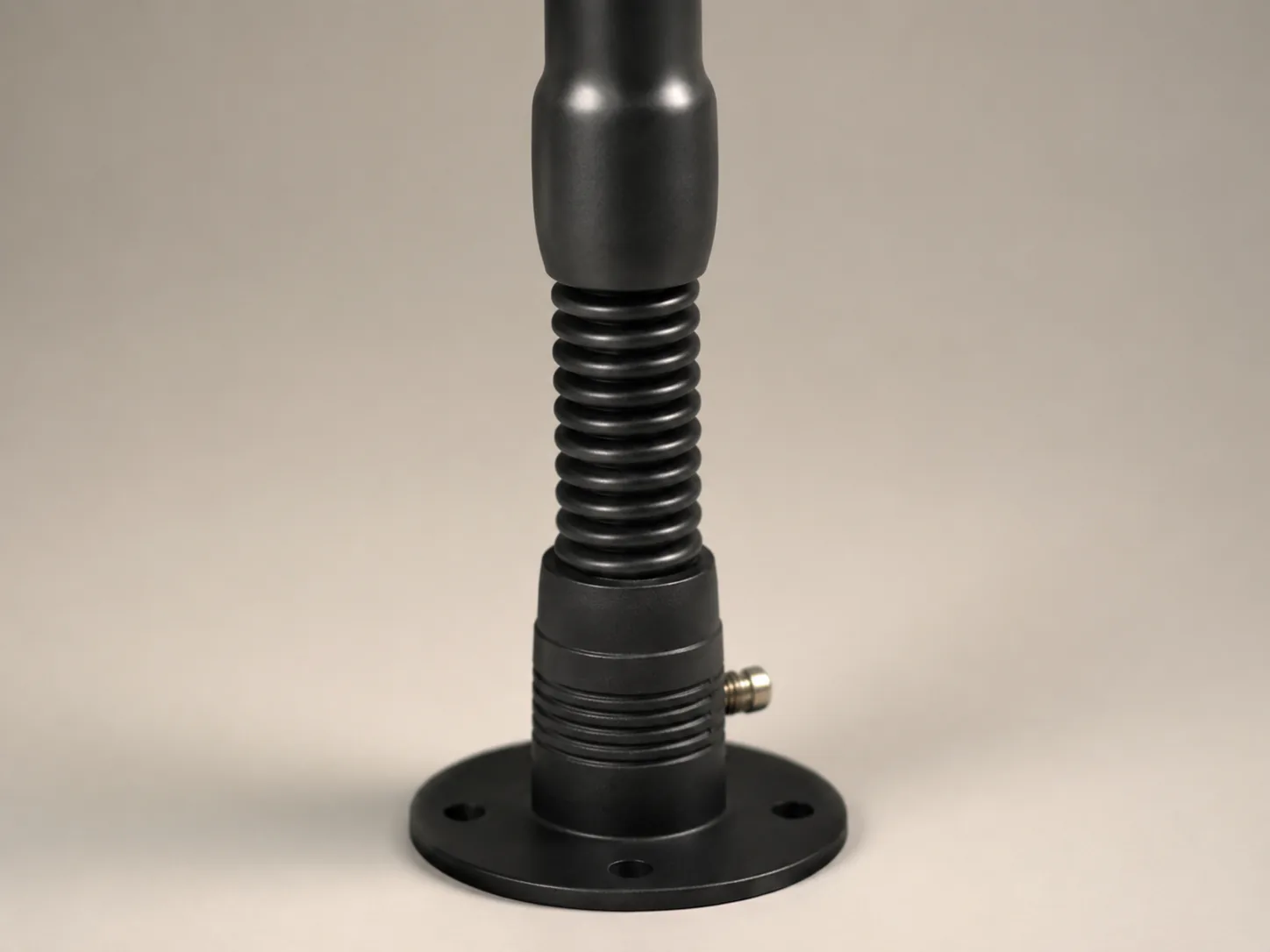

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL4503 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL4503 430-450 MHz Spring FRP Anti-Jamming Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Anti-Jamming Antenna & RF Monitoring Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL4503).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
