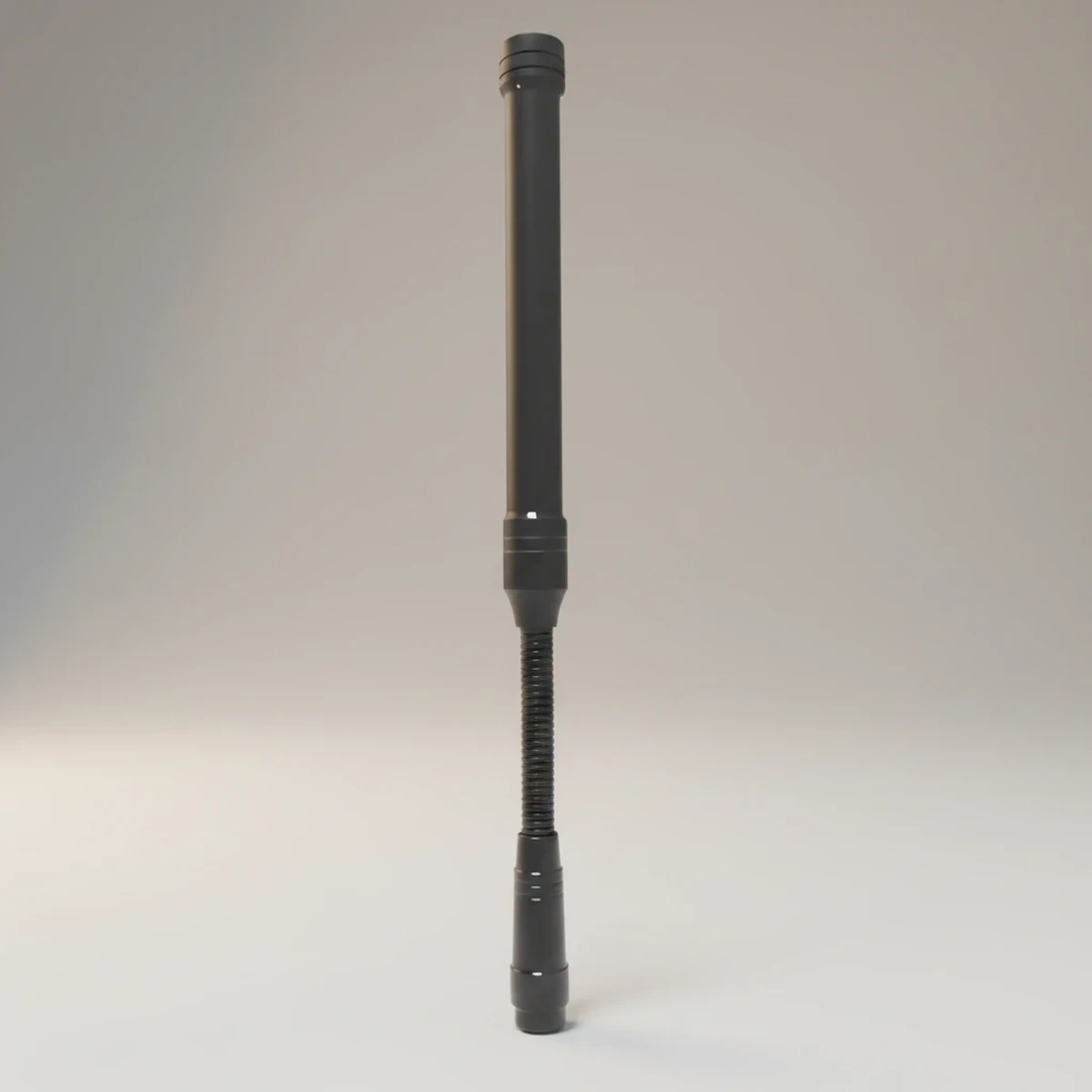

GL70600V-3 698-6000MHz Wideband Anti-Jamming Antenna main product image

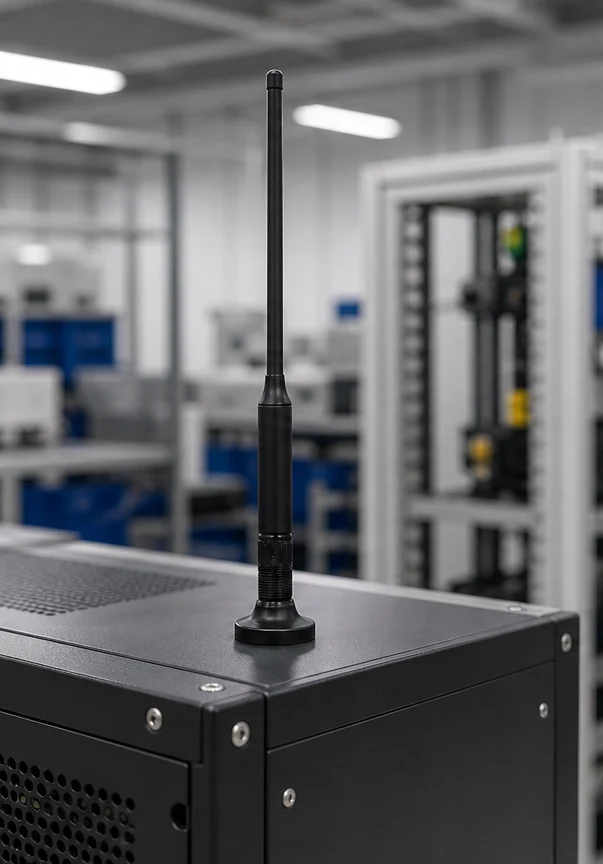

GL70600V-3 698-6000MHz Wideband Anti-Jamming Antenna application scene 1

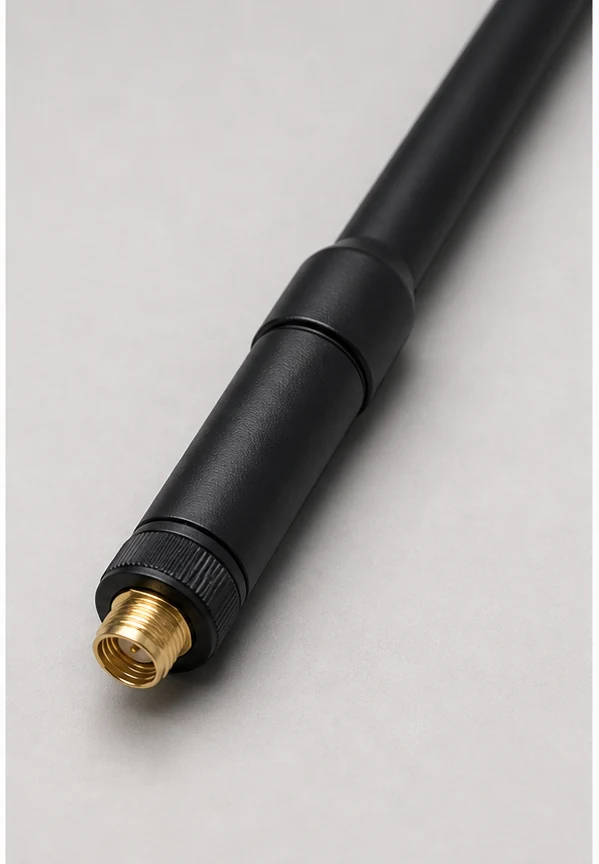

GL70600V-3 698-6000MHz Wideband Anti-Jamming Antenna application scene 2

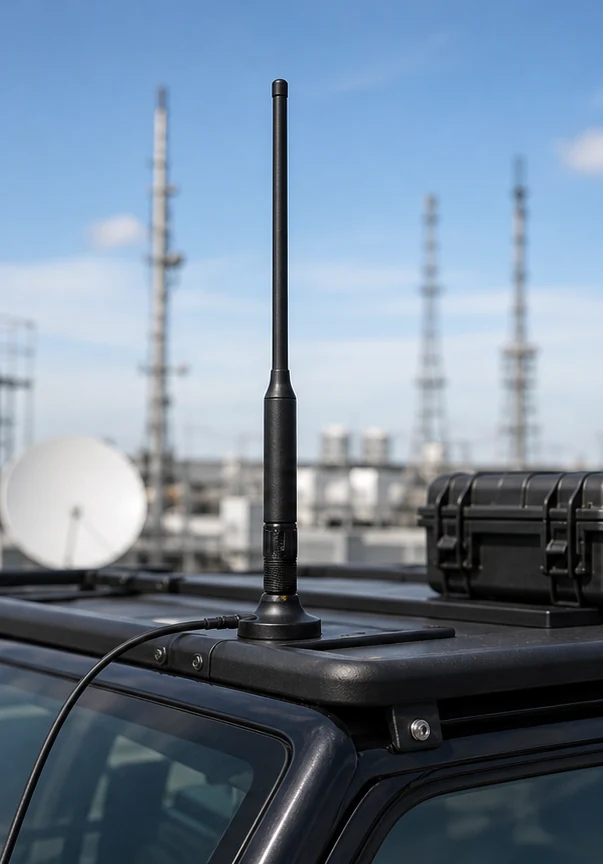

GL70600V-3 698-6000MHz Wideband Anti-Jamming Antenna connector and mounting detail view

RF Product Anti-Jamming Antenna & RF Monitoring Antenna

GL70600V-3 698-960 / 1710-6000 MHz Anti-Jamming Antenna

Name: GL70600V-3 698-960 / 1710-6000 MHz Anti-Jamming Antenna
Brand: Global RF Tech
SKU: GL70600V-3

SKU GL70600V-3

GL70600V-3 is a 698-960 / 1710-6000 MHz Wideband Anti-Jamming Antenna for RF systems, IoT devices, gateways and custom wireless projects. Its RF data lists 698-960 / 1710-6000 MHz operation, vertical polarization, and VSWR ≤2.5. Mechanical selection should confirm SMA male connector, 16 x 300 mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL70600V-3

Frequency 698-960 / 1710-6000 MHz

Dimensions Φ16 × 300 mm

polarization Vertical

vswr ≤2.5

connector SMA-Male

Request Quote Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL70600V-3
Frequency	698-960 / 1710-6000 MHz
Dimensions	Φ16 × 300 mm
polarization	Vertical
vswr	≤2.5
connector	SMA-Male
temperature	-40°c～60°c
Category	Anti-Jamming Antenna & RF Monitoring Antenna

Product Overview

Key Features

Technical Specifications

VSWR	≤2.5
Horizontal Beamwidth	360°
Vertical Beamwidth	55°
Polarization	Vertical
Maximum Input Power	50W
Lightning Protection	DC Ground
Connector Type	SMA male
Radome Material	Fiberglass
Radome Color	Black
Operating Temperature	-40°c～60°c

Application Scenarios

GL70600V-3 is suitable for RF systems, IoT devices, gateways and custom wireless projects. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL70600V-3 technical sheet for connector, mechanical and RF details.

Procurement Notes

For quotation or sampling, confirm the final connector, cable length, mounting method and installation space for GL70600V-3 698-960 / 1710-6000 MHz Anti-Jamming Antenna. Share the target device, expected operating band and enclosure constraints so the Rftech team can check mechanical fit before production.

For nearby options, compare related RF antenna products and review application guidance in the Rftech resource center. Custom cable, connector and mounting requirements should be confirmed before bulk ordering.

Selection and Project Support

GL70600V-3 698-960 / 1710-6000 MHz Anti-Jamming Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Anti-Jamming Antenna & RF Monitoring Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Company-Source Specifications

The following values are matched by SKU from Rftech-associated public product materials and are provided as selection references. Confirm final drawings and test requirements with Rftech before production.

Frequency range	698-960/1710-6000 MHz
VSWR	2.5 or less
Nominal gain	3 dBi
Horizontal beam width	360 degrees
Vertical beam width	55 degrees
Polarization	Vertical
Input impedance	50 ohms
Maximum input power	50 W
Lightning protection	DC ground
Input connector type	SMA Male
Dimensions	16 x 300 mm
Antenna weight	0.1 kg
Radome material	Fiberglass
Radome color	Black
Operating temperature	-40 C to 60 C
Rated wind velocity	60 m/s
Installation mode	Use with suction cup or compatible mounting seat

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL70600V-3).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
