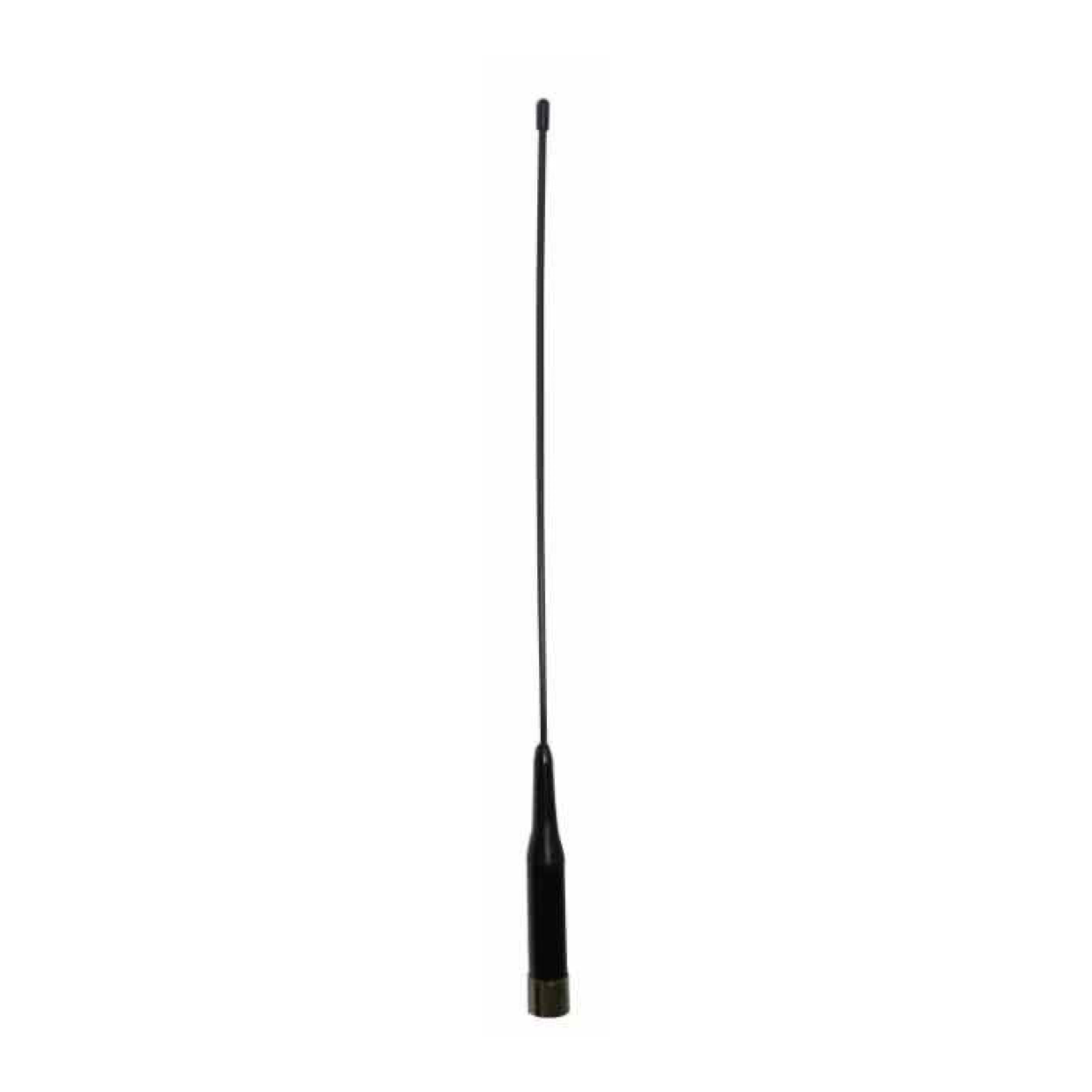

GL350FG 330-390 MHz 3.5 dBi Mobile Antenna
SKU GL350FG
GL350FG is a 330-390 MHz Mobile Antenna for uhf vehicle mobile antenna, with 3.5 dBi gain, UHF Male connector and M110 magnetic mount.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350FG |
|---|---|
| Frequency | 330-390 MHz |
| Dimensions | 39 cm |
| Connector | UHF Male |
| Mounting | M110 magnetic mount |
| Application | UHF vehicle mobile antenna |
| Bandwidth | 20 MHz |
| Gain | 3.5 dBi |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Weight | 85 g |
| Remarks | Matches with M110 magnetic mount. |
| Category | Mobile Antenna |
Mobile Antenna Role
GL350FG is a 330-390 MHz Mobile Antenna for compact UHF mobile installations using an M110 magnetic mount. Its source record lists 3.5 dBi gain, UHF Male connector and M110 magnetic mount, so the product page is kept tied to those exact ordering details.
RF and Mechanical Fit
The antenna uses Vertical polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 100 W, and the published size is 39 cm. Confirm cable loss, mating connector and mounting hardware before installation.
Installation Notes
Use GL350FG where a 330-390 MHz UHF male magnetic-mount antenna is required and the GL350FG suffix matches the order record. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.
Application Fit
- UHF vehicle mobile antenna
- Systems that operate inside 330-390 MHz and require a 50 Ω antenna path
- OEM or project builds where the SKU, connector and mounting details are stated before quotation
Selection Questions
What should be confirmed before ordering GL350FG?
Confirm the operating channels, requested connector, installation method and whether the documented 39 cm size is acceptable for the equipment or support structure.
Can this model be swapped with a nearby SKU?
Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.
Related Resources
- Browse antenna products
- Compare omnidirectional and directional antenna choices
- Request a model-specific quotation
Source-Specific Note
Source remark: Matches with M110 magnetic mount..
Technical Specifications
| Frequency Range | 330-390 MHz |
|---|---|
| Bandwidth | 20 MHz |
| Gain | 3.5 dBi |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Dimensions | 39 cm |
| Weight | 85 g |
| Connector | UHF Male |
| Remarks | Matches with M110 magnetic mount. |
Selection and Project Support
GL350FG 330-390 MHz 3.5 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350FG).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
