GL400S, GL400SI and GL400SII M6 Mobile Antennas

SKUGL400S

GL400S, GL400SI and GL400SII are vertically polarized mobile antennas with an M6 threaded connection. Each source identifies an M80 magnetic-mount match and a customizable cable connector.

GL400S / GL400SI / GL400SIIMHz: 400-480; 400-490M6 threaded connection

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL400S	GL400SI	GL400SII
Frequency-MHz	400-480	400-480	400-490
Bandwidth-MHz	16	16	16
Gain-dBi	3.2	3.6	5
VSWR	≤1.5	≤2.0	≤1.5
Nominal Impedance-Ω	50	50	50
Polarization	Vertical	Vertical	Vertical
Maximum Power-W	100	100	100
Length-cm	30	60	80
Weight-g	120	200	250
Connector	M6 threaded connection	M6 threaded connection	M6 threaded connection
Remarks	Matches with M80 magnetic mount,the connector of the cable is customized.	Matches with M80 magnetic mount,the connector of the cable is customized.	Matches with M80 magnetic mount,the connector of the cable is customized.

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Three lengths with an M6 threaded connection

GL400S, GL400SI and GL400SII are vertically polarized mobile antennas with an M6 threaded connection. Each source identifies an M80 magnetic-mount match and a customizable cable connector.

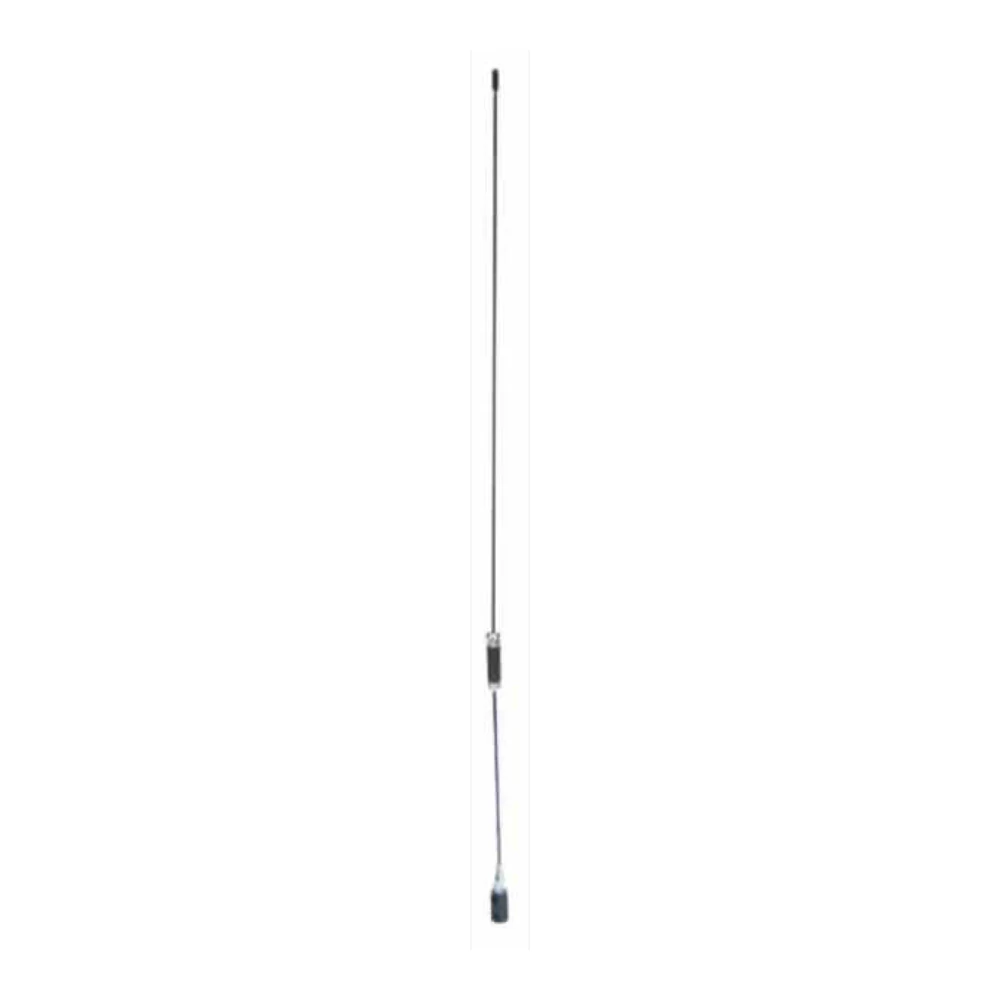

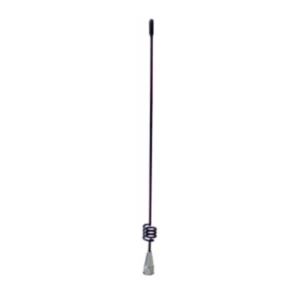

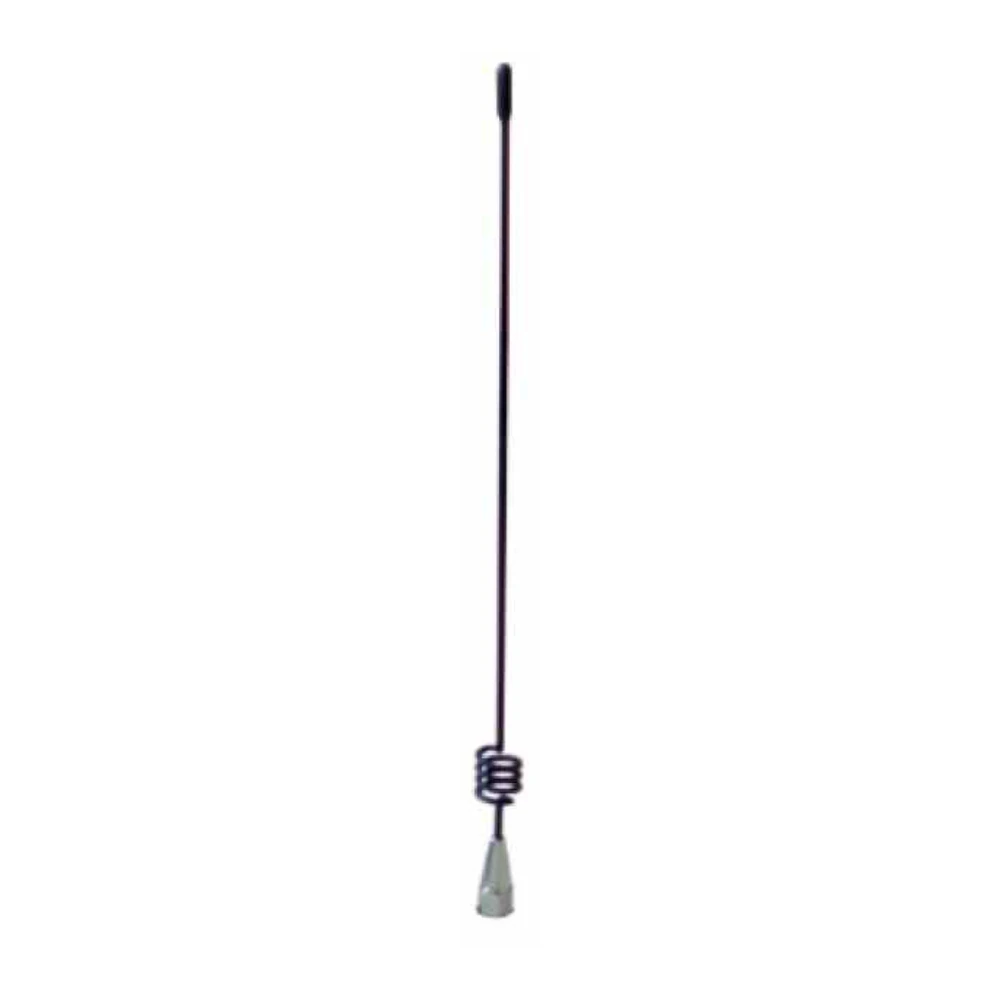

The listed lengths increase from 30 cm on GL400S to 60 cm on GL400SI and 80 cm on GL400SII. Their respective gains are 3.2, 3.6 and 5 dBi, while maximum power is 100 W for all three.

The sheets list 16 MHz bandwidth for each model. GL400S and GL400SI specify 400-480 MHz; GL400SII specifies 400-490 MHz. The comparison preserves the individual VSWR limits and weights.
