RF Product · Mobile Antenna

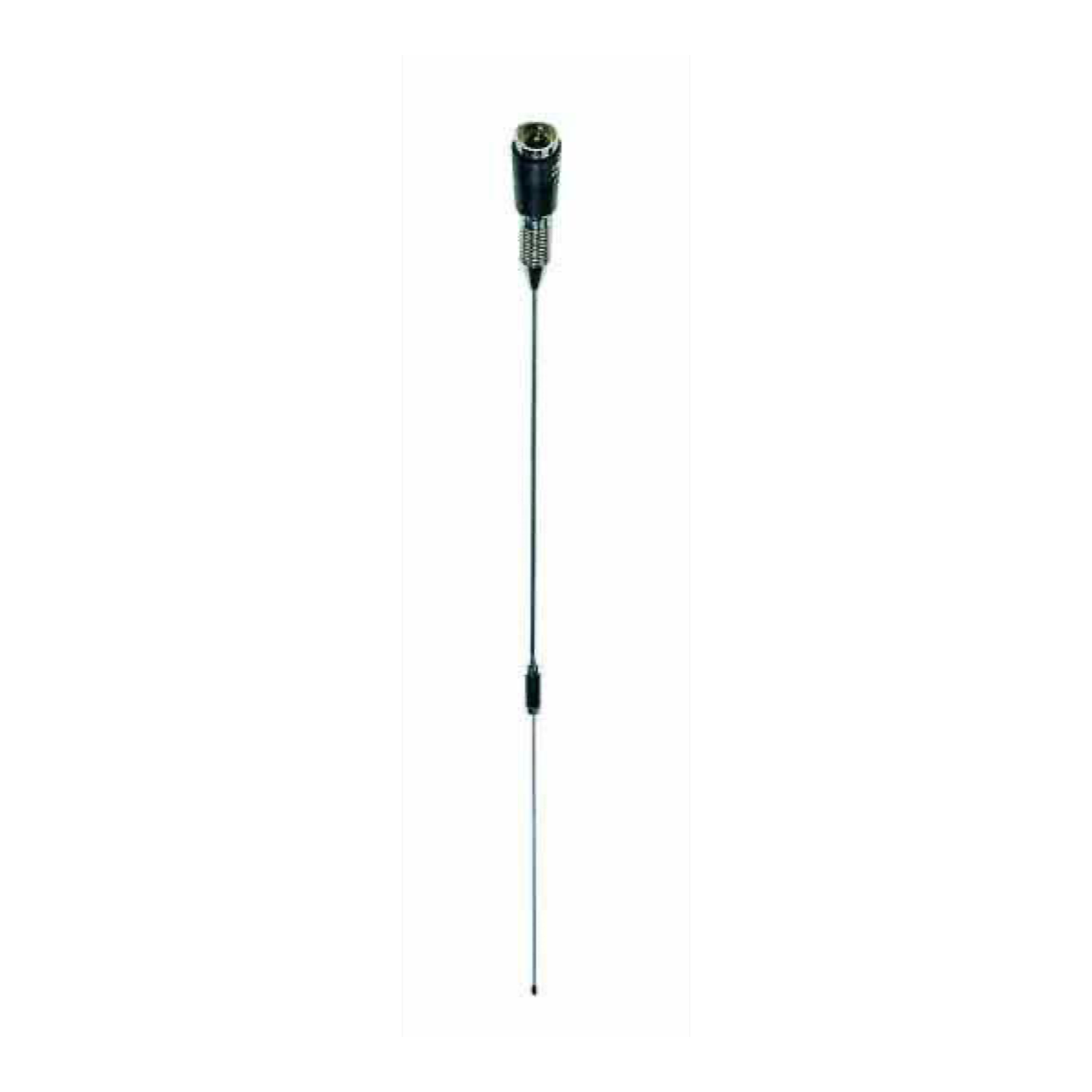

Mobile Antenna 5.5 dBi 400-480 MHz GL400DII
SKUGL400DII
GL400DII is a vertically polarized UHF mobile antenna with a UHF male connection and an M110 magnetic mounting arrangement.
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL400DII is designed around an M110 magnetic mounting arrangement and includes a spring at the bottom of the antenna. Confirm the mount and connector combination as one assembly; the UHF male interface should not be confused with the NMO or TNC arrangements used by other mobile models. Check the feeder route and available height at the proposed mounting position.
The product range is 400–480 MHz with a separate 16 MHz bandwidth entry. Specify the required channel configuration before ordering. The VSWR ≤1.2 figure is explicitly a center-frequency value, so it should not be applied to every channel without the corresponding measurement. Magnetic attachment and a base spring also do not establish a vehicle-speed or impact-safety rating for the complete installation.
Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL400DII | 400-480 MHz | 5.5 dBi | UHF Male | View model |
| GL-DY150CK | 168-174 MHz | 4.65 dBi | UHF Male | View model |
| GL-DY150FC-A | 138-170 MHz | 2.15 dBi | UHF Male | View model |
| GL-DY150FCB-W | 134-174 MHz | 2.15 dBi | UHF Male | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
