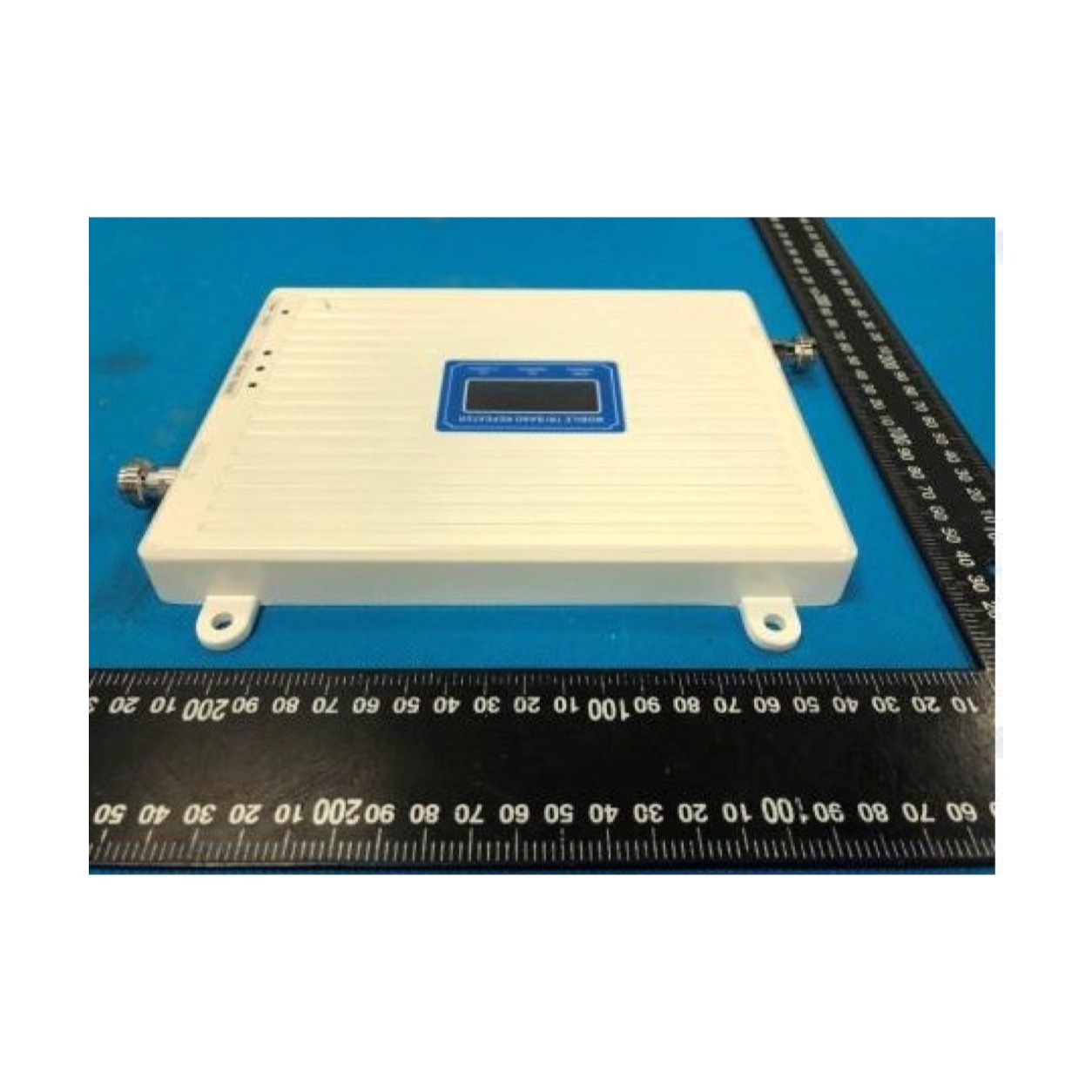

GLS3GDWW-W Tri-band Signal Repeater
SKU GLS3GDWW-W
GLS3GDWW-W is a DC 12 V tri-band signal repeater sample with a 2.0 A adapter rating and documented EMC emission and immunity test results.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLS3GDWW-W |
|---|---|
| Application | Indoor signal coverage systems |
| Equipment | Signal amplifier |
| Test Sample Model | S3GDWW-W |
| Power Source | DC voltage |
| Power Rating | DC 12 V, 2.0 A from adapter |
| Adapter Input | AC 100-240 V, 50/60 Hz |
| Conducted Emission, EN 55032 | Class B - PASS |
| Radiated Emission, EN 55032 | Class B - PASS |
| Voltage Fluctuations & Flicker, EN 61000-3-3 | PASS |
| Electrostatic Discharge, EN 61000-4-2 | PASS |
| RF Electromagnetic Field, EN 61000-4-3 | PASS |
| Fast Transients, EN 61000-4-4 | PASS |
| Surges, EN 61000-4-5 | PASS |
| Injected Current, EN 61000-4-6 | PASS |
| Voltage Dips and Interruptions, EN 61000-4-11 | PASS |
| Category | Antenna related products |
GLS3GDWW-W product overview
The GLS3GDWW-W is identified in the supplied test report as a signal amplifier and tri-band repeater sample. The documented power rating is DC 12 V, 2.0 A from an adapter with AC 100-240 V, 50/60 Hz input.
Applications and product fit
The supplied report records EMC emission and immunity test outcomes for the evaluated sample and its listed model family. It does not provide the operating frequency bands, RF gain, output power, connector type or coverage area, so those items must be confirmed for the required version before quotation.
Integration and ordering notes
Use the PDF test summary as supporting evidence for the evaluated sample only; it is not a substitute for a complete RF specification or a universal certification claim. Send the target country, operator bands, required coverage, donor/server antenna plan and quantity so the exact repeater version can be checked.
Related products and resources
- Read the in-building DAS guide
- Browse antennas and RF products
- Send your band and coverage requirement
Selection and Project Support
GLS3GDWW-W Tri-band Signal Repeater is listed by Rftech for RF antenna and wireless connectivity projects in the Antenna related products category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLS3GDWW-W).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
