Frequency2400-2500 MHz
Bandwidth100 MHz
Gain2 dBi
VSWR≤2.0
Input impedance50 Ω
PolarizationVertical
Maximum Input Power50 W
RF Product · Wifi Antenna

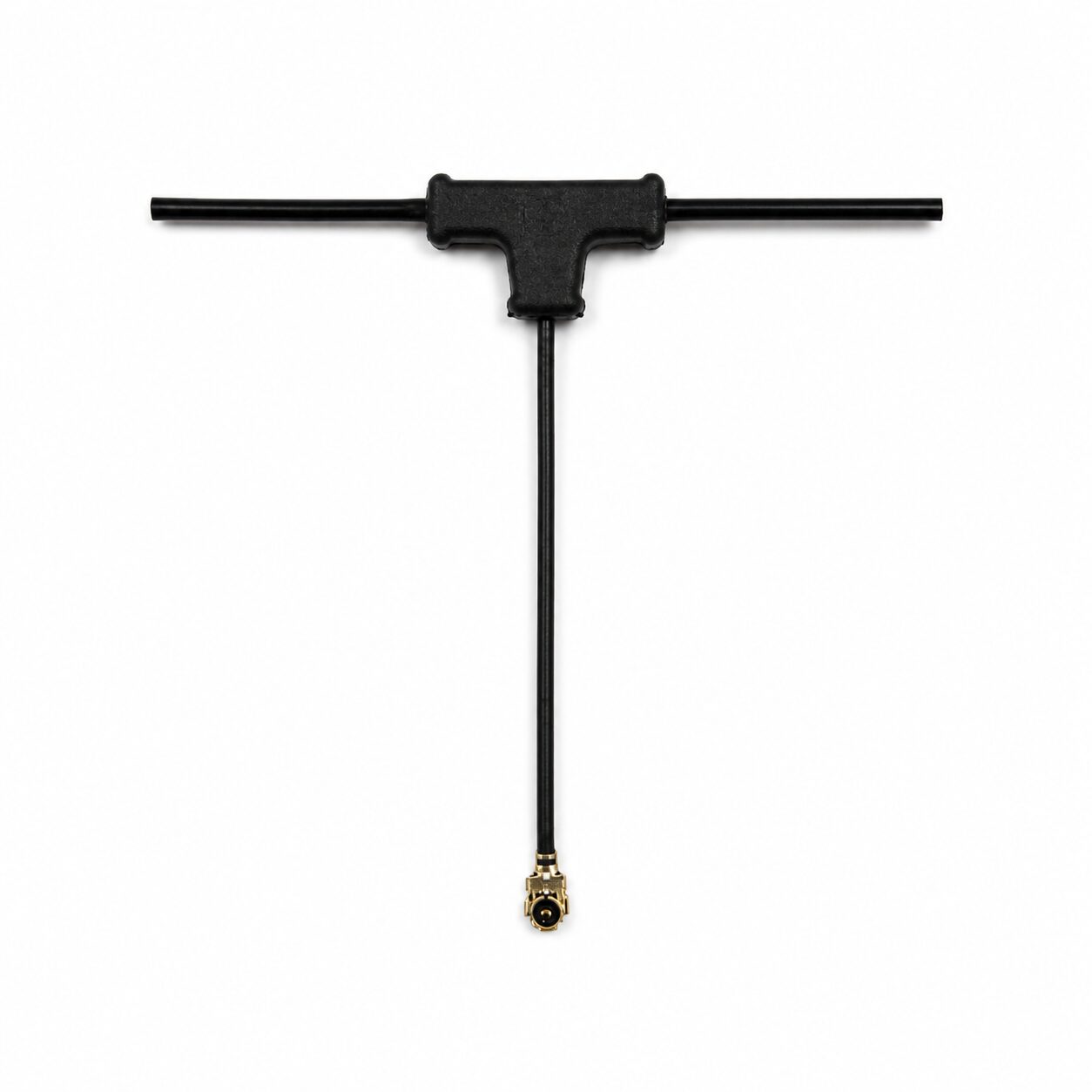

T-shaped Antenna 2.4 GHz GLYJ-2.4G-113IPEX
SKUGLYJ-2.4G-113IPEX
GLYJ-2.4G-113IPEX is a compact 2400-2500 MHz T-shaped embedded antenna with 2 dBi gain, 1.13 mm coax, 120 mm cable and IPEX connector.
2400-2500 MHzAntenna 56 mm; cable 120 mmIPEX
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Specifications
Technical specifications
Review the specifications for this model.SKUGLYJ-2.4G-113IPEX
Frequency2400-2500 MHz
DimensionsAntenna 56 mm; cable 120 mm
ConnectorIPEX
MountingEmbedded
Application2.4 GHz embedded wireless devices
Bandwidth100 MHz
Gain2 dBi
VSWR≤2.0
Input impedance50 Ω
PolarizationVertical
Maximum Input Power50 W
Antenna Length56 mm
Cable1.13 mm coaxial cable
Cable Length120 mm
Operating temperature-20 to +50 °C
Storage Temperature-20 to +55 °C
Packing1 pc per inner bag; 50 pcs per outer carton
CategoryWifi Antenna
Product information
Product details
Compare RF performance, dimensions and installation requirements.DimensionsAntenna 56 mm; cable 120 mm
ConnectorIPEX
MountingEmbedded
Antenna Length56 mm
Cable1.13 mm coaxial cable
Cable Length120 mm
Operating temperature-20 to +50 °C
Storage Temperature-20 to +55 °C
SKUGLYJ-2.4G-113IPEX
Application2.4 GHz embedded wireless devices
Packing1 pc per inner bag; 50 pcs per outer carton
CategoryWifi Antenna
Current documentation
Downloads
Download technical documents for this model.Typical applications
Applications
Consider these applications when selecting your antenna.Same product family
Related models
Compare related models and their specifications.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GLYJ-2.4G-113IPEX | 2400-2500 MHz | 2 dBi | IPEX | |
| GLAG360 | 2400-2500 MHz | 3.0 dBi | SMA | View model |
| GLJTL390 | 2400-2500 MHz | 7.5 dBi | SMA | View model |
| GL0524V2 | 2400-2500 MHz | 2.0 dBi | SMA | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
