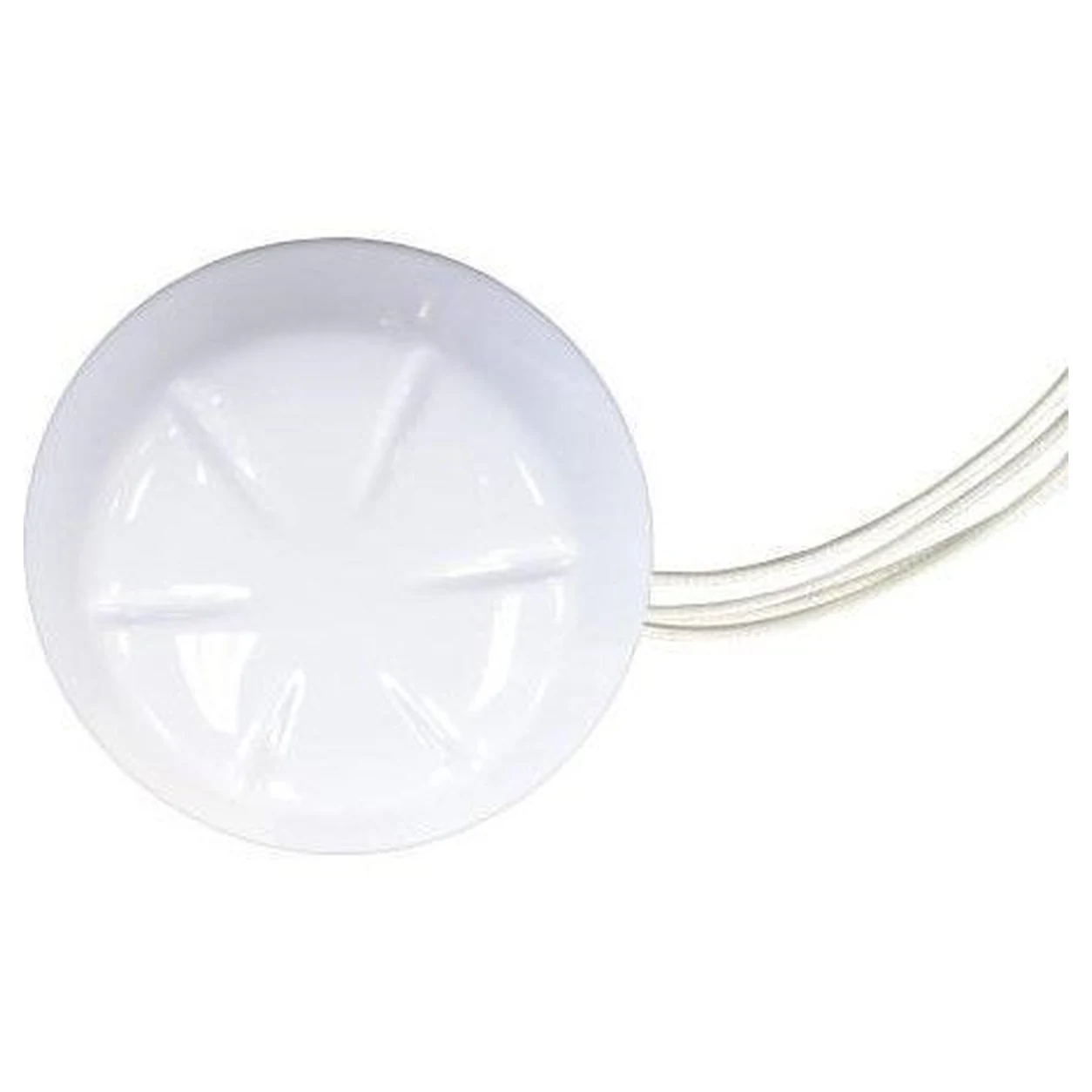

GLQ2471MOH tri-band 2.4/5/6 GHz omni antenna with four white cables

RF Product Wifi Antenna

GLQ2471MOH 2.4/5/6 GHz 4-Port WiFi Omni Antenna

SKU GLQ2471MOH

Compact tri-band omnidirectional antenna covering 2.4, 5 and 6 GHz WLAN bands, with four RP-SMA male connectors and up to 5 dBi peak gain.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GLQ2471MOH

Frequency 2400-2500 / 5150-5950 / 6000-7125 MHz

Dimensions Dia. 90 x 40 mm

Connector 4 × RP-SMA Male

Mounting Nut Mount

Application Tri-band 2.4/5/6 GHz WLAN systems

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLQ2471MOH
Frequency	2400-2500 / 5150-5950 / 6000-7125 MHz
Dimensions	Dia. 90 x 40 mm
Connector	4 × RP-SMA Male
Mounting	Nut Mount
Application	Tri-band 2.4/5/6 GHz WLAN systems
Frequency Band	2400-2500 / 5150-5950 / 6000-7125 MHz
Polarization	Vertical
Peak Gain	4 / 4 / 5 dBi (measured with 18 inch cable)
VSWR	≤ 2.0
Isolation	≥ 13 / ≥ 20 / ≥ 20 dB
Impedance	50 ohm
Maximum Power	50 W
Connector Position	Bottom
Exposed Cable	1220±10 mm (or user's customization)
Radome Material	PC
Radome Color	White
Weight	180 g
Operating Temperature	-40°C to +85°C
Operating Humidity	5-95%
Category	Wifi Antenna

GLQ2471MOH product overview

The GLQ2471MOH is a compact four-connection omnidirectional antenna covering 2400-2500 MHz, 5150-5950 MHz and 6000-7125 MHz. The supplied datasheet lists vertical polarization, peak gain of 4, 4 and 5 dBi by band, and four RP-SMA male connectors on 1220±10 mm exposed cables.

Applications and product fit

The documented 2.4, 5 and 6 GHz coverage is intended for tri-band WLAN systems operating inside the listed ranges. The datasheet specifically lists IEEE 802.11a/b/g/n; buyers requiring a particular newer WiFi protocol should confirm system compatibility before ordering.

Integration and ordering notes

The mounting method is listed as fixed with nut. Before ordering, confirm the required frequency bands, four mating RP-SMA female interfaces, 1220±10 mm cable routing, mounting opening and clearance for the 90 x 40 mm radome. The datasheet lists 5-95% operating humidity and -40°C to +85°C operating temperature.

Frequently asked questions

Which frequency ranges does GLQ2471MOH cover?

The datasheet lists 2400-2500 MHz, 5150-5950 MHz and 6000-7125 MHz.

What gain is documented for each band?

Peak gain is listed as 4, 4 and 5 dBi by band, measured with an 18 inch cable.

Which connectors and cable length are supplied?

The specification lists four RP-SMA male connectors with 1220±10 mm exposed cable, or a user-specified customization.

How is the antenna mounted?

The datasheet describes bottom connector position and fixed-with-nut mounting for the 90 x 40 mm radome.
