UHF Omnidirectional Antenna with NATO 4-Hole GLU4FG3NTO
SKUGLU4FG3NTO

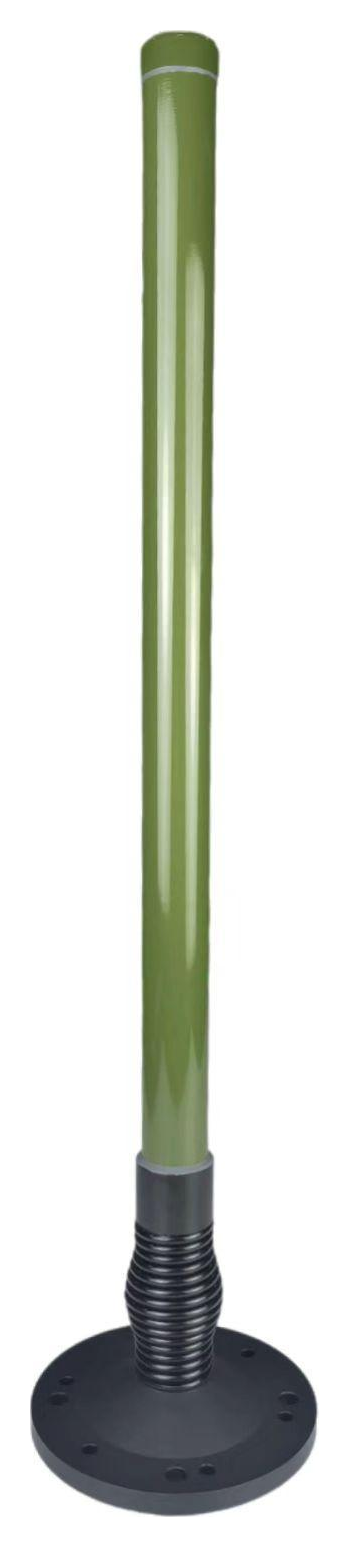

GLU4FG3NTO is a 225–400 MHz fiberglass omni with a four-hole NATO base, built-in spring and N female connection.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GLU4FG3NTO uses a four-hole NATO base with a spring between the base and the fiberglass radome. That mechanical arrangement is a primary selection factor: check the mounting footprint and the space needed for the 730 ± 20 mm antenna before comparing it with screw-on terminal antennas. Its 225–400 MHz range covers a different requirement from a narrow-channel UHF model.

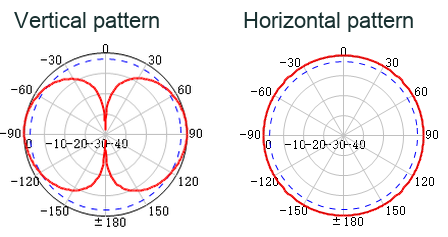

The specified 360° horizontal and 60 ± 3° vertical half-power beamwidths describe how coverage is distributed around the installation. Keep the antenna vertically oriented and plan the N female feeder connection accordingly. An optional black heat-shrink wrap is listed separately from the standard green radome; identify that requirement when requesting the configuration rather than assuming it is included.
Current documentation
Downloads
Files shown here are linked to this exact product record.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GLU4FG3NTO | 225-400 MHz | 3 +/- 0.5 dBi | — | |
| GL-DYF125 | (MHz) 156-165 | (dBi) 3.0 | — | |
| GLDYF125 | 156-165 MHz | 3.0 dBi | SL16 | |
| GLGTDB10W | 200-512 MHz | 0 dBi | TNC male |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
