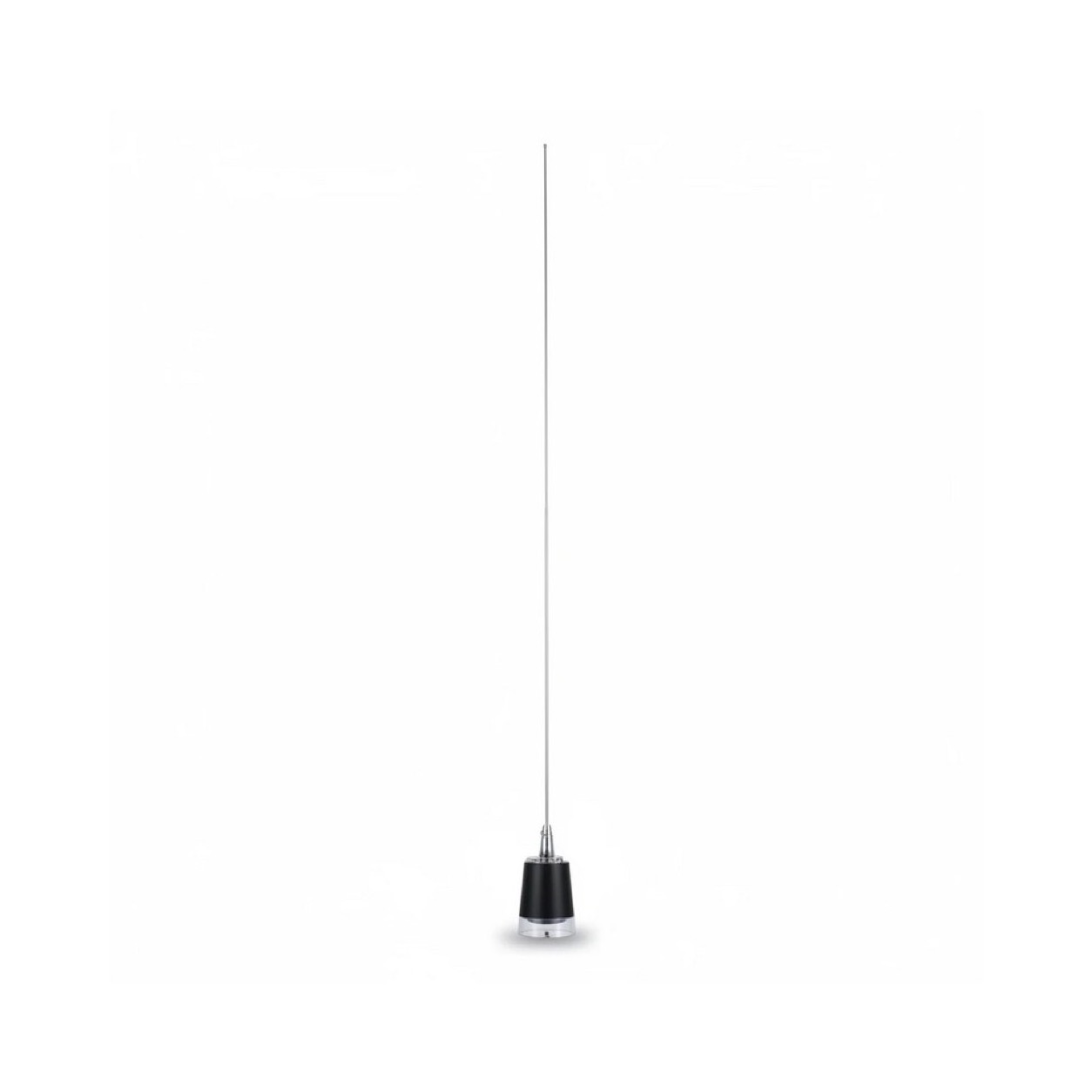

GLDYF125 white 156-165 MHz VHF UHF antenna with SL16 connector

RF Product VHF&UHF Antenna

GLDYF125 156-165 MHz VHF/UHF Antenna

SKU GLDYF125

GLDYF125 covers 156-165 MHz with 3.0 dBi gain, SL16 connector, 1.25 m height, vertical polarization, fiberglass radome and 50 W rating.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GLDYF125

Frequency 156-165 MHz

Dimensions Height 1.25 m

Connector SL16

Application Two-way radios and vehicle communication

Impedance 50 ohm

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLDYF125
Frequency	156-165 MHz
Dimensions	Height 1.25 m
Connector	SL16
Application	Two-way radios and vehicle communication
Impedance	50 ohm
Gain	3.0 dBi
Polarization	Vertical
VSWR	<= 1.5
Maximum Input Power	50 W
Height	1.25 m
Radome Material	FRP
Color	White
Weight	2 kg
Operating Temperature - Source Value	-50 to 80
Category	VHF&UHF Antenna

GLDYF125 product overview

GLDYF125 is a VHF/UHF antenna covering 156-165 MHz. Its datasheet specifies 3.0 dBi gain, vertical polarization, 50 ohm impedance, 50 W maximum input power and VSWR no greater than 1.5.

Product fit

The datasheet lists two-way radios, vehicle communication, public-safety radios and telemetry as applications. The antenna uses an SL16 connector and a white fiberglass radome.

Integration and ordering notes

Before ordering, confirm the 156-165 MHz operating range, SL16 mating interface, 1.25 m height and installation requirements. The documented weight is 2 kg and the operating-temperature field is -50 to 80.

Frequently asked questions

What frequency range does GLDYF125 cover?

The specified frequency range is 156-165 MHz.

What gain and VSWR are specified?

The datasheet specifies 3.0 dBi gain and VSWR no greater than 1.5.

Which connector does it use?

The specified connector is SL16.

Which applications are listed?

The datasheet lists two-way radios, vehicle communication, public-safety radios and telemetry.

Selection and Project Support

GLDYF125 156-165 MHz VHF/UHF Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the VHF&UHF Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLDYF125).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
