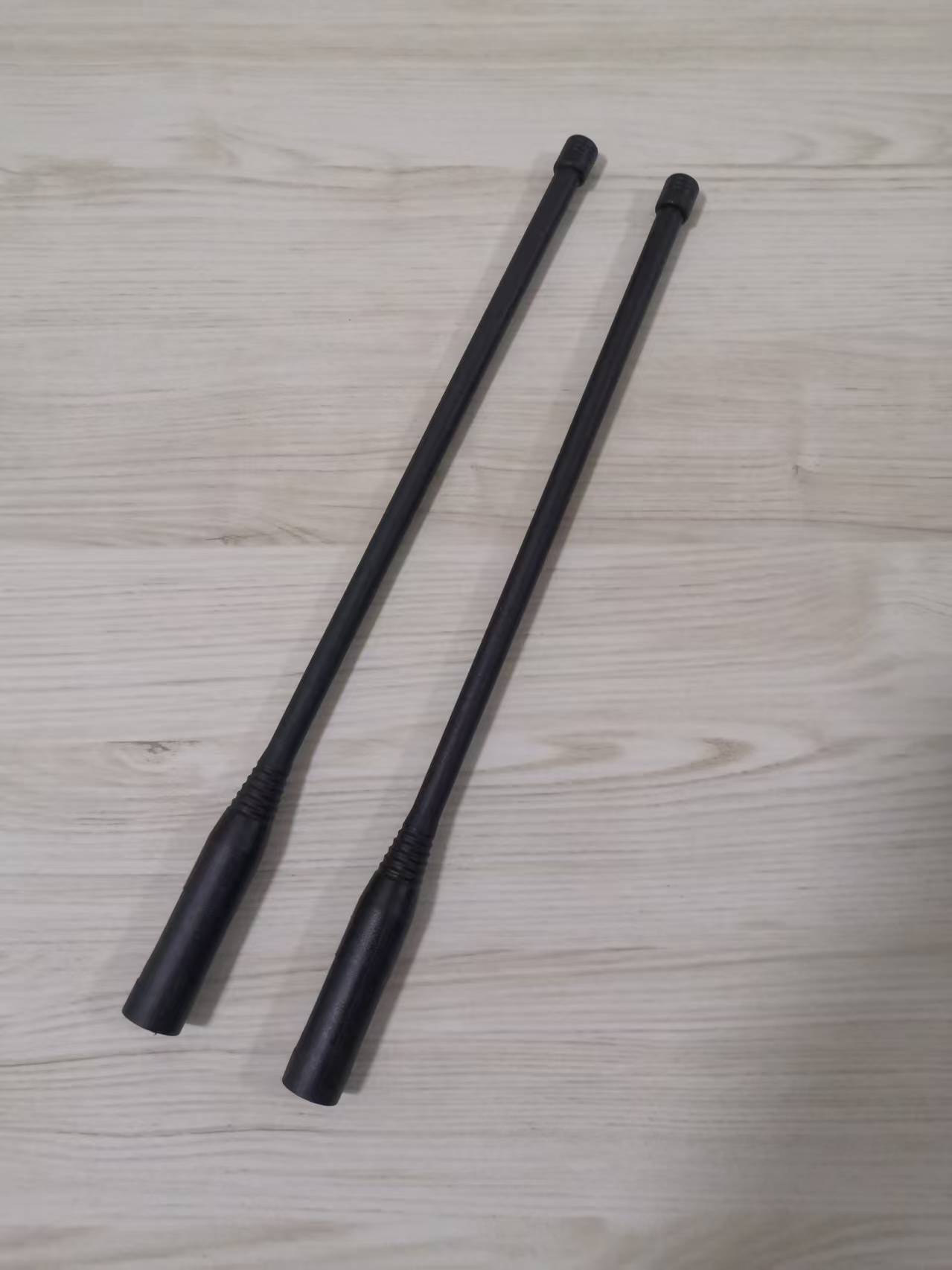

GLGTDB10W black broadband whip antenna in the two documented length options

RF Product VHF&UHF Antenna

GLGTDB10W 200-512 MHz Broadband Whip Antenna

SKU GLGTDB10W

GLGTDB10W broadband whip antenna covers 200-512 MHz with 0 dBi gain, TNC male connector, IP65 rating and 250 mm or 330 mm dimensions.

SKU GLGTDB10W

Frequency 200-512 MHz

Dimensions 250 mm / 330 mm

Connector TNC male

Gain 0 dBi

Horizontal Beamwidth 360°

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLGTDB10W
Frequency	200-512 MHz
Dimensions	250 mm / 330 mm
Connector	TNC male
Gain	0 dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	53° ± 5°
VSWR	<= 2.5
Ovality	<= 2 dB
Impedance	50 ohm
Polarization	Vertical
Maximum Power	10 W
Weight	Approx. 78 g
Main Material	Copper
Radome Color	Black
Operational Humidity	< 95%
Waterproof Rating	IP65
Radome Material	PE
Operating Temperature	-40°C to +65°C
Category	VHF&UHF Antenna

GLGTDB10W product overview

GLGTDB10W is a broadband whip antenna covering 200-512 MHz. Its datasheet specifies 0 dBi gain, vertical polarization, 50 ohm impedance, 360 degree horizontal beamwidth and VSWR no greater than 2.5.

Product fit

The documented antenna uses a TNC male connector and is available in 250 mm or 330 mm dimensions. The datasheet lists a copper main material, PE radome, IP65 rating and approximate weight of 78 g.

Integration and ordering notes

Before ordering, confirm the required 200-512 MHz operating range, TNC mating interface and whether the 250 mm or 330 mm documented dimension is required. The listed maximum power is 10 W.

Frequently asked questions

What frequency range does GLGTDB10W cover?

The specified frequency range is 200-512 MHz.

Which connector does it use?

The specified connector is TNC male.

What gain and VSWR are specified?

The datasheet specifies 0 dBi gain and VSWR no greater than 2.5.

Which dimensions are listed?

The datasheet lists 250 mm and 330 mm dimensions.

Selection and Project Support

GLGTDB10W 200-512 MHz Broadband Whip Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the VHF&UHF Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLGTDB10W).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
