RF Product · Panel Antenna

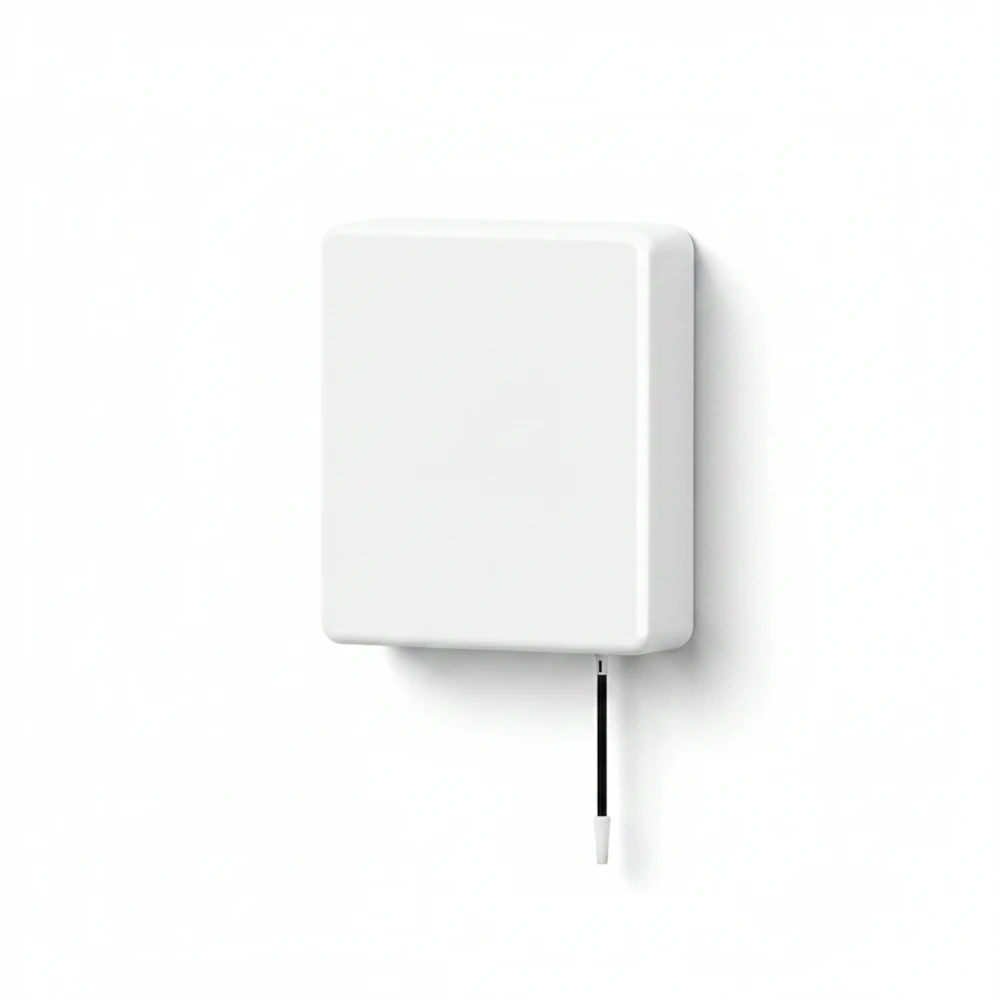

Directional Flat Antenna GL-0660BGA-MY
SKUGL-0660BGA-MY
GL-0660BGA-MY is a directional flat antenna specified for 617-960/1695-2700/3300-4200/4800-6000 MHz. The gain specification is 6/7/8/8 dBi.
The specified connector is 1*4.3-10F. The dimensions are 306×250×86 mm. These details help check the connection and available space for the intended installation.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL-0660BGA-MY provides a directional flat format for a channel plan spanning four specified frequency windows. Check the required channels against each window rather than treating the entire span as continuous. Its rectangular body also needs to be considered separately from the log-periodic alternatives.
Compared with GL-0660DSF-M, it uses the same listed frequency windows in a shorter body, while the gain values differ across the bands. Select the required gain profile alongside the available space. Both list a PIM limit of −153 dBc at 2 × 43 dBm, so this figure alone does not distinguish the two models.
Current documentation
Downloads
Files shown here are linked to this exact product record.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-0660BGA-MY | 617-960/1695-2700/3300-4200/4800-6000 MHz | — | — | |
| GLW2400V14 | 2100–2400 MHz | 9 dBi | — | View model |
| GL-0727BJA | 698-960/1710-2700 MHz | — | — | |
| GL-0727BKML-M | 698-960/1710-2700 MHz | — | — |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
