GLW2400V14 2100–2400 MHz 9 dBi Panel Antenna
SKUGLW2400V14
A compact 2100–2400 MHz panel antenna in the 9 dBi configuration, with a rear-facing SMA female connector and a 165 × 155 × 50 mm enclosure. Includes sample VSWR traces and a test bench video.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.Panel antenna configuration
Product details
RF, connector and enclosure information for the compact configuration.Compact panel configuration
GLW2400V14 is a panel antenna covering 2100–2400 MHz. This page describes the compact 9 dBi configuration with a rear-facing, straight SMA female connector and an enclosure measuring 165 × 155 × 50 mm. The listed VSWR specification is ≤1.5.

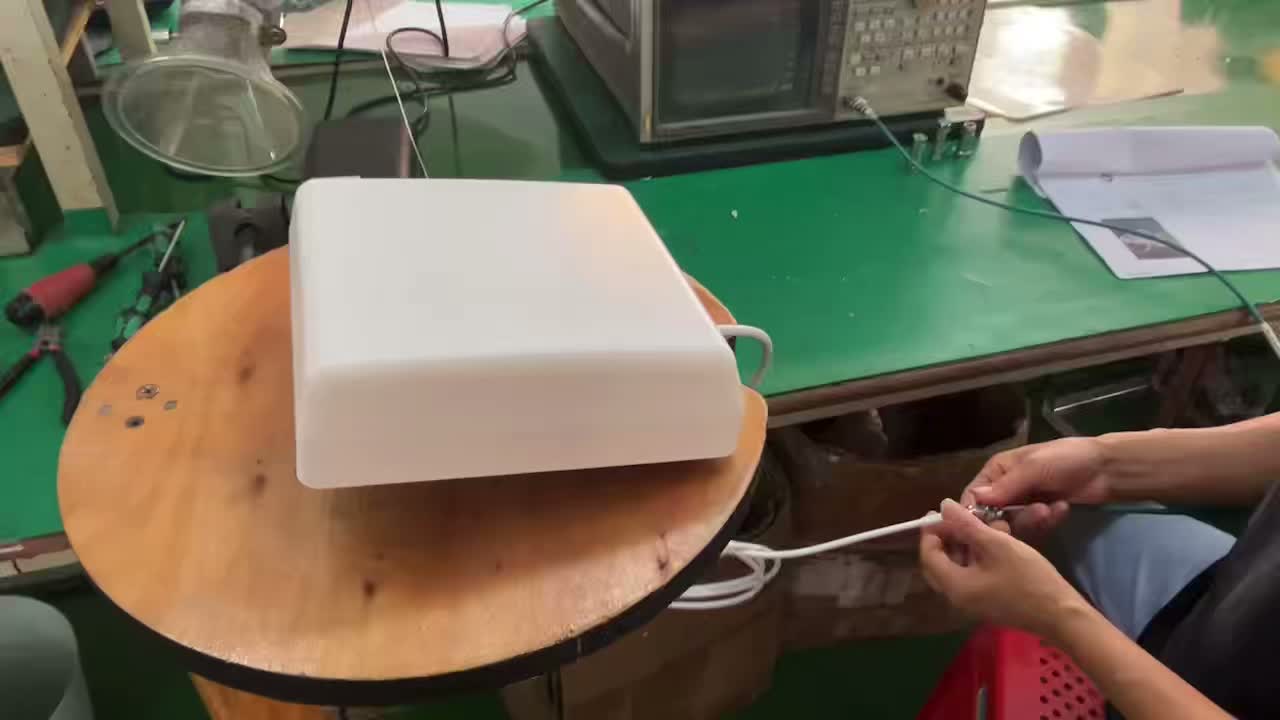

The white panel sample is shown on the test bench in the video below. The two saved network-analyzer traces show sample VSWR across 2.1–2.4 GHz. Gain is a nominal configuration specification; it is not measured by these VSWR traces.
Before selecting this configuration
- Match the radio frequency endpoints to the documented 2100–2400 MHz range.
- Check the rear connector clearance, mating connector and enclosure space.
- Confirm the mounting arrangement and mechanical drawing before ordering.
Browse the panel antenna range to compare other published frequency and connector configurations.
Available validation material
Test data
Only product-linked test tables and files are shown.2100–2400 MHz sample VSWR records
Trace 1: 1.0373 at 2100 MHz, 1.4029 at 2304 MHz and 1.3475 at 2400 MHz.

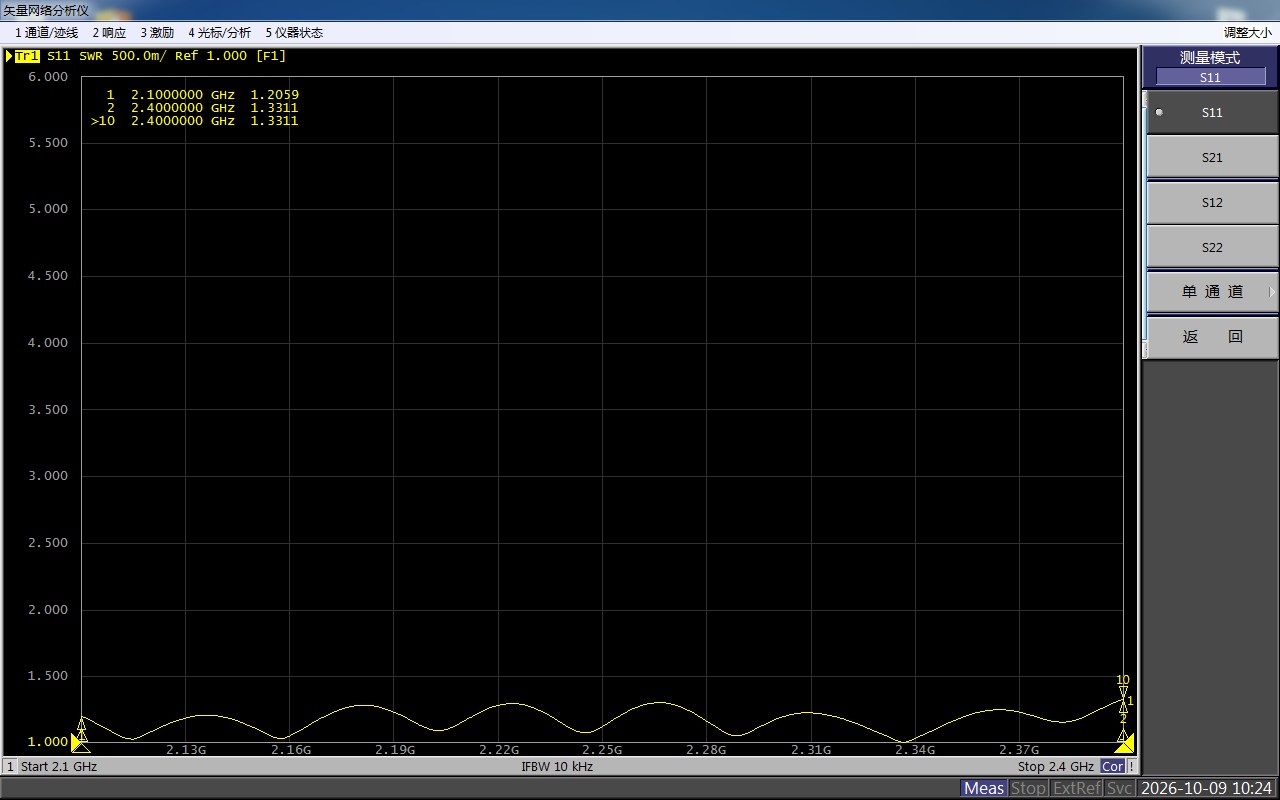

Trace 2: 1.2059 at 2100 MHz and 1.3311 at 2400 MHz.
The screenshots display 9 October 2026. These sample traces are not guaranteed production limits. The calibration plane, test cable and fixture conditions are not identified in the records. Select an image to inspect the original screenshot.
Test bench video
