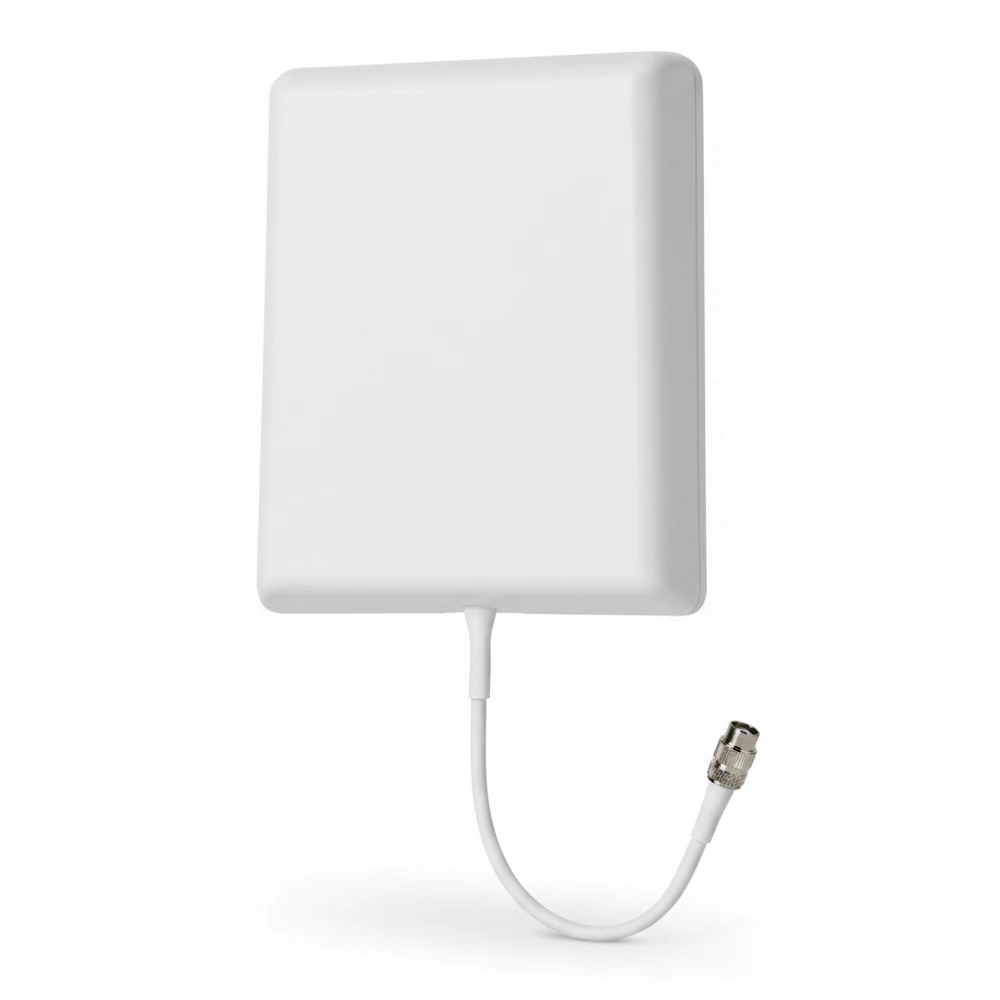

Directional Flat Antenna GL-0727BKML-M
SKUGL-0727BKML-M
GL-0727BKML-M is a directional flat antenna specified for 698-960/1710-2700 MHz. The gain specification is 7/10 dBi.
The specified connector is 1*N-F. The dimensions are 210×180×44 mm. These details help check the connection and available space for the intended installation.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL-0727BKML-M combines the two specified frequency windows with an N-female connection and a compact flat body. Compared with GL-0727BJA, it lists higher gain in both windows and smaller overall dimensions. These differences are useful when gain requirements and available space both influence the choice.
The models use different connector types, and their PIM limits are quoted at different test powers. Do not use the PIM numbers as a direct performance ranking without matching the test conditions. Confirm the cable interface and the required gain in each window as part of the selection.
Current documentation
Downloads
Files shown here are linked to this exact product record.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-0727BKML-M | 698-960/1710-2700 MHz | — | — | |
| GLW2400V14 | 2100–2400 MHz | 9 dBi | — | View model |
| GL-0660BGA-MY | 617-960/1695-2700/3300-4200/4800-6000 MHz | — | — | |
| GL-0727BJA | 698-960/1710-2700 MHz | — | — |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
