GL-DYX150F 134-173 MHz 1.8 dBi Terminal Antenna

Compact by Design

The GL-DYX150F is the short-format member of the VHF terminal antenna family, just 10 cm tall, built for situations where a full-length whip gets in the way. It still covers the full 134-173 MHz two-way radio band and still delivers 1.8 dBi, but the priority here is a low, snag-free profile that keeps the radio compact and unobtrusive.

Why a Stubby

A shorter antenna is easier to conceal under a jacket, less likely to catch on seatbelts, scaffolding or doorways, and more comfortable when the radio is worn close to the body all day. Plainclothes security, retail loss-prevention and crowded indoor venues all benefit from an aerial that does not advertise itself or get knocked around. The trade for that convenience is a slightly shorter reach than a long whip, which is rarely an issue at close-to-medium range inside buildings and dense sites.

Electrical and Mechanical

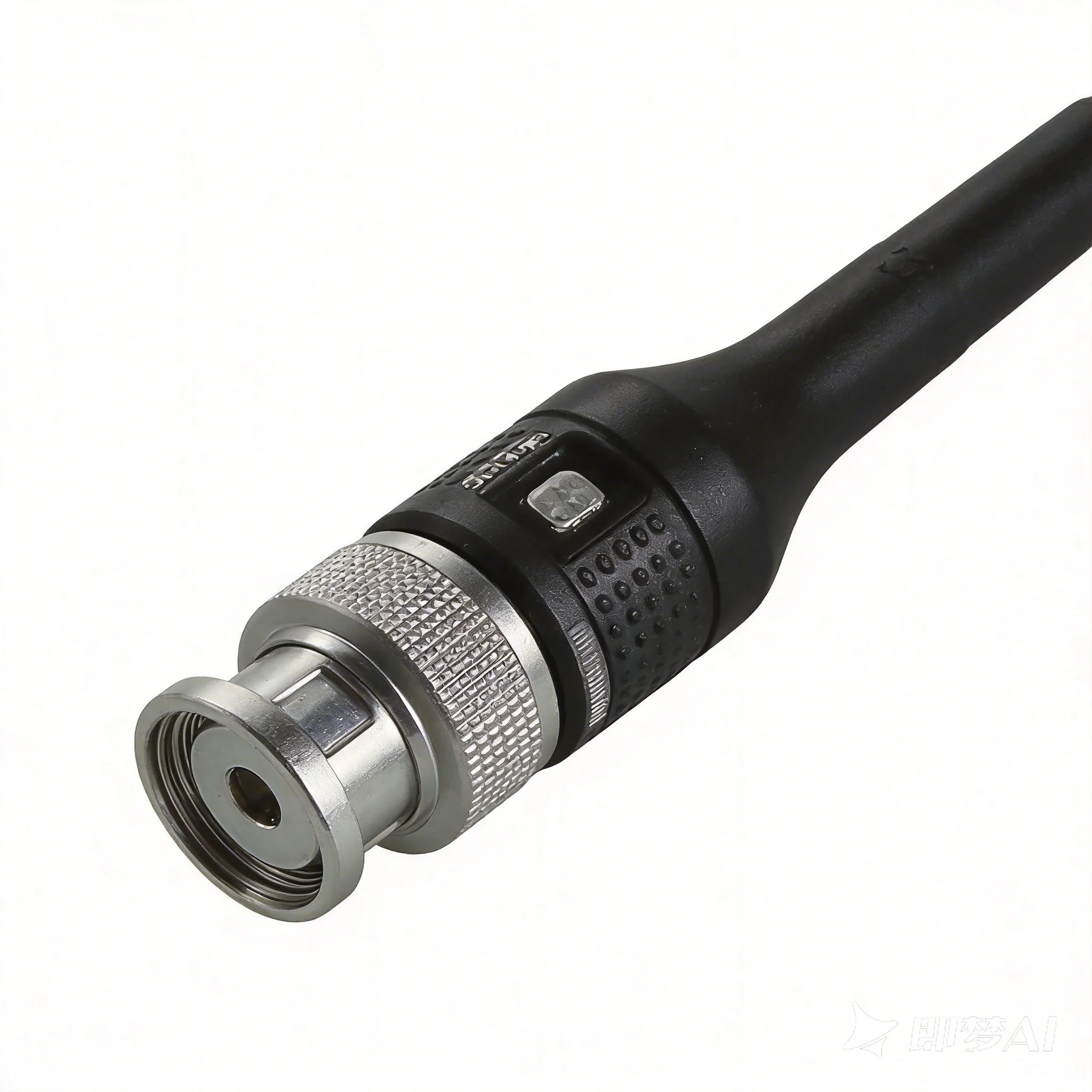

The element is a 50 ohm vertical radiator with an omnidirectional response and a 30 W power rating, matched across the 136-174 MHz region. A flexible outer jacket lets it flex and recover instead of snapping, and it terminates in a BNC or TNC male connector to suit common professional handhelds. The stubby form also lowers the centre of gravity of the radio so it sits better in a pocket or holster.

Best-Fit Scenarios

• Plainclothes and covert security details
• Dense indoor venues, retail floors and hospitality

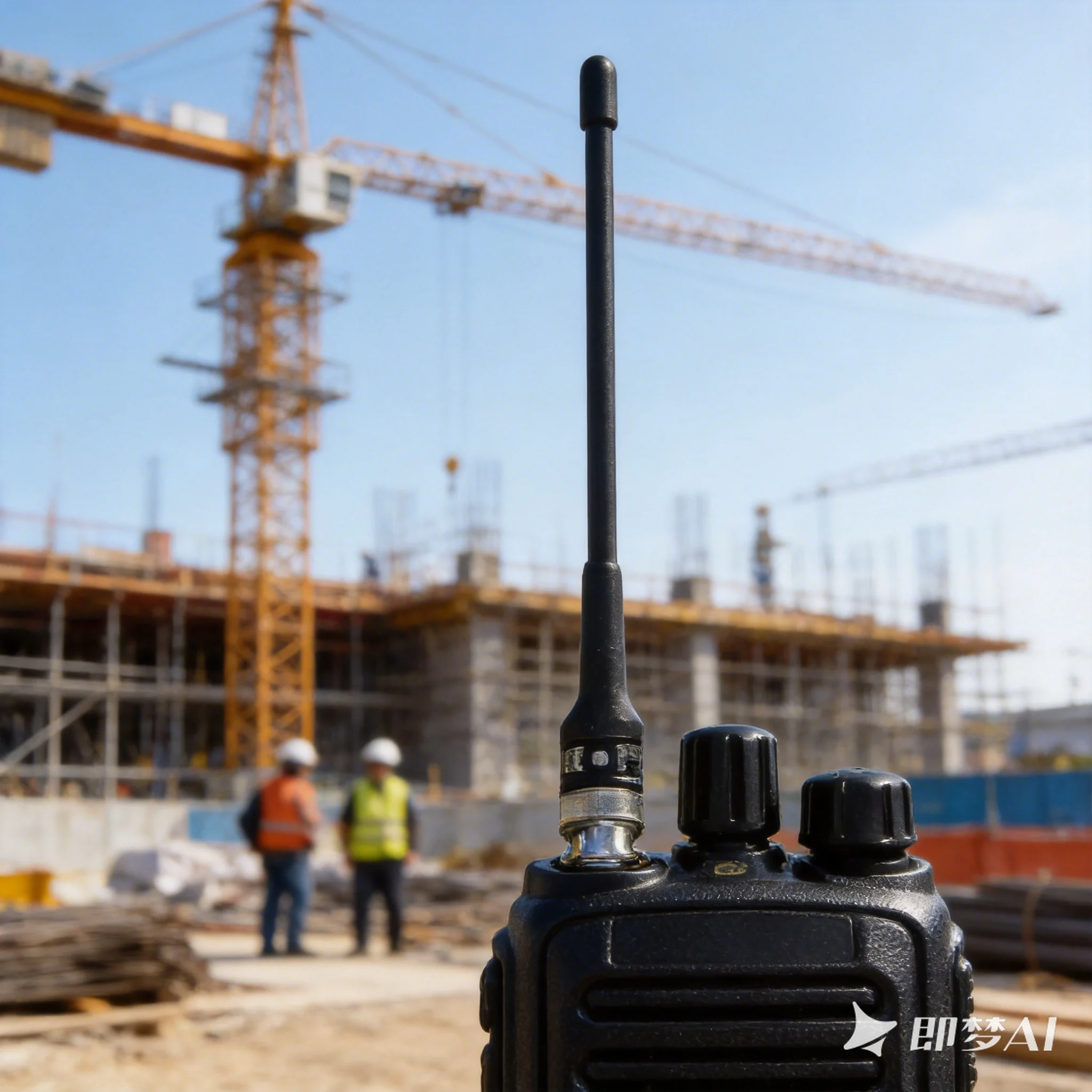

• Workers in tight spaces where a long whip is a hazard
• Any handheld where carry comfort beats maximum range

Selection Guidance

Choose GL-DYX150F when size and discretion matter most. Where you need more range, the 13 cm GL-DYX150A and 20 cm GL-DYX150L trade size for gain, and the SMA-fitted GL-DYX150S covers radios with that smaller jack. Verify the BNC or TNC male interface against your radio body before purchase.
