Terminal Antenna 1.5 dBi 156-162 MHz GL-DYX150SC
SKUGL-DYX150SC

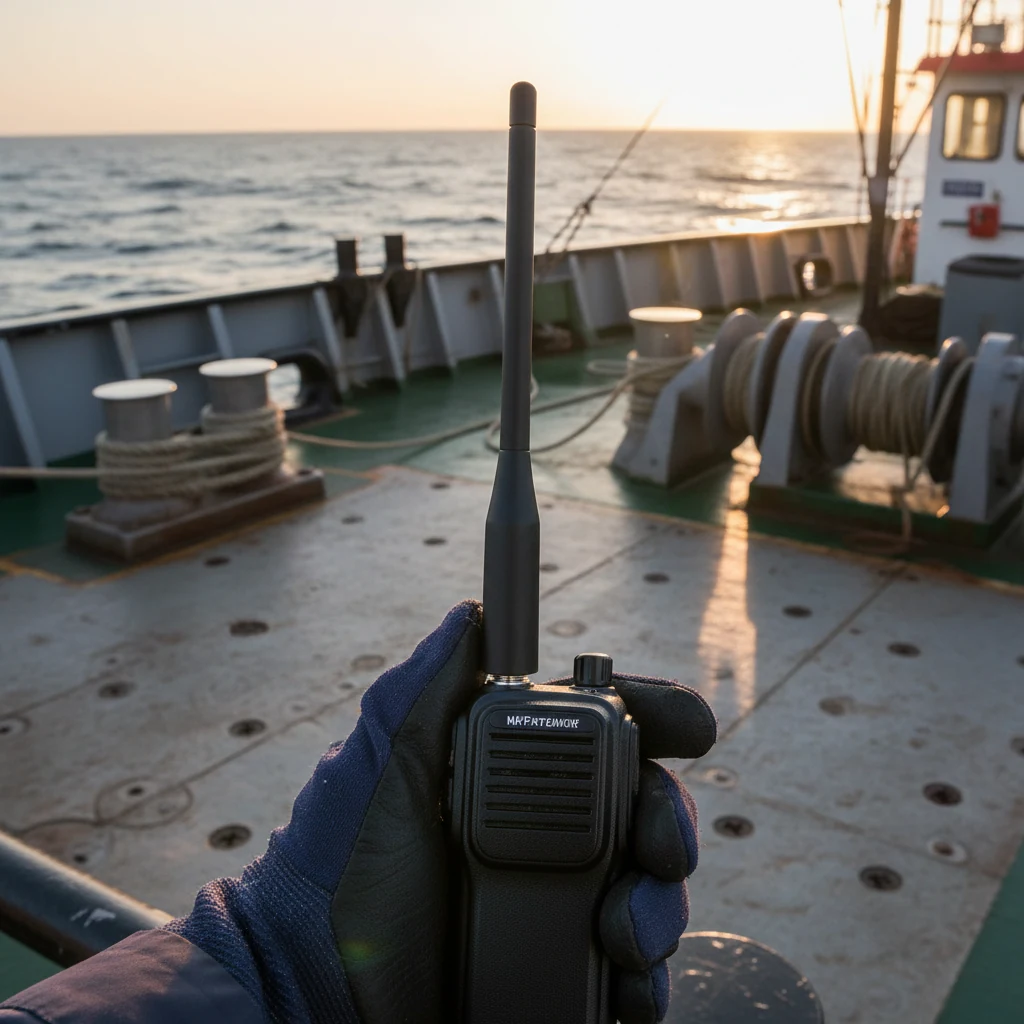

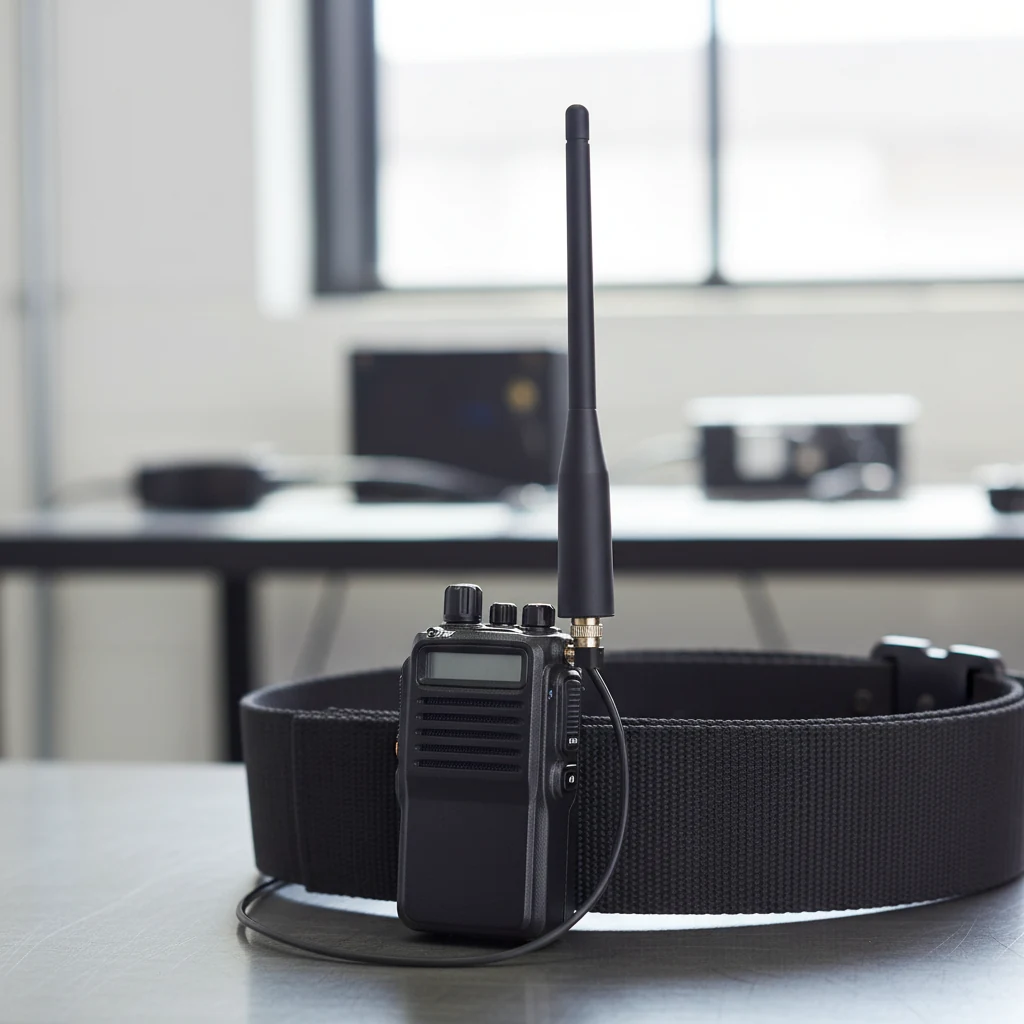

GL-DYX150SC is a 15 cm marine VHF handheld antenna for 156–162 MHz with an SMA male connection.
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL-DYX150SC covers the stated 156–162 MHz marine VHF range in a 15 cm terminal-antenna format. Its 6 MHz bandwidth is a useful distinction from VHF models supplied for narrower tuned channel sets. Confirm that the equipment channel plan fits that range before moving on to the mechanical interface.
The SMA male connection and the clearance around the equipment socket should both be checked, especially when the radio has a protective connector shroud. The antenna is specified for vertical polarization and a 30 W maximum input. A marine application label does not establish a waterproof rating for the connector or complete equipment assembly; confirm those environmental requirements separately when selecting a product for exposed use.
Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-DYX150SC | 156-162 MHz | 1.5 dBi | SMA male | View model |
| GL-DYX150S | 134-173 MHz | 1.8 dBi | SMA male | View model |
| GL450UI | 450-500 MHz | — | SMA male | |
| GL-DYX150A | 134-173 MHz | 1.8 dBi | BNC or TNC Male | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
