5G Magnetic Mount Omnidirectional Antenna | GLDYG832
SKUGLDYG832
GLDYG832 is a linear-polarized 5G magnetic mount antenna covering 896–960 MHz, 1710–2700 MHz and 3300–3800 MHz. It has a listed gain of 7 dBi, 50 Ohm impedance and VSWR below 1.5, with an SMA male connector on 3 m RG174 cable.
Values below come from the fields currently recorded for this model.
SKUGLDYG832
Frequency896-960 / 1710-2700 / 3300-3800 MHz
DimensionsDia. 48 × 355 mm
Gain7 dBi

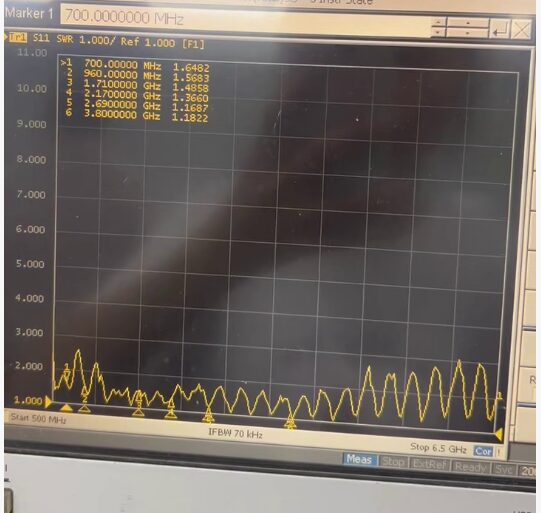

VSWR< 1.5
Normal impedance50 Ω
PolarizationLinear
Cable typeRG174
Cable length3 m
ConnectorSMA male
Antenna dimensionsDia. 48 × 355 mm
InstallationMagnetic mount
Vibration10 to 55 Hz with 1.5 mm amplitude, 2 hours
RoHSRoHS compliant
Operating temperature-40 to +85 °C
Humidity5 to 95 %
CategoryMagnetic Mount Antenna
Engineering selection guide
Product details
How this model fits the documented RF, interface and installation requirements.
Model context
Three separate bands, one defined installation
GLDYG832 is intended for RF designs whose operating frequency falls within one of three documented ranges: 896–960 MHz, 1710–2700 MHz or 3300–3800 MHz. These are separate ranges, so the exact system frequency should be checked against them before the antenna is selected.

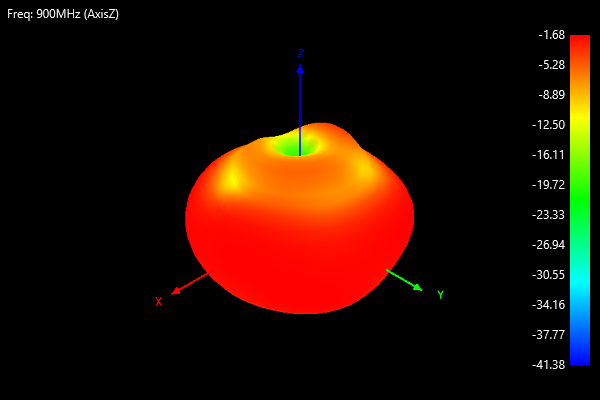

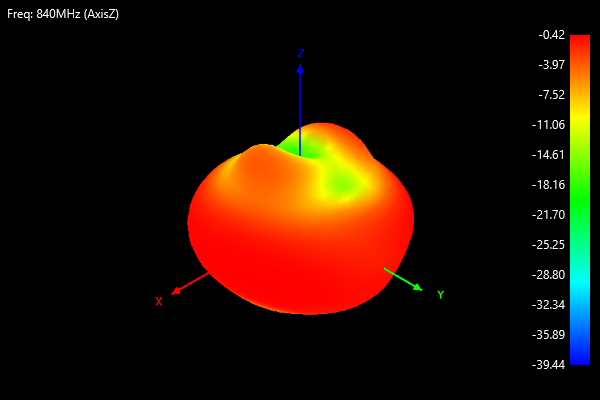

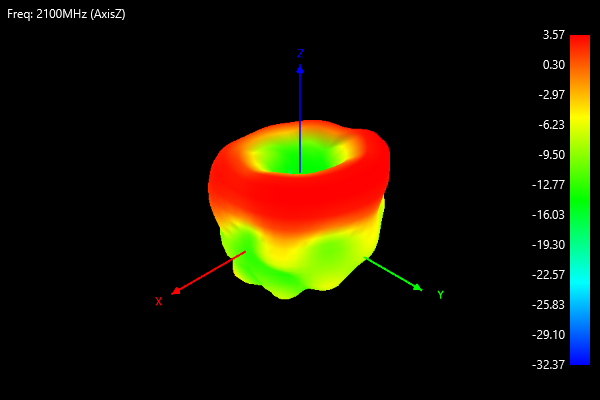

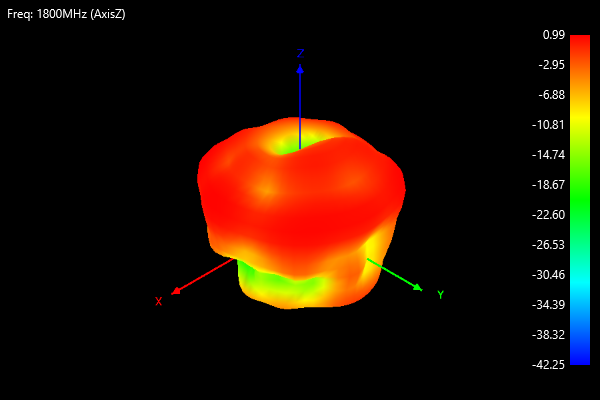

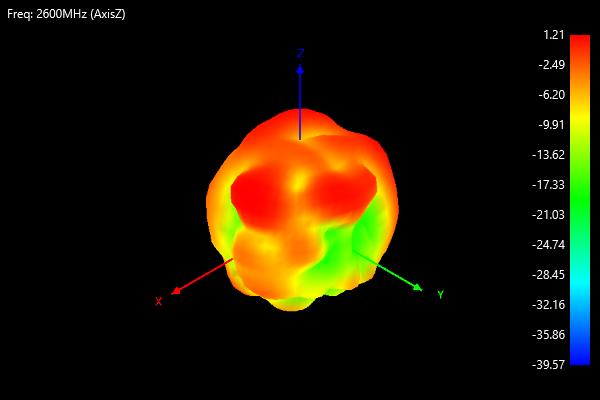

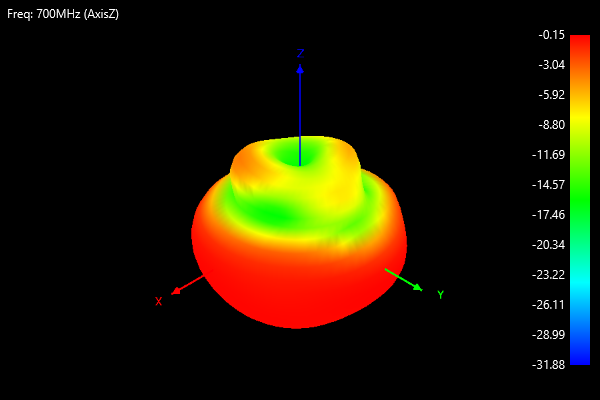

The antenna is omnidirectional with linear polarization, a listed gain of 7 dBi, 50 Ohm impedance and VSWR below 1.5. Its SMA male connector and 3 m RG174 cable define the mating interface and available cable reach.
The magnetic base determines the mounting method. The complete antenna measures Ø48 × 355 mm, operates from -40 to +85°C and is listed as RoHS compliant.
Band plan896–960 / 1710–2700 / 3300–3800 MHz
RF rating7 dBi · VSWR < 1.5 · 50 Ohm
Installed interfaceSMA male · 3 m RG174 · magnetic mount
Current documentation
Downloads
Files shown here are linked to this exact product record.
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→
Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
Match every required operating band, rather than relying only on a product-family name.
Check connector gender, cable route, mounting space and the interface on your device.
Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
