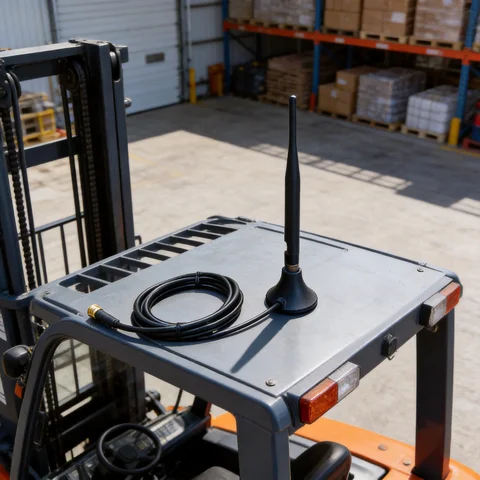

GL-DY091 magnetic mount antenna application scene 1

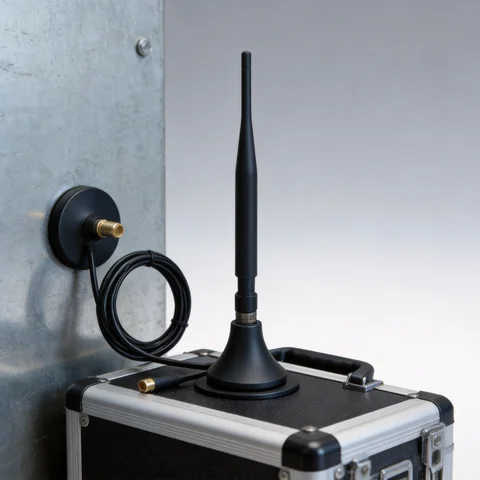

GL-DY091 magnetic mount antenna application scene 2

GL-DY091 magnetic mount antenna connector and mounting detail view

RF Product Magnetic Mount Antenna

GL-DY091 3.4-3.6GHz SMA male Magnetic Mount Antenna

Name: GL-DY091 3.4-3.6GHz SMA male Magnetic Mount Antenna
Brand: Rftech
SKU: GL-DY091

SKU GL-DY091

GL-DY091 is a magnetic mount antenna for vehicle, gateway, cabinet and temporary wireless installations. Its RF data lists 3400-3600 MHz operation, 5 dBi gain, vertical polarization, and VSWR ＜1.8. Mechanical selection should confirm SMA male connector, 241 dimensions, Magnet mounting against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40～＋85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.

SKU GL-DY091

Frequency 3400-3600

Dimensions 241

gain 5

polarization Vertical

vswr ＜1.8

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY091
Frequency	3400-3600
Dimensions	241
gain	5
polarization	Vertical
vswr	＜1.8
impedance	50
connector	SMA male
mounting	Magnet
temperature	-40～＋85
humidity	5～95
Category	Magnetic Mount Antenna

Product Overview

Key Features

Technical Specifications

Frequency Range	3400-3600
VSWR	＜1.8
Gain	5
Input Impedance	50
Polarization	Vertical
Connector Type	SMA male
Dimensions	241
Mounting	Magnet
Compliance	ROHS Compliant
Operating Temperature	-40～＋85
Humidity	5～95

Application Scenarios

GL-DY091 is suitable for vehicle, gateway, cabinet and temporary wireless installations. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY091 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY091 3.4-3.6GHz SMA male Magnetic Mount Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Magnetic Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY091).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
