Frequency450-470 MHz
Bandwidth20 MHz
Gain4 dBi
VSWR≤2.0
Input impedance50 Ω
PolarizationVertical
Maximum Input Power20 W
RF Product · Rubber Duck Antenna
Flexible Whip Antenna 450-470 MHz GLQT450GT
SKUGLQT450GT

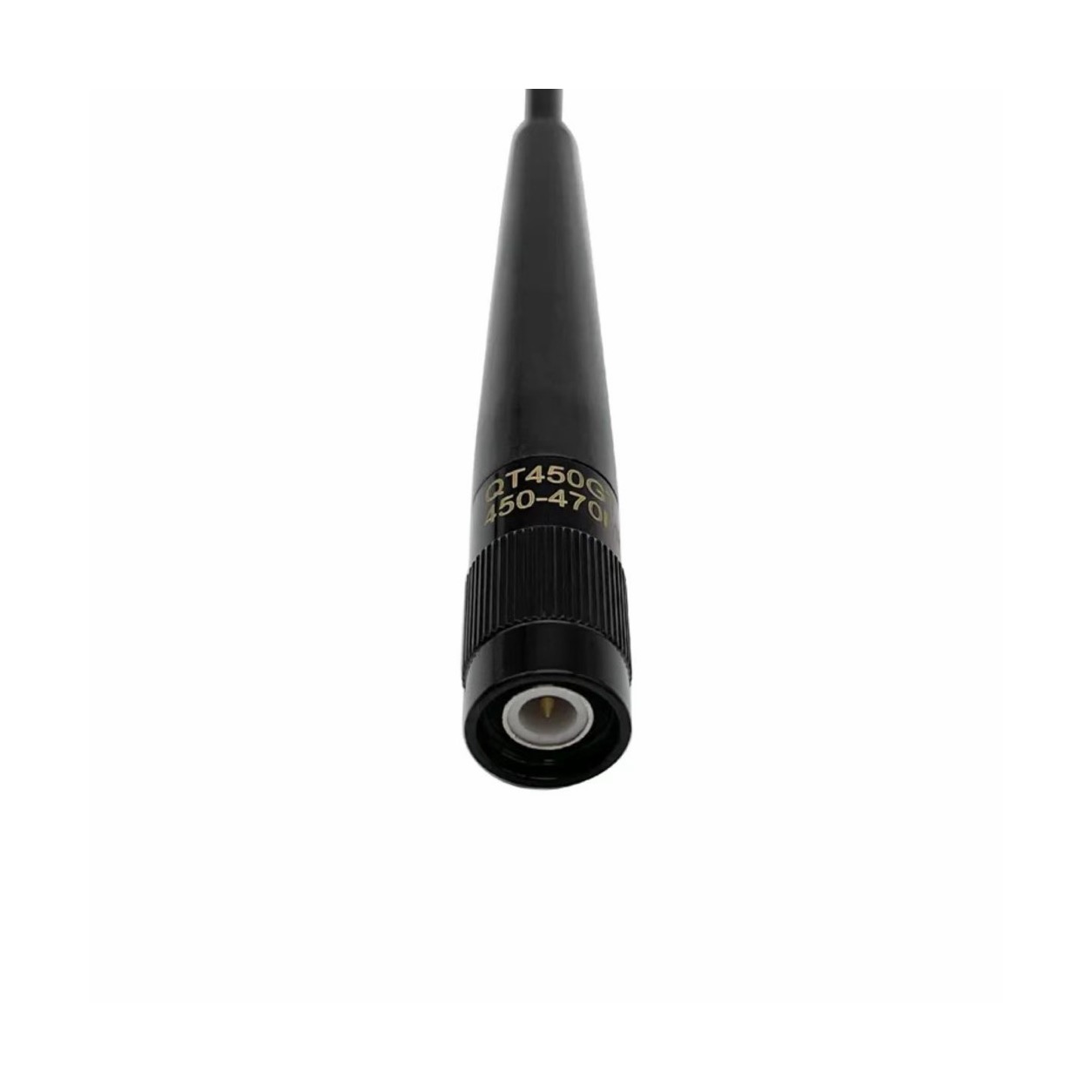

GLQT450GT is a 450-470 MHz flexible whip antenna with 4 dBi gain, vertical polarization, VSWR ≤2.0, 305 mm length and TNC male connector.
450-470 MHzLength 305 mmTNC male
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Specifications
Technical specifications
Review the specifications for this model.SKUGLQT450GT
Frequency450-470 MHz
DimensionsLength 305 mm
ConnectorTNC male
MountingConnector Mount
Application450-470 MHz portable radios
Bandwidth20 MHz
Gain4 dBi
VSWR≤2.0
Input impedance50 Ω
PolarizationVertical
Maximum Input Power20 W
Antenna Length305 mm
ColorBlack
WeightApprox. 50 g
Rated Wind Speed90 km/h
ConstructionFlexible fiberglass
CategoryRubber Duck Antenna
Product information
Product details
Compare RF performance, dimensions and installation requirements.DimensionsLength 305 mm
ConnectorTNC male
MountingConnector Mount
Antenna Length305 mm
ColorBlack
WeightApprox. 50 g
Rated Wind Speed90 km/h
SKUGLQT450GT
Application450-470 MHz portable radios
ConstructionFlexible fiberglass
CategoryRubber Duck Antenna
Current documentation
Downloads
Download technical documents for this model.Typical applications
Applications
Consider these applications when selecting your antenna.Same product family
Related models
Compare related models and their specifications.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GLQT450GT | 450-470 MHz | 4 dBi | TNC male | |
| GLRD174 | 136-174 MHz | 1.8 dBi | SMA Male | |
| GL-DY402 | 2400–2483 MHz | 2.5 dBi | — | |
| GL-DY4021 | 433 | 2.5 dBi | — |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
Discuss your antenna requirements
Send the model, operating band and installation requirements. We will review the configuration and confirm pricing, samples and delivery for your project.
