Yagi or LPDA? Both are directional antennas, so the choice is rarely about “which points better” — it is about how wide a band you need behind that beam. A focused UHF Yagi like the GL-DYU4YG3S covers a single 380–470 MHz window with a tight VSWR of ≤ 1.5, while a wideband LPDA like the GL-DY7038V11 holds a directional beam from 698 MHz all the way to 3.8 GHz at 11 dBi. That gap in frequency range is where the decision actually lives.
Most teams already know they want something directional. What they have not pinned down is whether they need a band-focused part or a flexible wideband one — and that is exactly what Yagi vs LPDA comes down to.

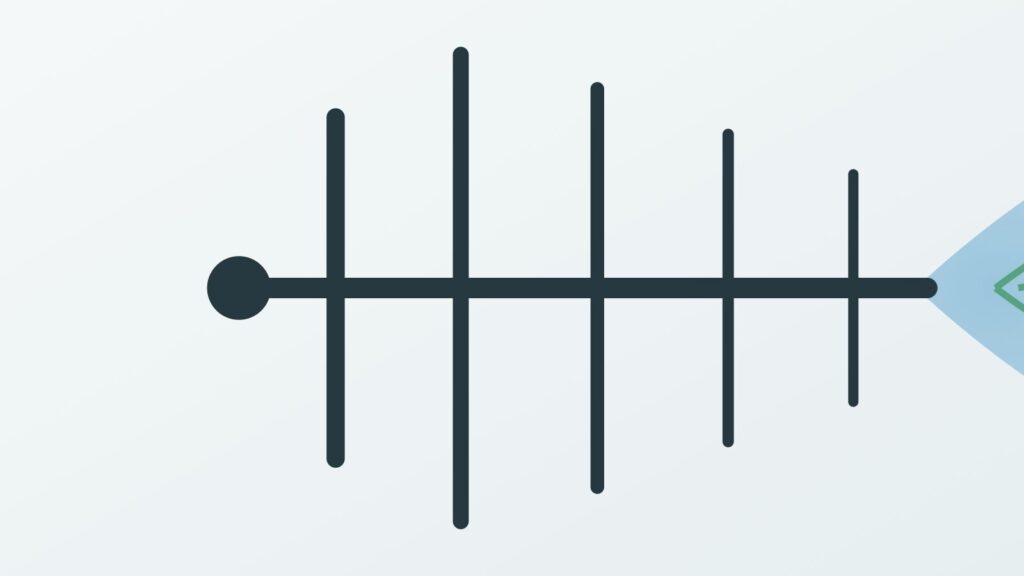

What is a Yagi antenna?
A Yagi is built around a driven element plus a reflector and one or more directors. Those parasitic elements squeeze the pattern into a tight forward beam, which is why a Yagi delivers strong, focused gain inside a relatively narrow band.
Take the GL-DYU4YG3S as a real example: 380–470 MHz, VSWR ≤ 1.5, selectable vertical or horizontal polarization, N-female, rated −40 to +70 °C. That tight VSWR and single UHF window are typical Yagi territory — it is optimised to do one band very well. Yagis show up in:
- Pointed outdoor links to a fixed target
- UHF/VHF two-way and telemetry paths
- Narrowband directional deployments
- Sites where the signal direction is known and stable

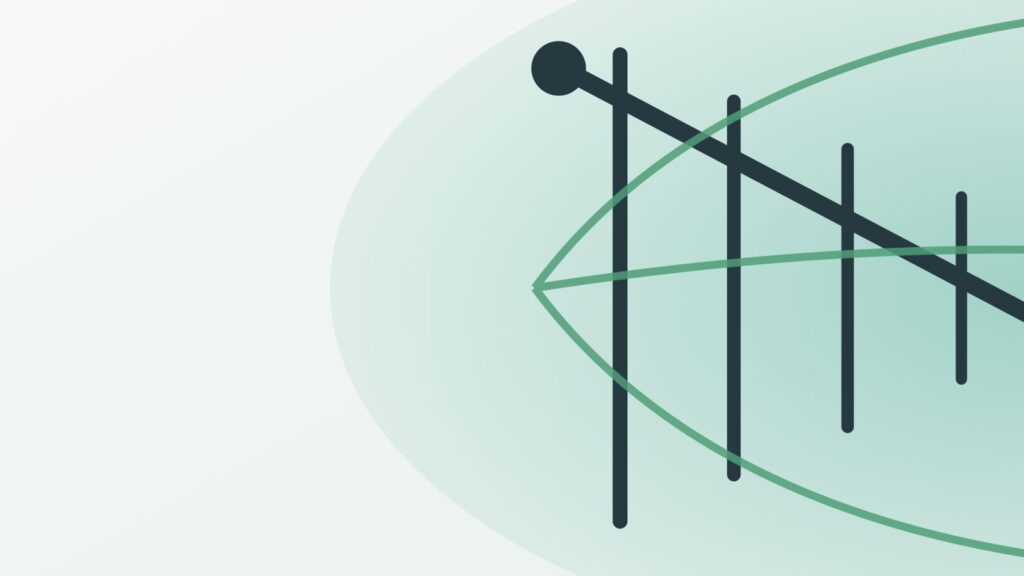

What is an LPDA antenna?
An LPDA — log-periodic dipole array — is also directional, but its scaled element pattern keeps it working across a far wider span. The GL-DY7038V11, for instance, covers 698–960 / 1710–2700 / 3300–3800 MHz at 11 dBi with a 90° horizontal / 60° vertical beam. One antenna, most of the cellular and sub-6 GHz range. That makes LPDAs the default for:
- Multi-band outdoor deployments
- Donor signal pickup over a wide window
- Broadband RF and backhaul projects
- Test and monitoring where bands change between measurements
The real difference is not that one points and the other also points. It is how each design trades directivity, frequency range and flexibility.
Yagi vs LPDA antenna: real-spec comparison
Two RFTECH parts make the trade concrete:
| Spec | GL-DYU4YG3S (Yagi) | GL-DY7038V11 (LPDA) |
|---|---|---|
| Design | Driven + reflector + directors | Log-periodic dipole array |
| Frequency | 380–470 MHz (one UHF window) | 698–960 / 1710–2700 / 3300–3800 MHz |
| Bandwidth | Narrow (~90 MHz) | Very wide (0.7–3.8 GHz) |
| Gain | High in-band (see datasheet) | 11 dBi |
| VSWR | ≤ 1.5 | < 2.0 |
| Polarization | Vertical or horizontal | Vertical |
| Beamwidth | Narrow (see datasheet) | 90° H / 60° V |
| Connector | N-female | N-female |
| Operating temp | −40 to +70 °C | −40 to +65 °C |
The line that matters most is frequency. The Yagi gives you a tighter match (VSWR ≤ 1.5) and focused performance inside one band; the LPDA trades a little of that for covering roughly 700 MHz to 3.8 GHz from a single part. Neither is “better” — they answer different briefs.
When a Yagi is the better choice
A Yagi wins when the operating band is defined and the direction is fixed. In those conditions it gives the focused, low-VSWR path engineers want for remote or point-to-point work.
Choose a Yagi when:
- The target direction is well known and stable
- You operate in one defined band (e.g. a UHF channel)
- You want maximum focused gain and a tight match in that band
- Site geometry is predictable
A UHF Yagi like the GL-DYU4YG3S is most useful when the coverage problem is precise rather than broad.
When an LPDA is the better choice
An LPDA wins when you still need directional control but cannot live inside one narrow window. In multi-band infrastructure, that frequency flexibility is usually the deciding factor.
Choose an LPDA when:
- The band plan spans several bands
- You want directional control without locking to one channel
- Future band flexibility matters
- Donor pickup or broadband directional reception is part of the design
An LPDA like the GL-DY7038V11 keeps the beam while opening up the usable range.
How to read gain in this comparison
Do not compare a single headline gain number and stop. Gain only means something alongside band coverage, beam shape and the coverage objective — a high-gain Yagi that covers the wrong band is no use, and an LPDA’s 11 dBi only helps if its beam fits the site. For the underlying idea, what antenna gain means is the right companion read.

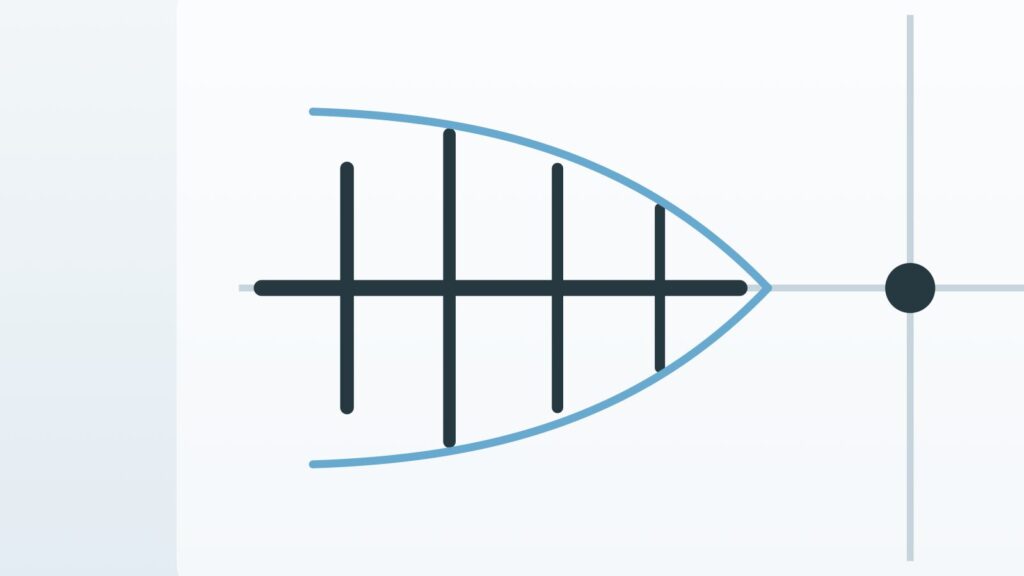

Which one wins by scenario
Fixed directional path in one band
For a fixed remote target on a known channel — a UHF link, for example — a Yagi usually makes more sense.
Broadband donor or multi-band outdoor planning
If the directional need stays but the frequency window is wide, the LPDA takes the lead.
Infrastructure and DAS-related planning
Where directional donor behaviour meets coverage architecture, 5G small cell and DAS antenna solutions helps frame the surrounding system design.
Common mistakes in Yagi vs LPDA selection
Choosing by familiarity
Some buyers default to “Yagi” because the word is familiar, even when the project needs the LPDA’s wider usable range.
Choosing by bandwidth alone
Others overvalue bandwidth and forget that beam focus and mounting geometry still decide field results.
Ignoring the real objective
The project does not need a “better antenna type”; it needs the directional design that matches the actual signal path and band plan.
Bandwidth or beam focus?
It comes down to band width behind the beam: a Yagi (like the 380–470 MHz GL-DYU4YG3S) wins when the directional need is focused and single-band; an LPDA (like the 698–3800 MHz, 11 dBi GL-DY7038V11) wins when directional control has to come with broad frequency coverage. For a real deployment, send your target bands, mounting conditions and link objective when you request a quote.
Frequently asked questions
What is the main difference between a Yagi and an LPDA antenna?
Bandwidth. A Yagi is tuned for high, focused gain in a narrow band (the GL-DYU4YG3S covers 380–470 MHz), while an LPDA holds a directional beam across a very wide range (the GL-DY7038V11 spans 698 MHz to 3.8 GHz). Both are directional; the LPDA simply trades a little peak performance for range.
Does a Yagi have more gain than an LPDA?
Within its design band a Yagi can show higher peak gain because all its energy is concentrated there. Across a wide range, the LPDA holds more consistent gain (11 dBi for the GL-DY7038V11). So “more gain” depends entirely on whether you compare inside one band or across many.
Can an LPDA replace a Yagi?
Often, if you need multi-band coverage from one antenna. If you only operate in a single narrow band and want the tightest match and highest focused gain, a Yagi is usually the cleaner, lower-VSWR choice (the GL-DYU4YG3S is rated VSWR ≤ 1.5).
Which is better for a point-to-point link?
If the link sits in one band, a Yagi’s focused beam and tight match are ideal. If the link must work across several bands, or the band plan may change, an LPDA gives directional control with far more frequency headroom.
Are Yagi and LPDA antennas weatherproof for outdoor use?
Both RFTECH examples are built for outdoor service — the GL-DYU4YG3S is rated −40 to +70 °C and the GL-DY7038V11 −40 to +65 °C. As with any outdoor antenna, weatherproof the connector and confirm the mounting hardware suits your pole or wall.
