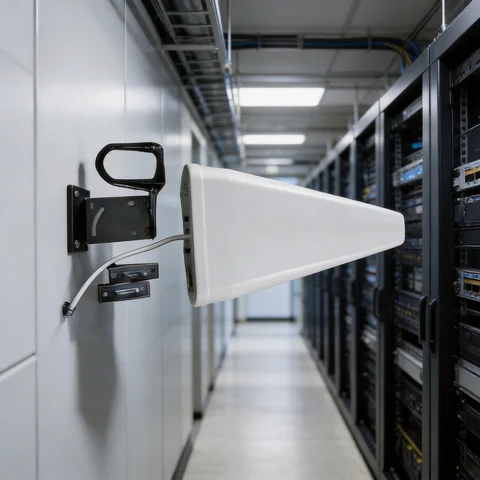

GL-DY7038V11 LPDA antenna application scene 1

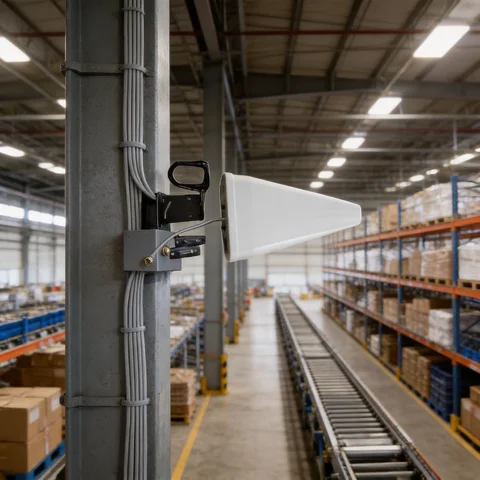

GL-DY7038V11 LPDA antenna application scene 2

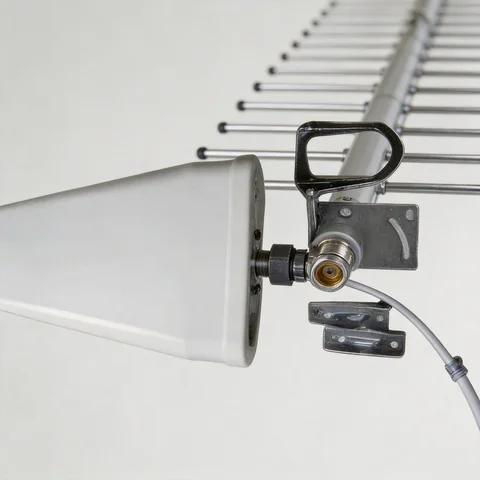

GL-DY7038V11 LPDA antenna connector and mounting detail view

RF Product LPDA Antenna

GL-DY7038V11 698-3800MHz N-K Lpda Antenna for RF Systems

Name: GL-DY7038V11 698-3800MHz N-K Lpda Antenna for RF Systems
Brand: Rftech
SKU: GL-DY7038V11

SKU GL-DY7038V11

GL-DY7038V11 is a LPDA antenna for 2G/3G/4G/5G/WLAN Wireless System. Its RF data lists 698-960MHz/1710-2700MHz/3300-3800MHz MHz operation, 11dbi dBi gain, vertical polarization, and VSWR ＜2.0≤2.0/1.5/2.2. Mechanical selection should confirm N-K connector, 440×210×65mm dimensions against the installation plan. Design details include 1.broadband; 2.sealed with radome, strong protection ability., giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY7038V11

Frequency 698-960MHz/1710-2700MHz/3300-3800MHz

Dimensions 440×210×65mm

gain 11dbi

polarization Vertical

vswr ＜2.0≤2.0/1.5/2.2

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY7038V11
Frequency	698-960MHz/1710-2700MHz/3300-3800MHz
Dimensions	440×210×65mm
gain	11dbi
polarization	Vertical
vswr	＜2.0≤2.0/1.5/2.2
connector	N-K
temperature	-40°C to +65 °C
Category	LPDA Antenna

Product Overview

Key Features

1.Broadband
2.Sealed with radome, Strong protection ability.
LPDA Antenna

Technical Specifications

Frequency Range	698-960MHz/1710-2700MHz/3300-3800MHz
Gain	11dbi
VSWR	＜2.0≤2.0/1.5/2.2
Polarization	Vertical
Horizontal Beamwidth	90°
Vertical Beamwidth	60°
Maximum Input Power	50W
Lightning Protection	DC Ground
Connector Type	N-K
Radiating Element Material	AI
Radome Material	ABS
Operating Temperature	-40°C to +65 °C

Application Scenarios

GL-DY7038V11 is suitable for 2G/3G/4G/5G/WLAN Wireless System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY7038V11 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY7038V11 698-3800MHz N-K Lpda Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the LPDA Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY7038V11).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
