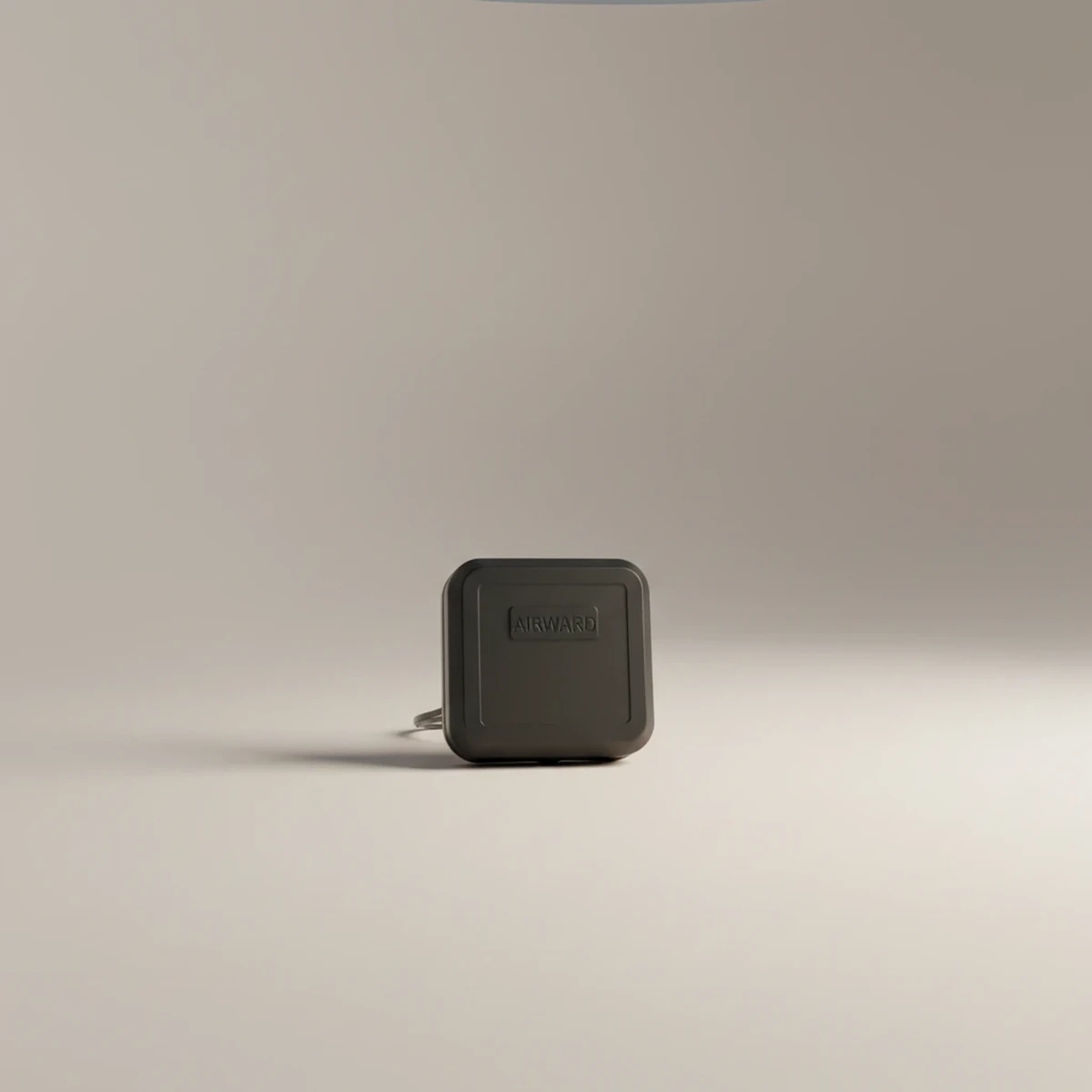

GL-DY010M WiFi Combo Antenna main product image

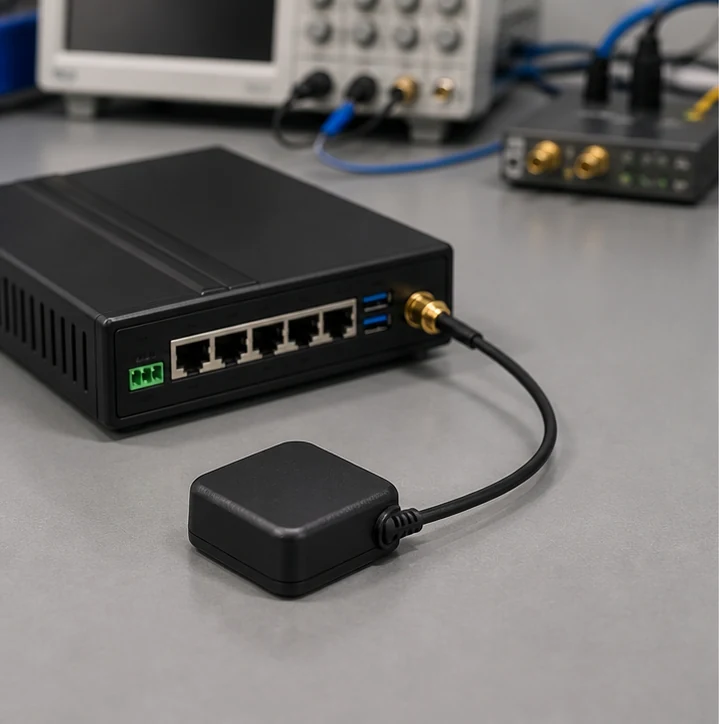

GL-DY010M WiFi Combo Antenna application scene 1

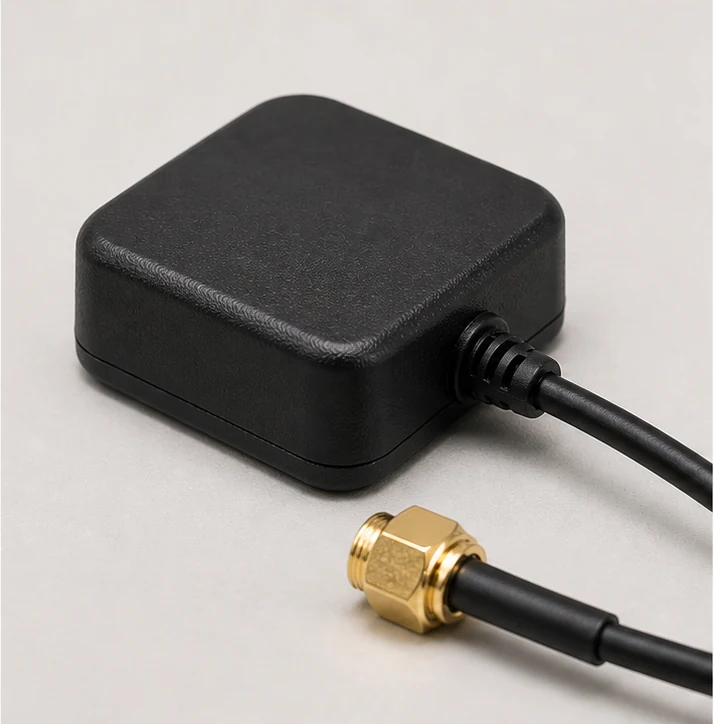

GL-DY010M WiFi Combo Antenna application scene 2

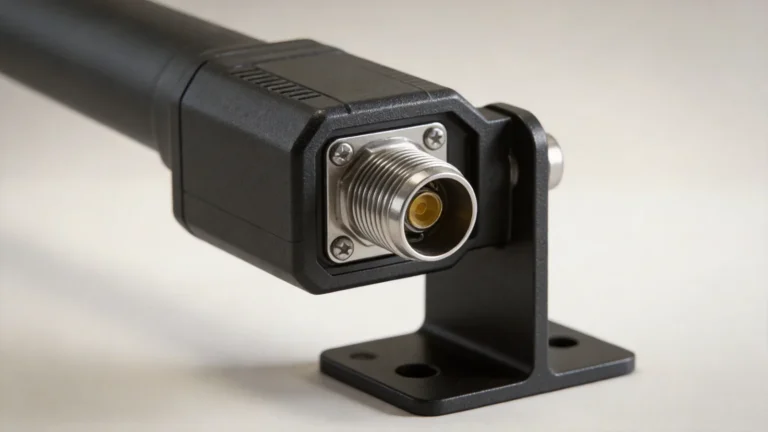

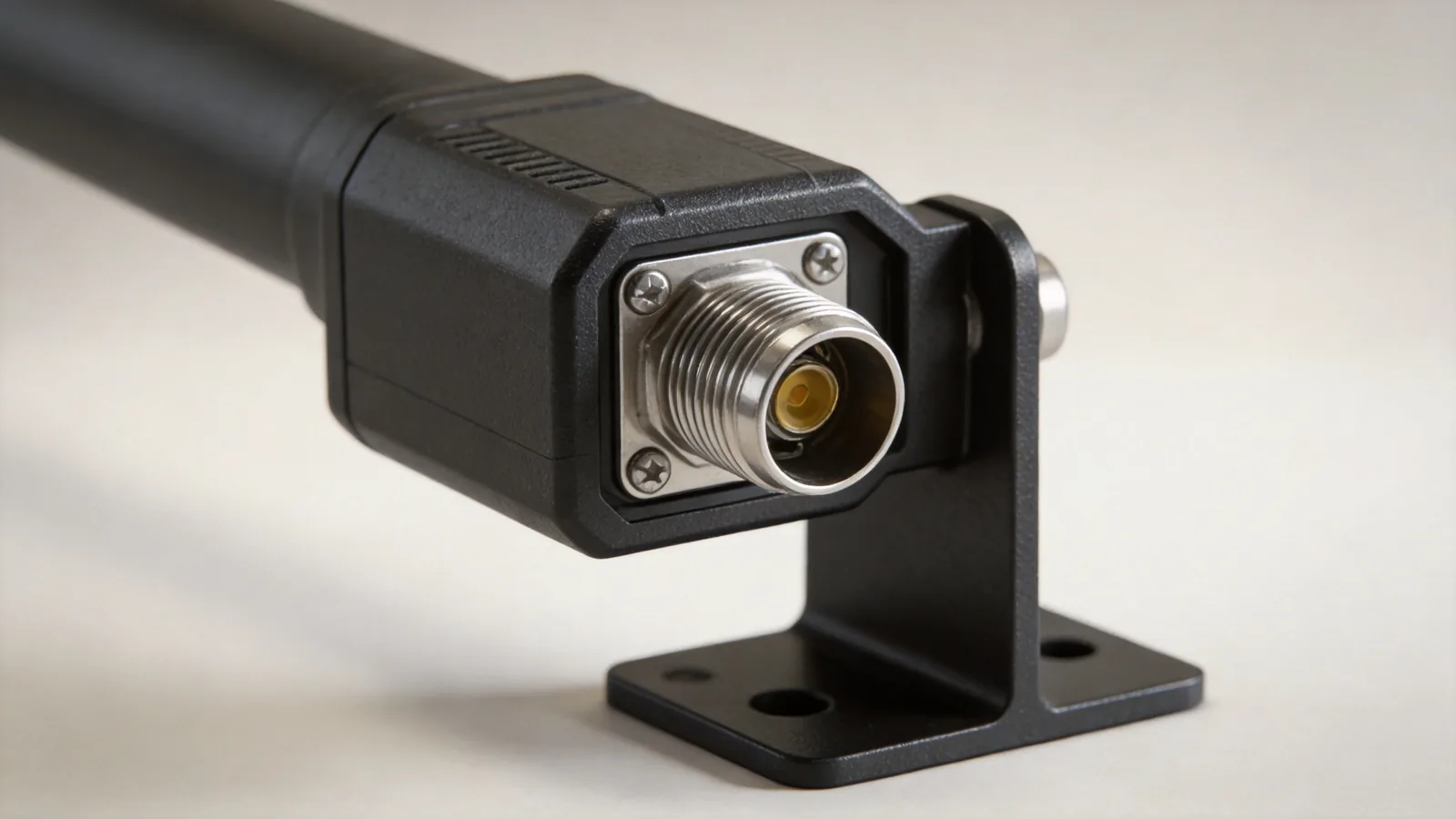

GL-DY010M WiFi Combo Antenna connector and mounting detail view

RF Product Combo Antennas

GL-DY010M 2400-5825MHz SMA/MCX/FAKRA Wifi Combo Antenna

Name: GL-DY010M 2400-5825MHz SMA/MCX/FAKRA Wifi Combo Antenna
Brand: Global RF Tech
SKU: GL-DY010M

SKU GL-DY010M

GL-DY010M is a WiFi Combo Antenna for RF systems, IoT devices, gateways and custom wireless projects. Its RF data lists 2400-2500/4900-5825 MHz operation, 3.0 dBi gain, liner polarization, and VSWR ＜2.5. Mechanical selection should confirm SMA/MCX/FAKRA connector, Φ71.5×14.5,M12 dimensions, Adhesive/Magnet mounting against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40～＋85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY010M

Frequency 2400-2500/4900-5825

Dimensions Φ71.5×14.5,M12

gain 3.0

polarization Liner

vswr ＜2.5

Request Quote Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY010M
Frequency	2400-2500/4900-5825
Dimensions	Φ71.5×14.5,M12
gain	3.0
polarization	Liner
vswr	＜2.5
connector	SMA/MCX/FAKRA
mounting	Adhesive/Magnet
temperature	-40～＋85
humidity	5～95
Category	Combo Antennas

Product Overview

Key Features

Technical Specifications

Frequency Range	2400-2500/4900-5825
Gain	3.0
VSWR	＜2.5
Polarization	Liner
Connector Type	SMA/MCX/FAKRA
Dimensions	Φ71.5×14.5,M12
Mounting	Adhesive/Magnet
Compliance	ROHS Compliant
Operating Temperature	-40～＋85
Humidity	5～95

Application Scenarios

GL-DY010M is suitable for RF systems, IoT devices, gateways and custom wireless projects. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY010M technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY010M 2400-5825MHz SMA/MCX/FAKRA Wifi Combo Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Combo Antennas category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY010M).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
