Multi-band integration
Combination Antennas (GNSS + Cellular + Wi-Fi)
A combination antenna puts several radios under one screw-mount housing. One hole in the roof instead of three, one gasket to worry about instead of three, and one part number on the bill of materials. The trade is that you have to be precise about what is inside it.
Selection framework
Choose by function combination
Combine only the functions you use, then match the GPS element, mount and connectors to the device.
Which combination
GNSS plus two LTE paths for telematics (GL-DY046M). GNSS plus LTE plus dual-band Wi-Fi for connected gateways (GL-DY056). LTE plus 2.4 GHz Wi-Fi for dual-radio terminals (GL-DY058W).
Active GPS element
GL-DY046M and GL-DY056 both use an active GNSS element, so the host has to supply bias on the coax. Confirm the voltage and current it can deliver before assuming a swap works.
Mount
All three models here are screw mount. Check hole size, panel thickness and how much clearance exists underneath, because three RG174 tails need somewhere to go.
Connectors per port
Usually one SMA male per function, but read the record: GL-DY058W lists a single SMA male, not two separate feeds. Do not design around an assumed feed count.
Applications
Designed around real deployments
Telematics & fleet
Tracking and connected-vehicle terminals.
IoT gateways
M2M devices needing positioning plus connectivity.
Connected vehicle
V2X and in-vehicle multi-radio platforms.
Current catalog
GNSS integration
Need help choosing a GNSS or patch antenna?
Tell us your device size, ground plane, constellation, cable and mounting requirements. We can help match active, passive or embedded GNSS antenna options.
Featured matching products
Selected from existing Global RF Tech product pages. Open a model for its full specification and integration details.
GPS + cellular
GL003C
Telematics and tracking
- Frequency
- 1575.42-1610 / 806-2690 MHz
- Connector
- 2 x SMA
- Type
- GPS + cellular
GPS + cellular
GL-DY003C
Telematics terminals
- Frequency
- 1575.42-1610 / 806-2690 MHz
- Connector
- 2 x SMA
- Type
- Combination
Cellular + Wi-Fi
GL-DY604
Dual-radio routers and CPE
- Frequency
- 4900-5825 MHz
- Connector
- SMA female
- Type
- Cellular + Wi-Fi

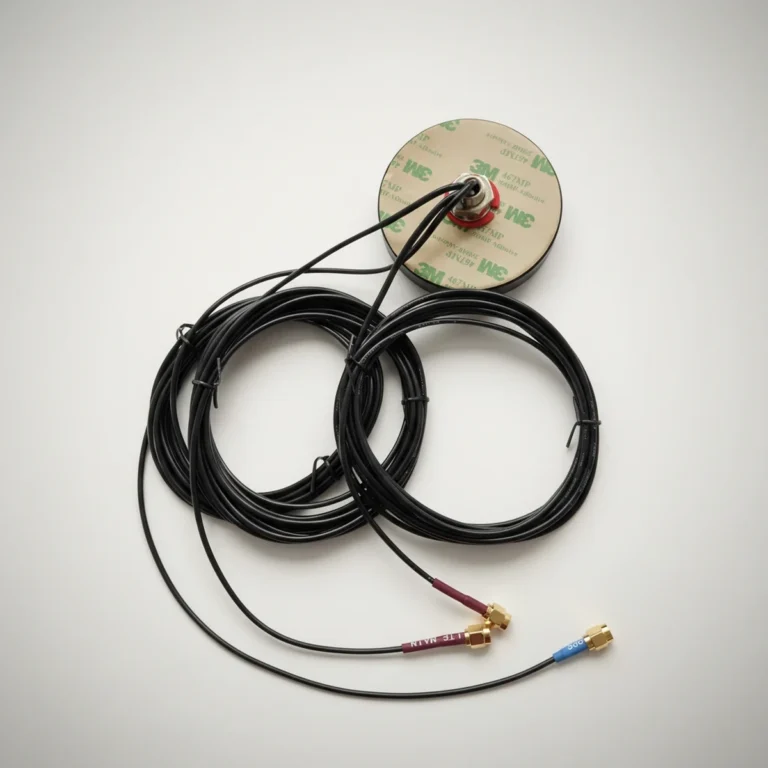

GNSS + dual LTE
GL-DY046M
Active GNSS, two LTE paths, screw mount
- Frequency
- GNSS + 2 × 806-2690 MHz
- Connector
- 3 × SMA male
- Mount
- Screw

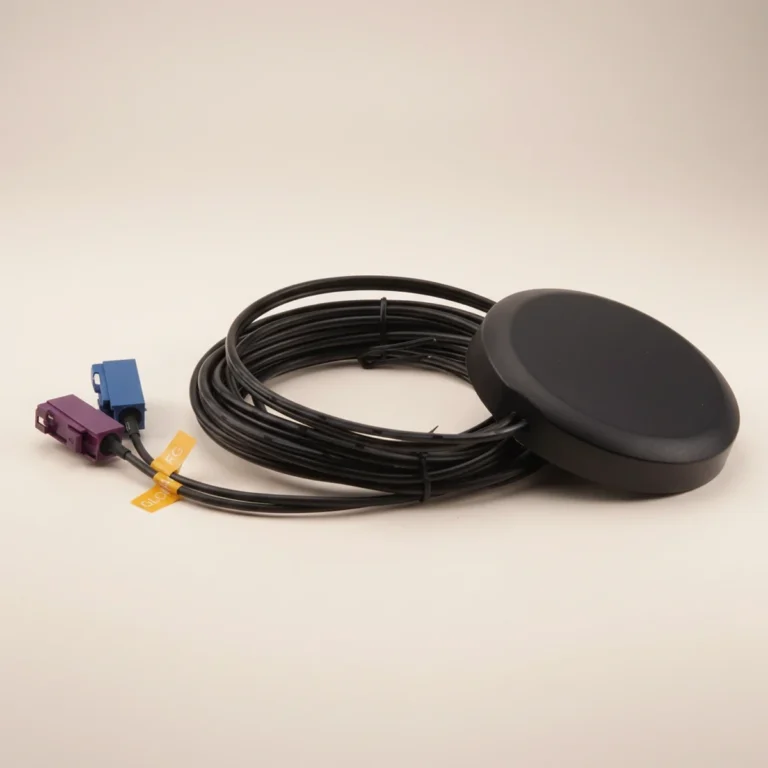

GPS/GLONASS + 4G
GL-DY055
Magnetic antenna for tracking terminals
- Frequency
- 1575.42-1602 + 698-2690 MHz
- Connector
- Fakra or SMA
- Mount
- Magnetic
GNSS + LTE + WiFi
GL-DY056
Three-radio screw-mount antenna
- Frequency
- GNSS + LTE + 2.4/5 GHz WiFi
- Connector
- 3 × SMA male
- Mount
- Screw

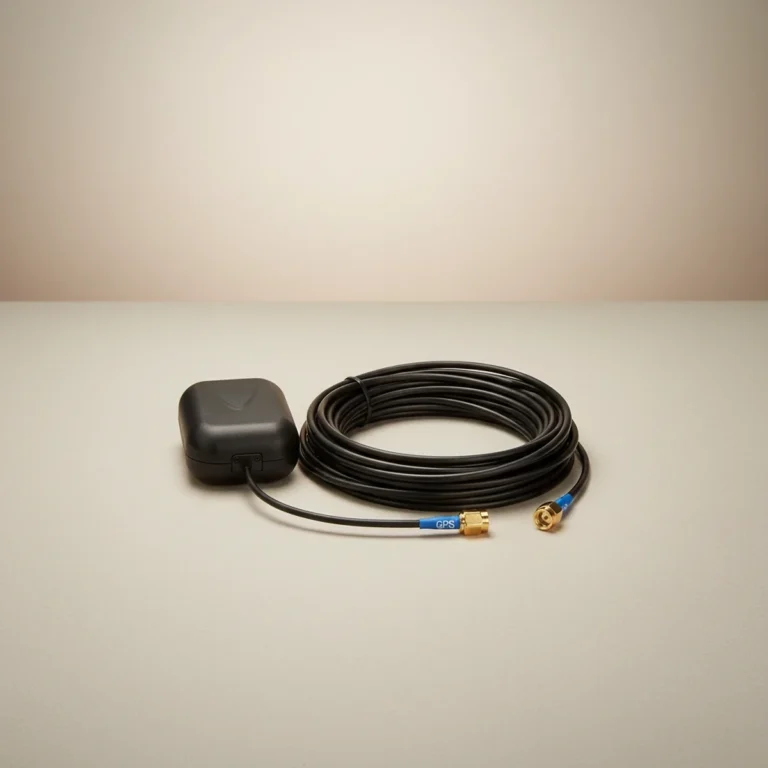

GPS/GLONASS + LTE
GL-DY057
Compact magnetic combination antenna
- Frequency
- 1575.42-1610 + 806-2690 MHz
- Connector
- SMA male
- Mount
- Magnetic
LTE + 2.4 GHz WiFi
GL-DY058W
Non-GNSS screw-mount option
- Frequency
- 806-2690 + 2400-2483.5 MHz
- Connector
- SMA male
- Mount
- Screw
Keyword coverage: combination antenna / combined gps antenna / combo antenna / gps cellular wifi antenna / multi-band antenna / 2-in-1 antenna
Frequency detail
The bands that decide it
GL-DY046M
Active GNSS at 1575.42-1610 MHz plus two LTE elements covering 806-960 and 1710-2690 MHz, on three SMA male connectors with 3000 mm RG174 cables. The one to look at for a vehicle terminal that needs tracking and a 2×2 cellular link.
GL-DY056
Active GNSS at 1559-1606 MHz, LTE at 796-960 and 1710-2700 MHz, Wi-Fi at 2400-2483.5 and 5150-5850 MHz, on three SMA male connectors. Confirm your bands sit inside those ranges rather than just near them.
GL-DY058W
LTE at 806-960 and 1710-2690 MHz plus Wi-Fi at 2400-2483.5 MHz. The product record lists one SMA male. We will not guess how the two radios are combined internally, so treat the feed architecture as a sample question.
Common mistake
A multi-radio puck is not a 4×4 MIMO antenna
Several radio functions sharing one puck is not 4×4 MIMO. A real four-path cellular or Wi-Fi requirement needs four RF paths on the same radio, and that lives in the 4×4 MIMO antenna range. If your device mixes LTE, Wi-Fi and GNSS, count the paths for each radio separately and send us that list.
Sealing
Where the IP rating stops
All three models are listed as IP65-IP67 excluding the cable outlet. That exclusion is not fine print we can quietly drop. The housing is sealed; the point where the cables leave it is your installation’s problem, and so is the panel it sits on. Define which boundary your specification actually tests: housing, connector, cable outlet, feedthrough or the whole installed system.
