SMA male GPS/GNSS Antenna for RF 806-5850MHz GL-DY046
SKUGL-DY046

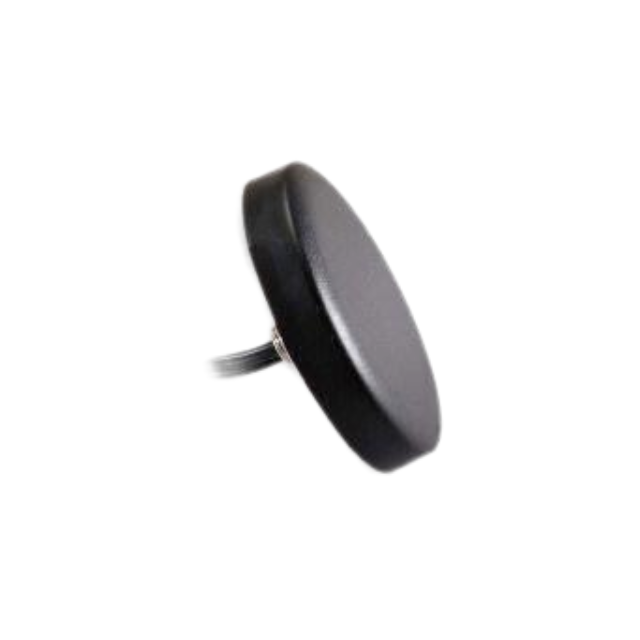

A screw-mounted combination antenna that brings GNSS, cellular and Wi-Fi bands into one housing.
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details

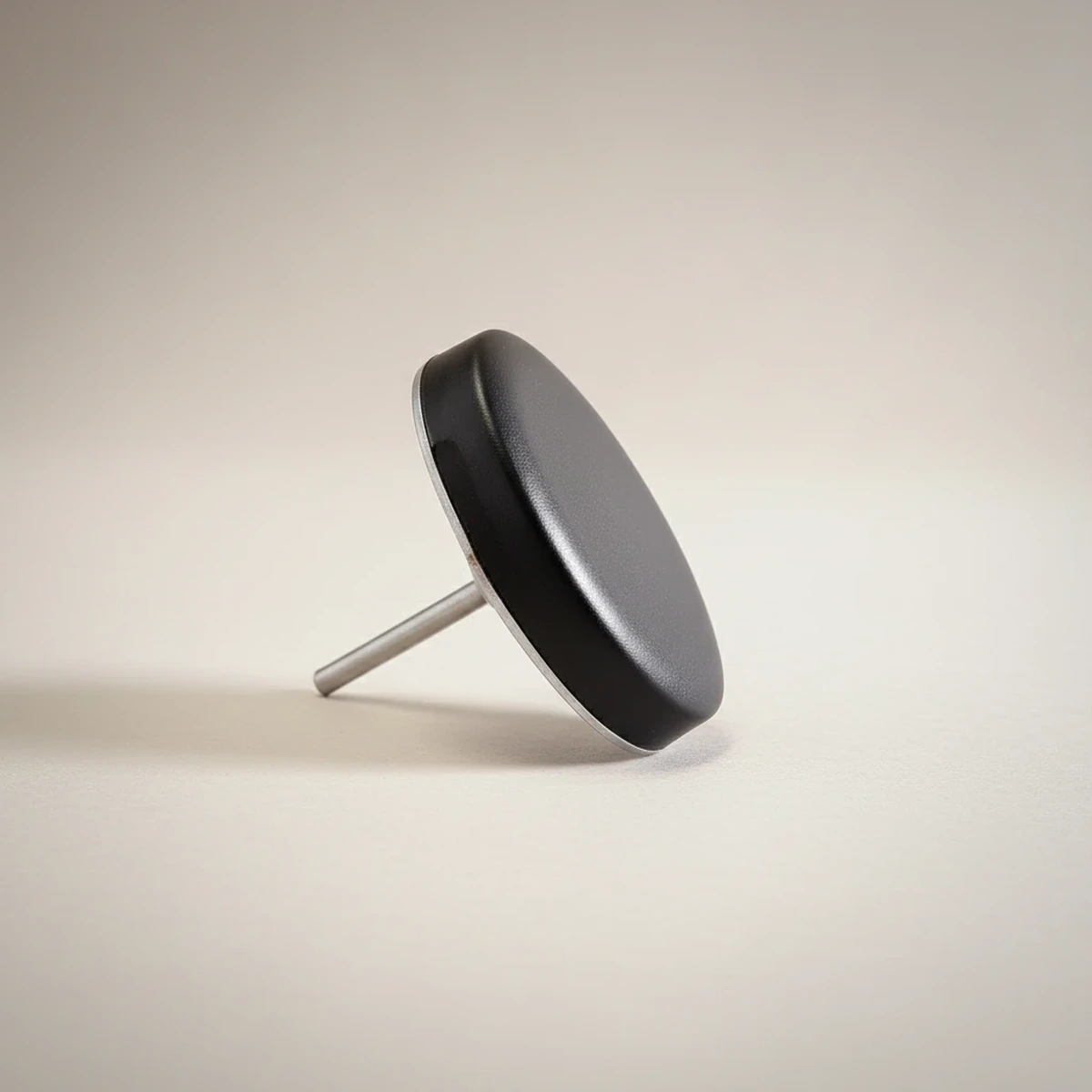

The GL-DY046 groups GNSS, cellular and Wi-Fi functions in a round screw-mounted body. Those sections serve different radio paths even though they share the housing. SMA male is the connector family for the selected configuration, so each path must be assigned to its intended equipment connection.
Current documentation
Downloads
Files shown here are linked to this exact product record.Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-DY046 | 1575.42-1610 806-960/1710-2690 2400-2483.5/5250-5850 | 2.0dBic(Zenith) 2.0 3.0 | SMA male | |
| GL-DY057 | GPS/GLONASS: 1575.42-1610 MHz; radio path: 806-960 / 1710-2690 MHz | GNSS: 2.0 dBic (zenith); radio path: 2.0 dBi | SMA male | |
| GL-DY058W | LTE: 806-960 / 1710-2690 MHz; WiFi: 2400-2483.5 MHz | LTE: 2.0 dBi; WiFi: 3.0 dBi | SMA male | |
| GL-DY305 | 1575.42-1610 806-960/1710-2690 2400-2483.5 | 2.0dBic(Zenith) 2.0 3.0 | SMA male |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
