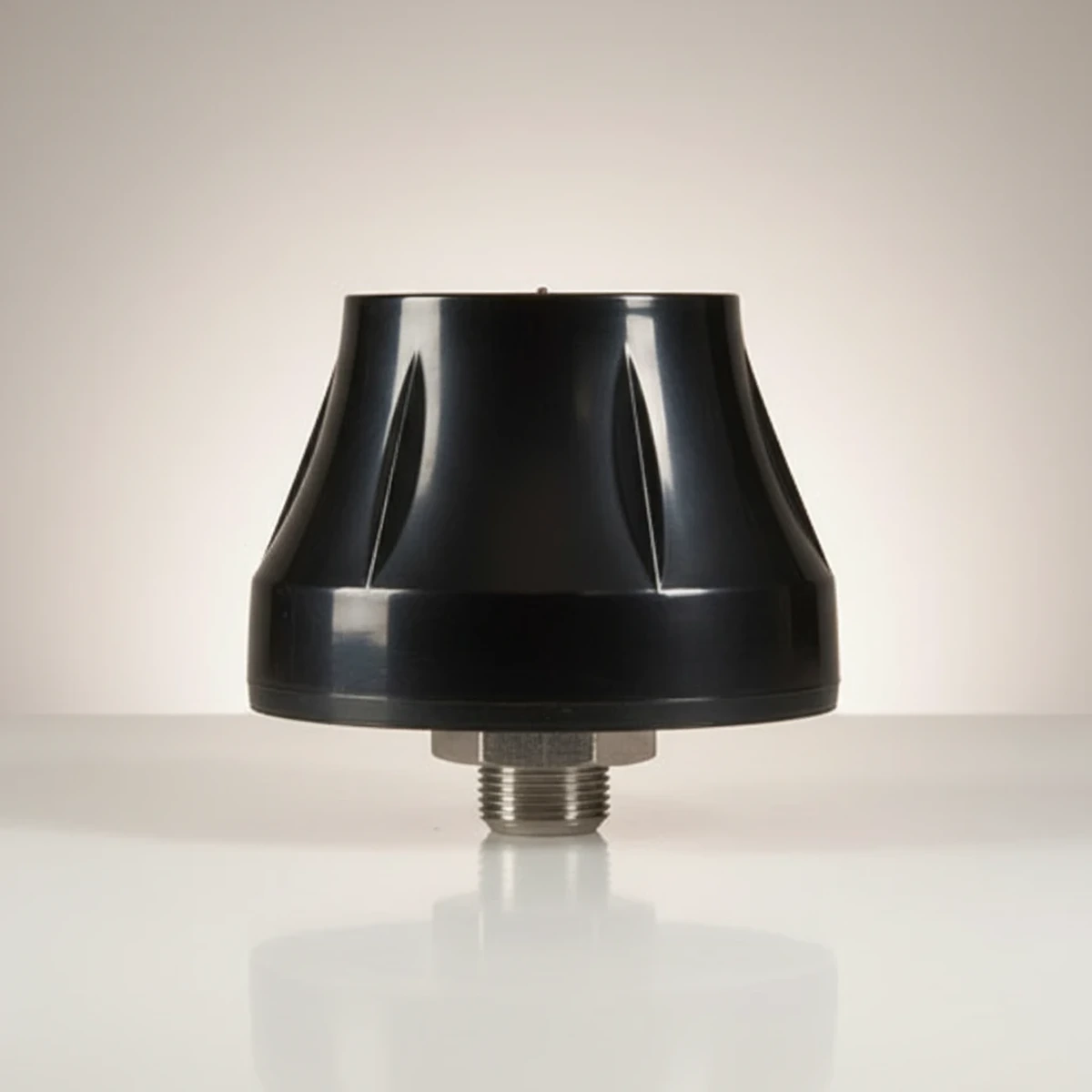

GL-DY058W Product Number main product image

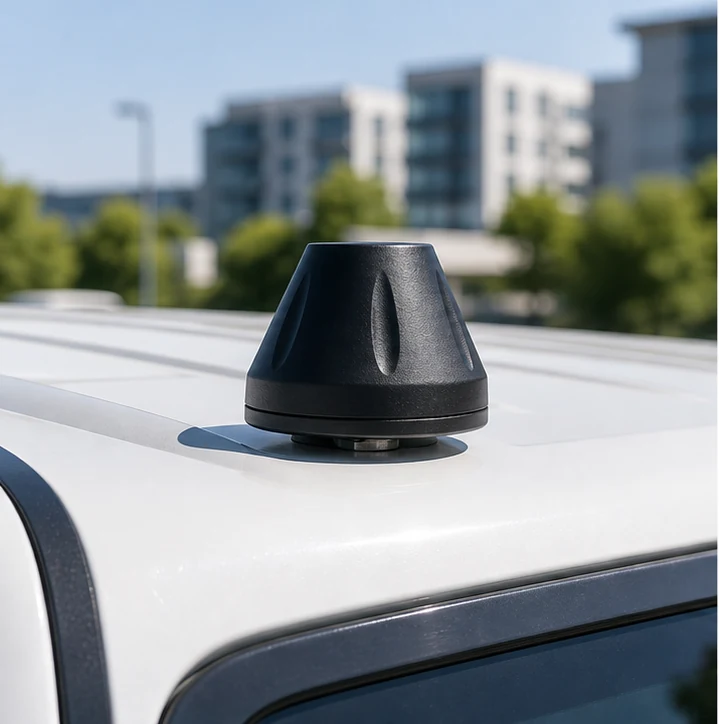

GL-DY058W Product Number application scene 1

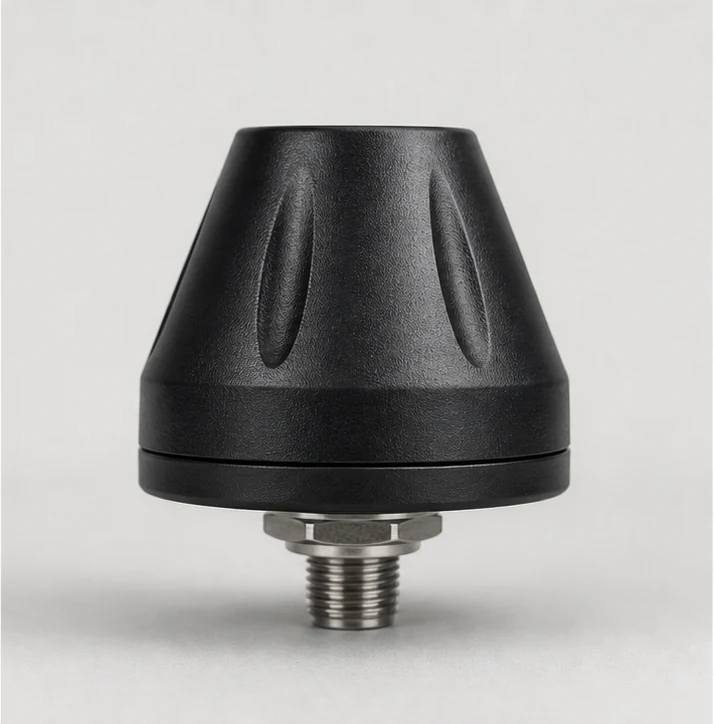

GL-DY058W Product Number application scene 2

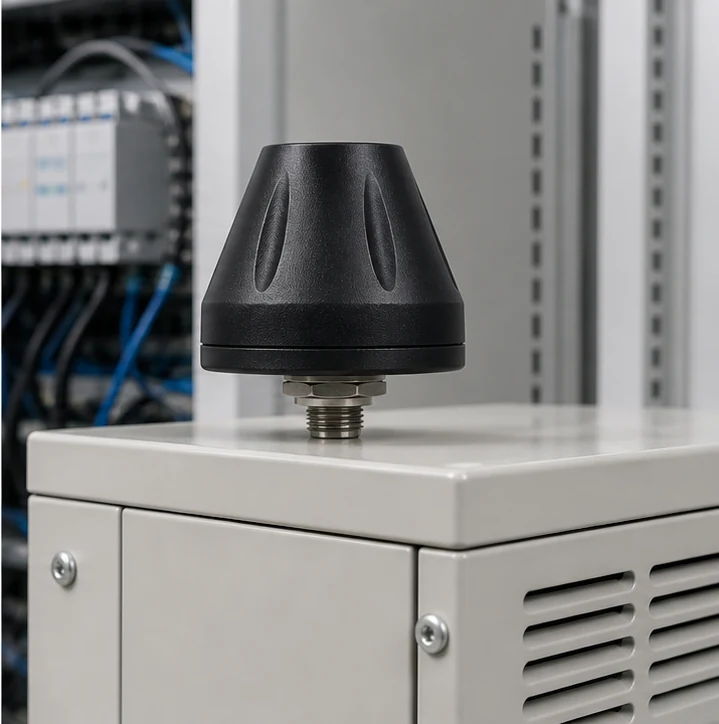

GL-DY058W Product Number connector and mounting detail view

RF Product Combo Antennas

GL-DY058W LTE + 2.4 GHz WiFi Combo Antenna | Screw

Name: GL-DY058W LTE + 2.4 GHz WiFi Combo Antenna | Screw
Brand: Global RF Tech
SKU: GL-DY058W

SKU GL-DY058W

GL-DY058W is a compact screw-mount combination antenna covering 806-960 / 1710-2690 MHz LTE and 2400-2483.5 MHz WiFi. The datasheet lists one SMA male connector for the antenna assembly.

SKU GL-DY058W

Frequency LTE: 806-960 / 1710-2690 MHz; WiFi: 2400-2483.5 MHz

Dimensions 50 × 48 mm

gain LTE: 2.0 dBi; WiFi: 3.0 dBi

polarization Linear

impedance 50 Ω

Request Quote for This Model Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY058W
Frequency	LTE: 806-960 / 1710-2690 MHz; WiFi: 2400-2483.5 MHz
Dimensions	50 × 48 mm
gain	LTE: 2.0 dBi; WiFi: 3.0 dBi
polarization	Linear
impedance	50 Ω
connector	SMA male
mounting	Screw mount
temperature	-40 to +85 °C
vswr	≤2.0
ingress_protection	IP65-IP67 (excluding cable outlet)
relative_humidity	Up to 95%
compliance	RoHS compliant
Category	Combo Antennas

LTE + 2.4 GHz WiFi Without a GNSS Element

GL-DY058W is the non-GNSS model in this five-product group. It covers 806-960 and 1710-2690 MHz for LTE together with 2400-2483.5 MHz for 2.4 GHz WiFi. This combination suits gateways and wireless terminals that need wide-area cellular service plus a local 2.4 GHz connection but do not require satellite positioning in the same antenna.

One Listed SMA Connection

The datasheet lists an SMA male connector for the antenna assembly, with 2.0 dBi gain on the LTE bands and 3.0 dBi on 2.4 GHz WiFi. Both paths are linear polarized, have 50 Ω impedance and are specified at ≤2.0 VSWR. Confirm the radio architecture and connector routing during sample review because the document does not list separate connectors for the two services.

Compact Screw-Mount Form

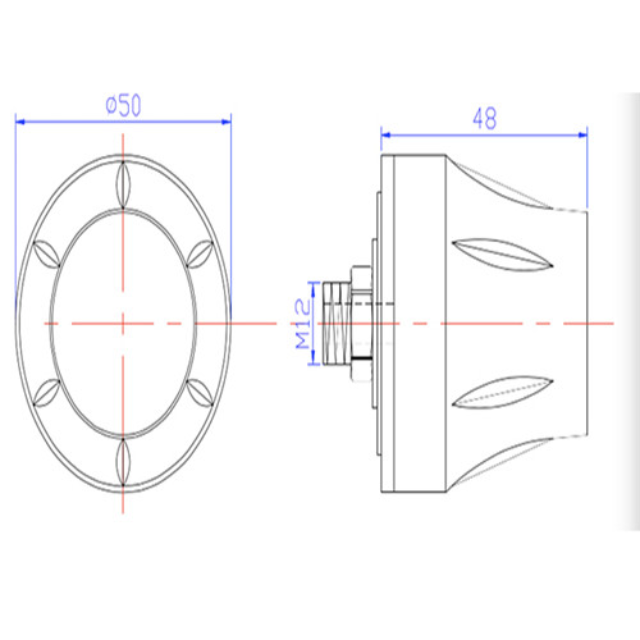

The housing measures 50 × 48 mm and uses screw installation. It is listed for -40 to +85 °C operation, up to 95% relative humidity and IP65-IP67 excluding the cable outlet. The final enclosure should provide the required underside clearance and cable-exit sealing.

Verified Technical Specifications

RF configuration	LTE + 2.4 GHz WiFi
Frequency range	LTE: 806-960 / 1710-2690 MHz; WiFi: 2400-2483.5 MHz
VSWR	≤2.0
Gain	LTE 2.0 dBi; WiFi 3.0 dBi
Polarization	Linear
Impedance	50 Ω
Connector	SMA male
Dimensions / mounting	50 × 48 mm / screw mount
Ingress protection	IP65-IP67, excluding cable outlet
Operating temperature	-40 to +85 °C

Where GL-DY058W Fits

Use this model for LTE plus 2.4 GHz WiFi when GNSS and 5 GHz WiFi are not required. Choose GL-DY056 instead when the terminal needs positioning and dual-band 2.4/5 GHz WiFi through separate RF connections.
