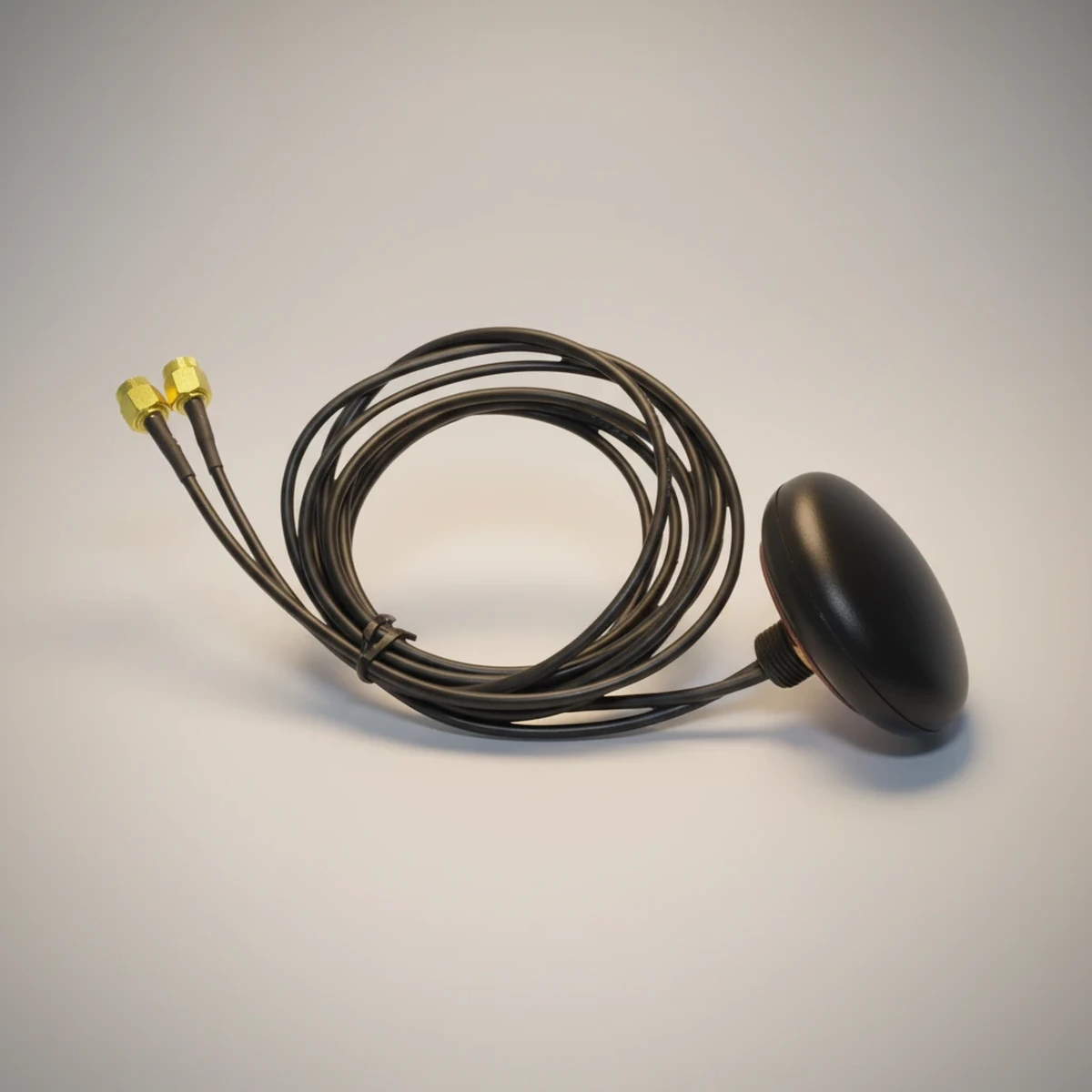

GL609 GPS/GNSS antenna main product image

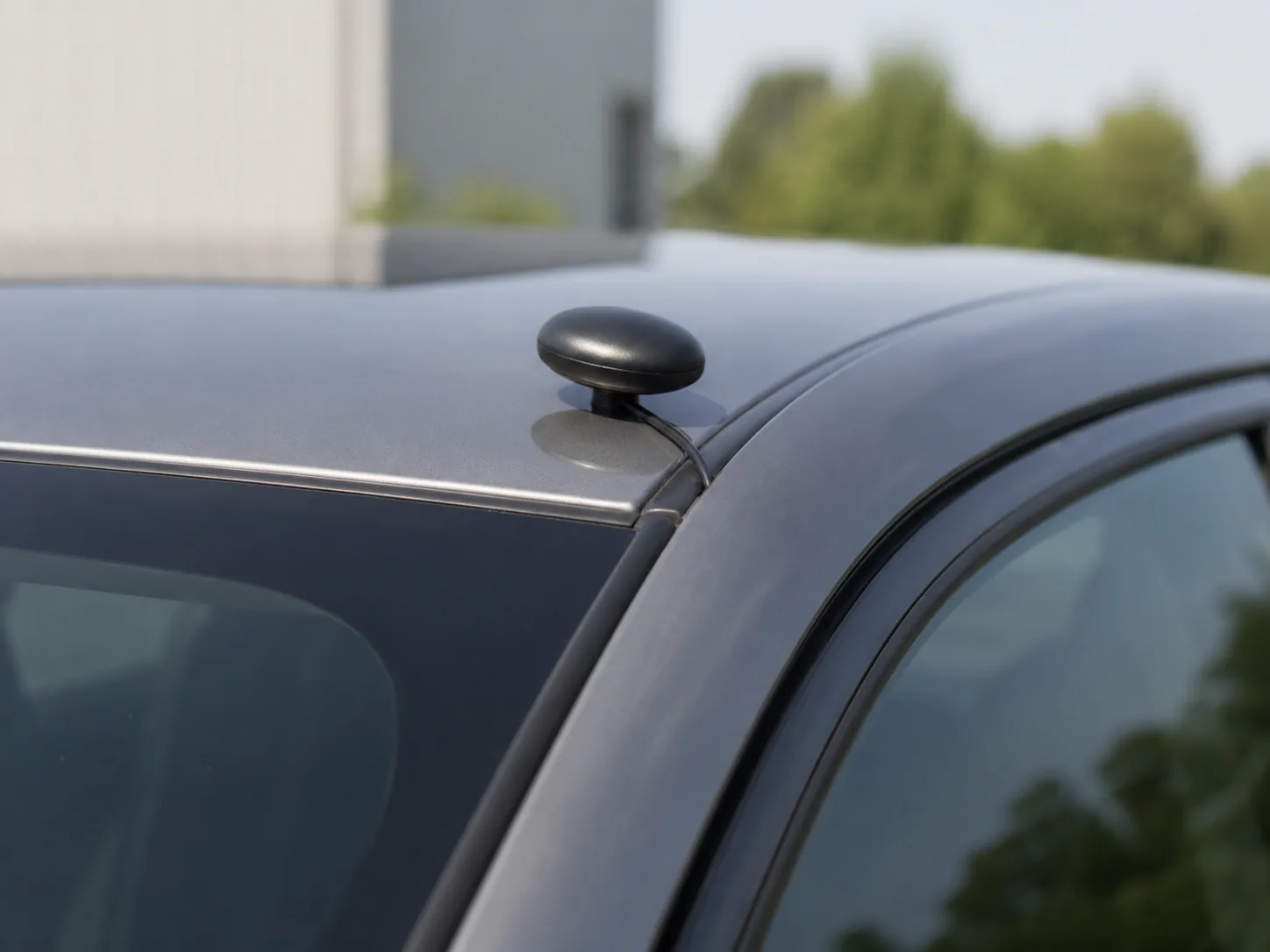

GL609 GPS/GNSS antenna application scene 1

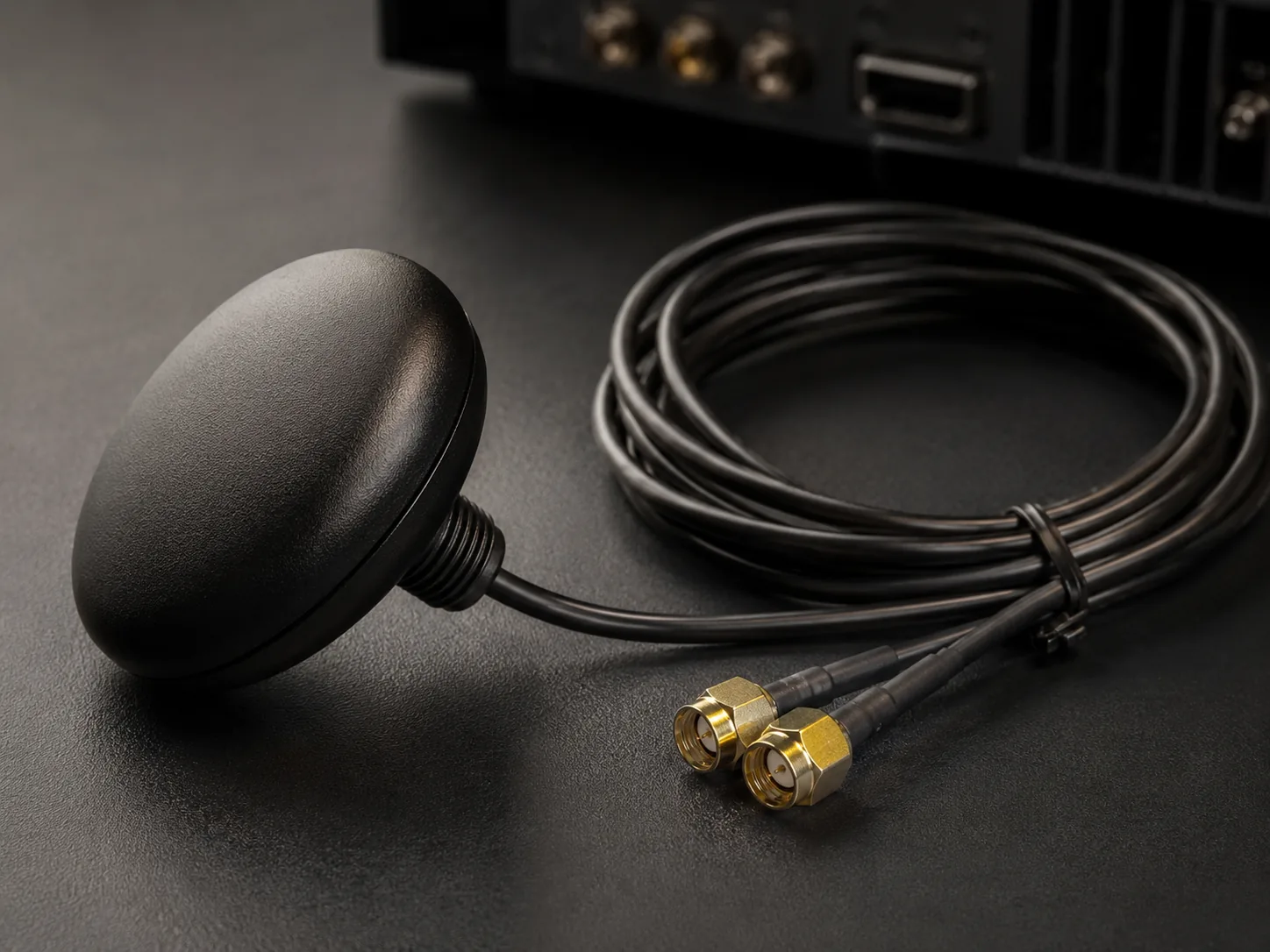

GL609 GPS/GNSS antenna application scene 2

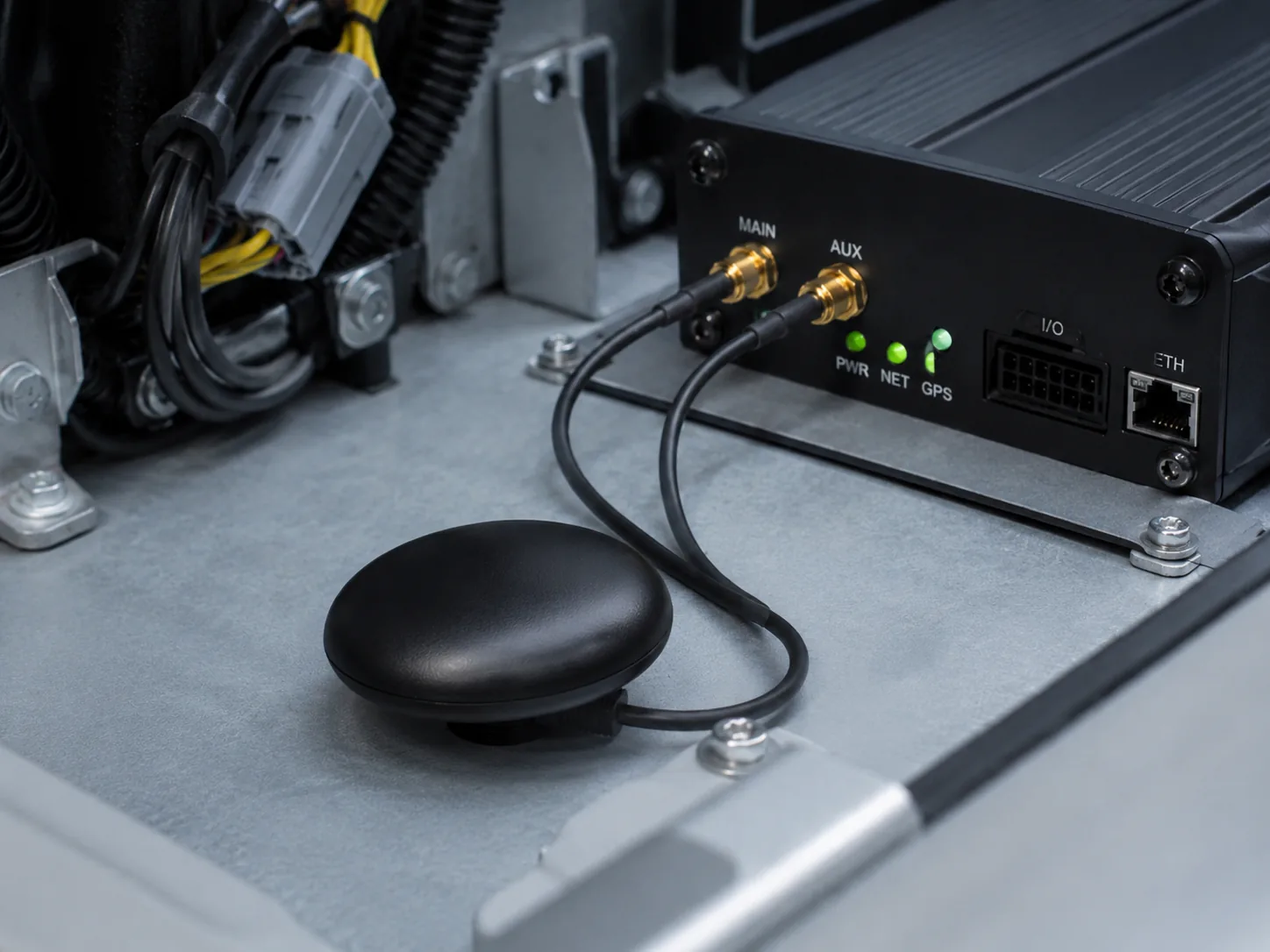

GL609 GPS/GNSS antenna connector and mounting detail view

RF Product Combo Antennas

GL609 806-2670MHz SMA male or Fakra Gps/Gnss Antenna

Name: GL609 806-2670MHz SMA male or Fakra Gps/Gnss Antenna
Brand: Rftech
SKU: GL609

SKU GL609

GL609 is a GPS/GNSS antenna for positioning terminals, fleet tracking and embedded navigation systems. Its RF data lists 1575.42-1610 806-960/1710-2670 MHz operation, 2.0dBic(Zenith) 2.0 dBi gain, rhcp linear polarization. Mechanical selection should confirm SMA male or Fakra connector, Ø52×21 dimensions, Screw mounting against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40-+85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL609

Frequency 1575.42-1610 806-960/1710-2670

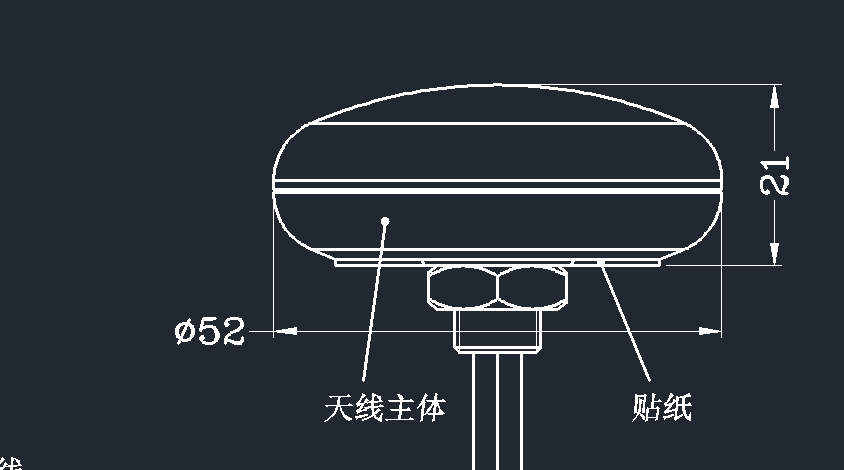

Dimensions Ø52×21

gain 2.0dBic(Zenith) 2.0

polarization RHCP Linear

impedance 50

Request Quote Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL609
Frequency	1575.42-1610 806-960/1710-2670
Dimensions	Ø52×21
gain	2.0dBic(Zenith) 2.0
polarization	RHCP Linear
impedance	50
connector	SMA male or Fakra
mounting	Screw
temperature	-40-+85
Category	Combo Antennas

Product Overview

Key Features

Technical Specifications

Frequency Range	1575.42-1610 806-960/1710-2670
Gain	2.0dBic(Zenith) 2.0
Polarization	RHCP Linear
Input Impedance	50
Connector Type	SMA male or Fakra
Dimensions	Ø52×21
Mounting	Screw
Compliance	ROHS Compliant
Operating Temperature	-40-+85

Application Scenarios

GL609 is suitable for positioning terminals, fleet tracking and embedded navigation systems. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL609 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL609 806-2670MHz SMA male or Fakra Gps/Gnss Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Combo Antennas category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL609).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
