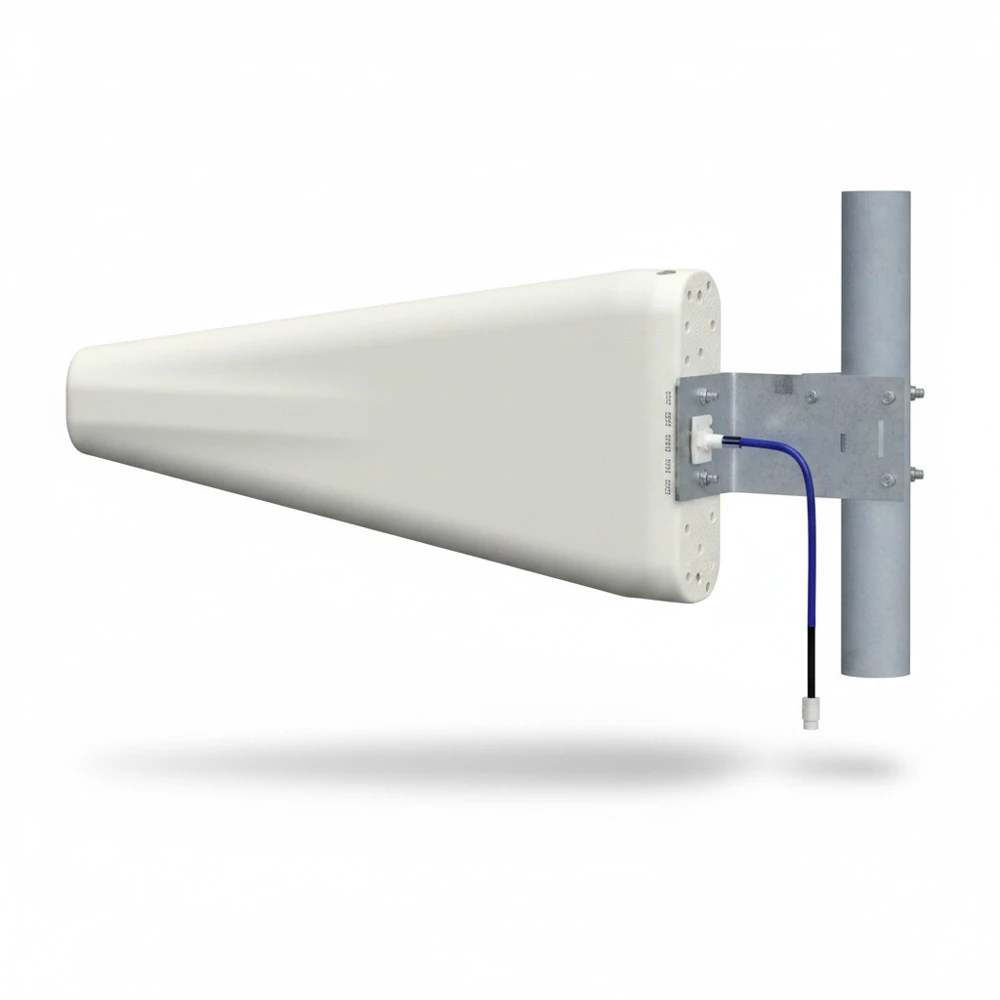

Log Periodic Antenna GL-0660DSF-M
SKUGL-0660DSF-M
GL-0660DSF-M is a log periodic antenna specified for 617-960/1695-2700/3300-4200/4800-6000 MHz. The gain specification is 7.5/9/9/8 dBi.
The specified connector is 1*4.3-10F/ 1*N-F. The dimensions are 442×210×65 mm. These details help check the connection and available space for the intended installation.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL-0660DSF-M is a log-periodic option for four separate frequency windows. When comparing it with the flat GL-0660BGA-MY, review gain band by band: DSF-M lists higher gain in the first three windows and the same gain in the fourth. Both use the same stated PIM test power and limit.
Its longer body changes the space needed for integration. The connector entry lists 4.3-10 female and N-female choices; specify the required interface when requesting a quote so that the cable connection is clear. Frequency selection, body space and connector choice should be resolved together.
Current documentation
Downloads
Files shown here are linked to this exact product record.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-0660DSF-M | 617-960/1695-2700/3300-4200/4800-6000 MHz | — | — | |
| GL-0727DSAL-M | 698-960/1710-2700 MHz | — | — | |
| GL-DY7038V11 | 698-960MHz/1710-2700MHz/3300-3800MHz | 11dbi | N-K | |
| GL-DY7040V11 | 698–960 / 1710–2700 / 3400–4000 MHz | 10 / 10.5 / 11 dBi | N-K | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
