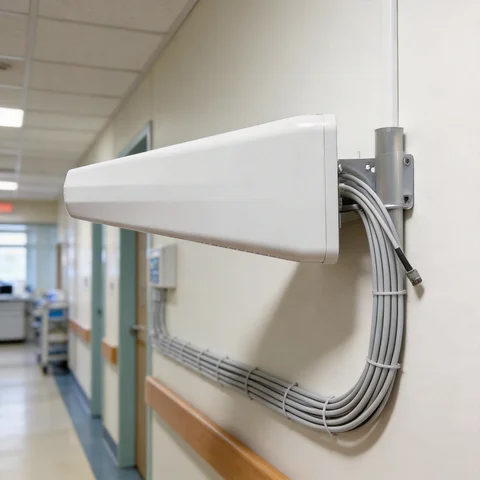

GL-DY8027V9 LPDA antenna application scene 1

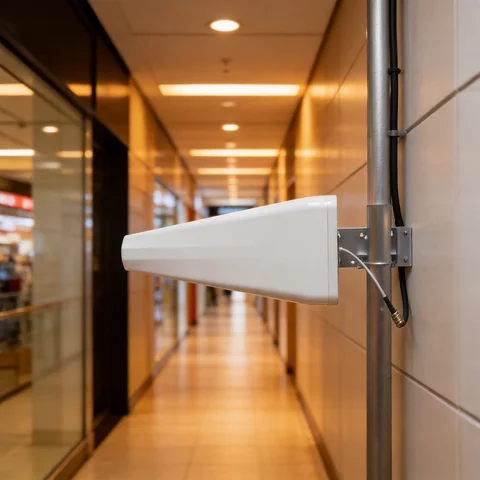

GL-DY8027V9 LPDA antenna application scene 2

GL-DY8027V9 LPDA antenna connector and mounting detail view

RF Product LPDA Antenna

GL-DY8027V9 806-2700MHz N-K Lpda Antenna for RF Systems

Name: GL-DY8027V9 806-2700MHz N-K Lpda Antenna for RF Systems
Brand: Rftech
SKU: GL-DY8027V9

SKU GL-DY8027V9

GL-DY8027V9 is a LPDA antenna for 2G/3G/WLAN/LTE Wireless System. Its RF data lists 806-960 1710-2700 MHz operation, 8/9 dBi gain, vertical polarization, and VSWR ≤1.5 ≤1.5. Mechanical selection should confirm N-K connector, 295×210×65 dimensions against the installation plan. Design details include broadband; sealed with radome, strong protection ability, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY8027V9

Frequency 806-960 1710-2700

Dimensions 295×210×65

gain 8/9

polarization Vertical

vswr ≤1.5 ≤1.5

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY8027V9
Frequency	806-960 1710-2700
Dimensions	295×210×65
gain	8/9
polarization	Vertical
vswr	≤1.5 ≤1.5
impedance	50
connector	N-K
temperature	-40°C to +65 °C
Category	LPDA Antenna

Product Overview

Key Features

Broadband
Sealed with radome, Strong protection ability

Technical Specifications

Frequency Range	806-960 1710-2700
VSWR	≤1.5 ≤1.5
Gain	8/9
Horizontal Beamwidth	90/60°
Vertical Beamwidth	70/55°
Front-to-Back Ratio	≥15
Polarization	Vertical
Input Impedance	50
Maximum Input Power	50
Lightning Protection	DC Ground
Connector Type	N-K
Dimensions	295×210×65
Radiating Element Material	AI
Radome Material	ABS
Operating Temperature	-40°C to +65 °C
Rated Wind Velocity	60

Application Scenarios

GL-DY8027V9 is suitable for 2G/3G/WLAN/LTE Wireless System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY8027V9 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY8027V9 806-2700MHz N-K Lpda Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the LPDA Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY8027V9).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
