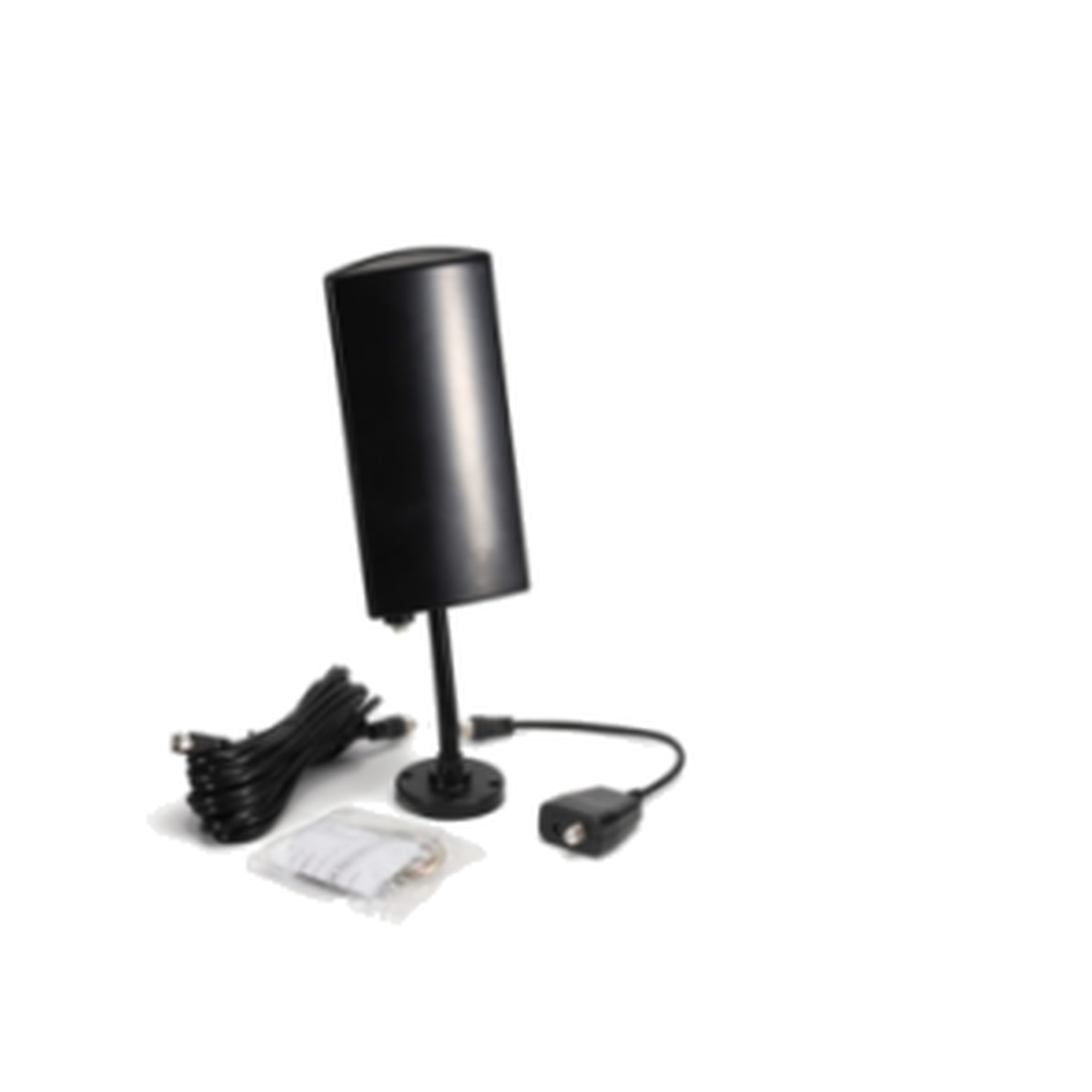

GL-1319 active indoor TV antenna with power cable

RF Product TV Antenna

GL-1319 470–862 MHz Active Indoor TV Antenna

Name: GL-1319 470–862 MHz Active Indoor TV Antenna
Brand: Global RF Tech
SKU: GL-1319

SKU GL-1319

GL-1319 active indoor TV antenna for 470–862 MHz systems, with documented 23–26 dBi gain, 75-ohm impedance, VSWR ≤1.5 and AC 110/220 V supply.

SKU GL-1319

Frequency 470–862 MHz

Application Digital TV reception

Product Type Active indoor TV antenna

Gain 23–26 dBi documented

Impedance 75 Ω

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-1319
Frequency	470–862 MHz
Application	Digital TV reception
Product Type	Active indoor TV antenna
Gain	23–26 dBi documented
Impedance	75 Ω
VSWR	≤1.5
Maximum Input Power	50 W
Operation Voltage	AC 110/220 V
Category	TV Antenna

GL-1319 product overview

The GL-1319 is a active indoor tv antenna documented for 470–862 MHz. It uses a 75-ohm interface, has a published VSWR of ≤1.5 and a maximum input rating of 50 W. The source sheet lists 23–26 dBi documented gain.

Where this antenna fits

This is a powered receiving antenna. Confirm the amplifier arrangement, supply interface and signal conditions before sampling. It is intended for television reception projects that match the documented frequency range. Reception distance is not specified because transmitter power, terrain, building loss, antenna height, direction and coaxial loss all affect the result.

Integration notes

The connector and cable assembly are not fixed in the current source sheet and must be confirmed with the order requirement. Before ordering, confirm the target country or broadcast system, exact channel frequencies, indoor or outdoor placement, cable length, mounting arrangement and any environmental requirement. A model name such as HDTV or DVB-T does not replace a market-level compatibility check.

Related selection resources

Selection and Project Support

GL-1319 470–862 MHz Active Indoor TV Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the TV Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-1319).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
