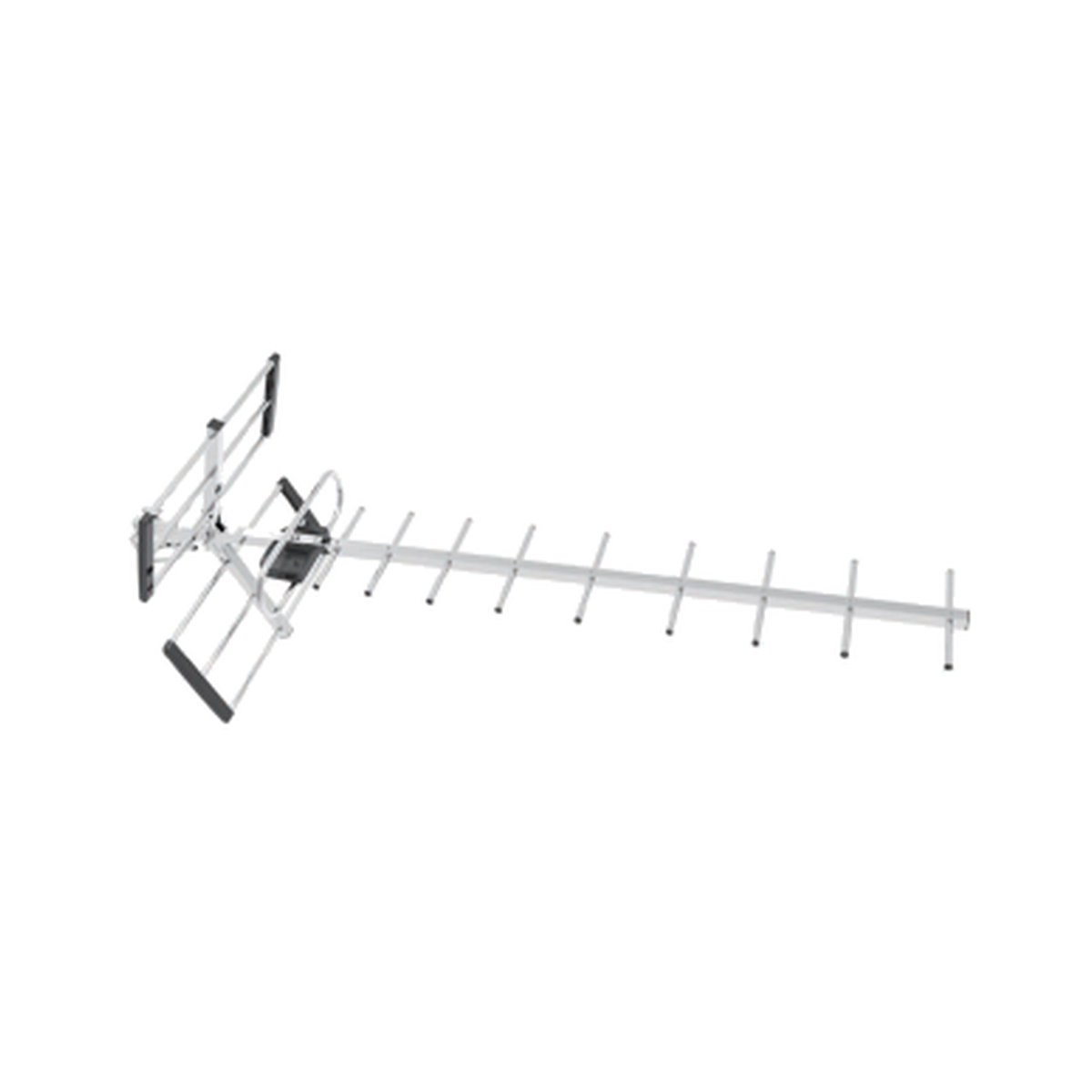

GL-16E6B 470–862 MHz Directional TV Antenna
SKU GL-16E6B
GL-16E6B directional TV antenna for 470–862 MHz with 12 dBi gain, front-to-back ratio ≥22 dB, 75-ohm impedance, 50 W rating and VSWR ≤1.5.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL-16E6B |
|---|---|
| Frequency | 470–862 MHz |
| Application | Digital TV reception |
| Product Type | Outdoor directional TV antenna |
| Gain | 12 dBi |
| Impedance | 75 Ω |
| VSWR | ≤1.5 |
| Maximum Input Power | 50 W |
| Front-to-Back Ratio | ≥22 dB |
| Category | TV Antenna |
GL-16E6B product overview
The GL-16E6B is a outdoor directional tv antenna documented for 470–862 MHz. It uses a 75-ohm interface, has a published VSWR of ≤1.5 and a maximum input rating of 50 W. The source sheet lists 12 dBi gain.
Where this antenna fits
Its documented forward gain and front-to-back ratio make it a candidate where the wanted transmitters are concentrated in a known direction. It is intended for television reception projects that match the documented frequency range. Reception distance is not specified because transmitter power, terrain, building loss, antenna height, direction and coaxial loss all affect the result.
Integration notes
The connector and cable assembly are not fixed in the current source sheet and must be confirmed with the order requirement. Before ordering, confirm the target country or broadcast system, exact channel frequencies, indoor or outdoor placement, cable length, mounting arrangement and any environmental requirement. A model name such as HDTV or DVB-T does not replace a market-level compatibility check.
Related selection resources
- Compare digital TV antenna models
- Review VHF and UHF antenna ranges
- Read the outdoor TV antenna selection guide
- Send frequency, installation and quantity details
Selection and Project Support
GL-16E6B 470–862 MHz Directional TV Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the TV Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-16E6B).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
