Frequency470–862 MHz
Gain15 dBi
Impedance75 Ω
VSWR≤1.5
Maximum Input Power50 W
Front-to-Back Ratio≥24 dB
RF Product · TV Antenna

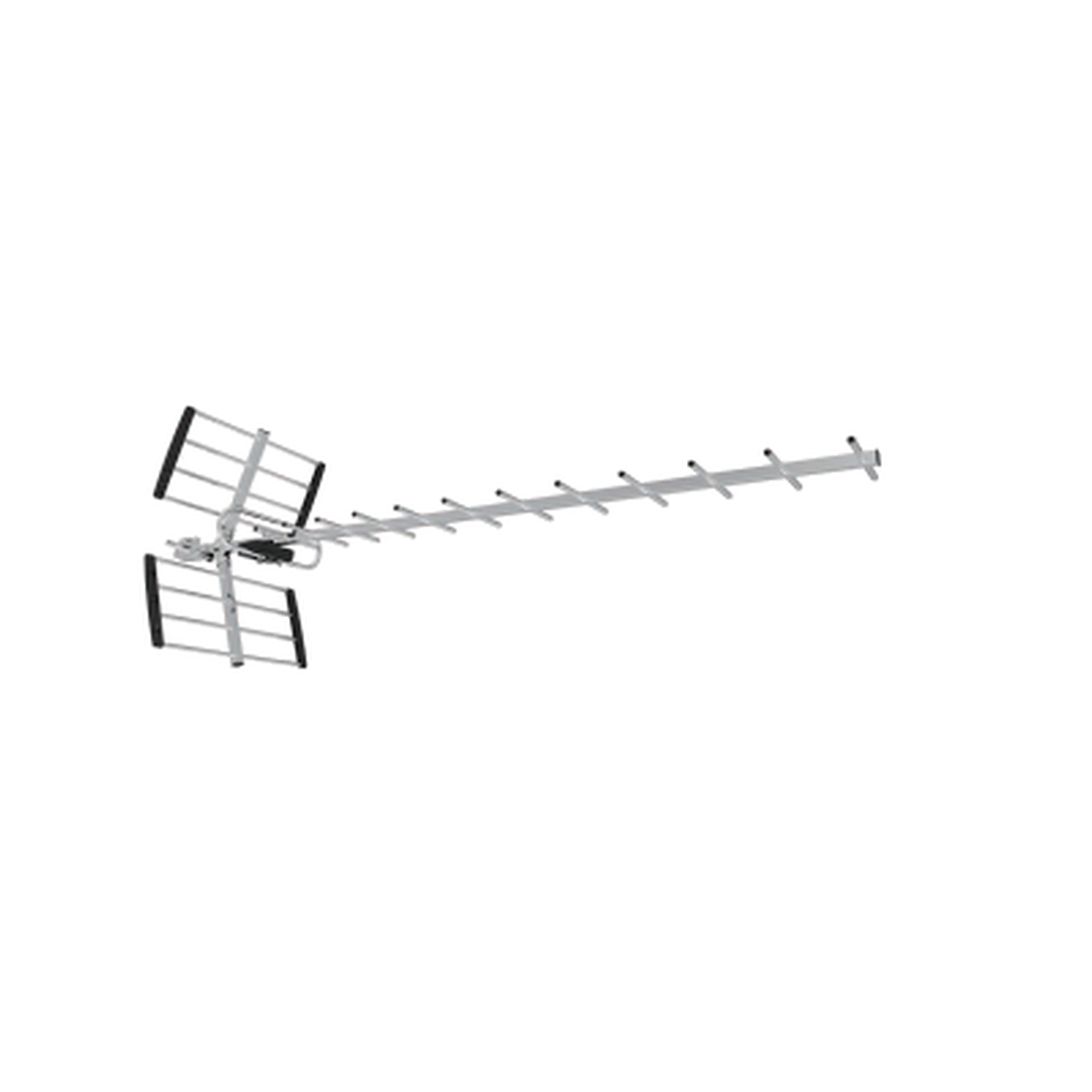

470–862 MHz Directional TV Antenna GL-21E8B
SKUGL-21E8B
GL-21E8B directional TV antenna covering 470–862 MHz with 15 dBi gain, front-to-back ratio ≥24 dB, 75-ohm impedance, 50 W rating and VSWR ≤1.5.
470–862 MHzDigital TV receptionOutdoor directional TV antenna
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-21E8B
Frequency470–862 MHz
ApplicationDigital TV reception
Product TypeOutdoor directional TV antenna
Gain15 dBi
Impedance75 Ω
VSWR≤1.5
Maximum Input Power50 W
Front-to-Back Ratio≥24 dB
CategoryTV Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.SKUGL-21E8B
ApplicationDigital TV reception
Product TypeOutdoor directional TV antenna
CategoryTV Antenna
Documented use cases
Applications
