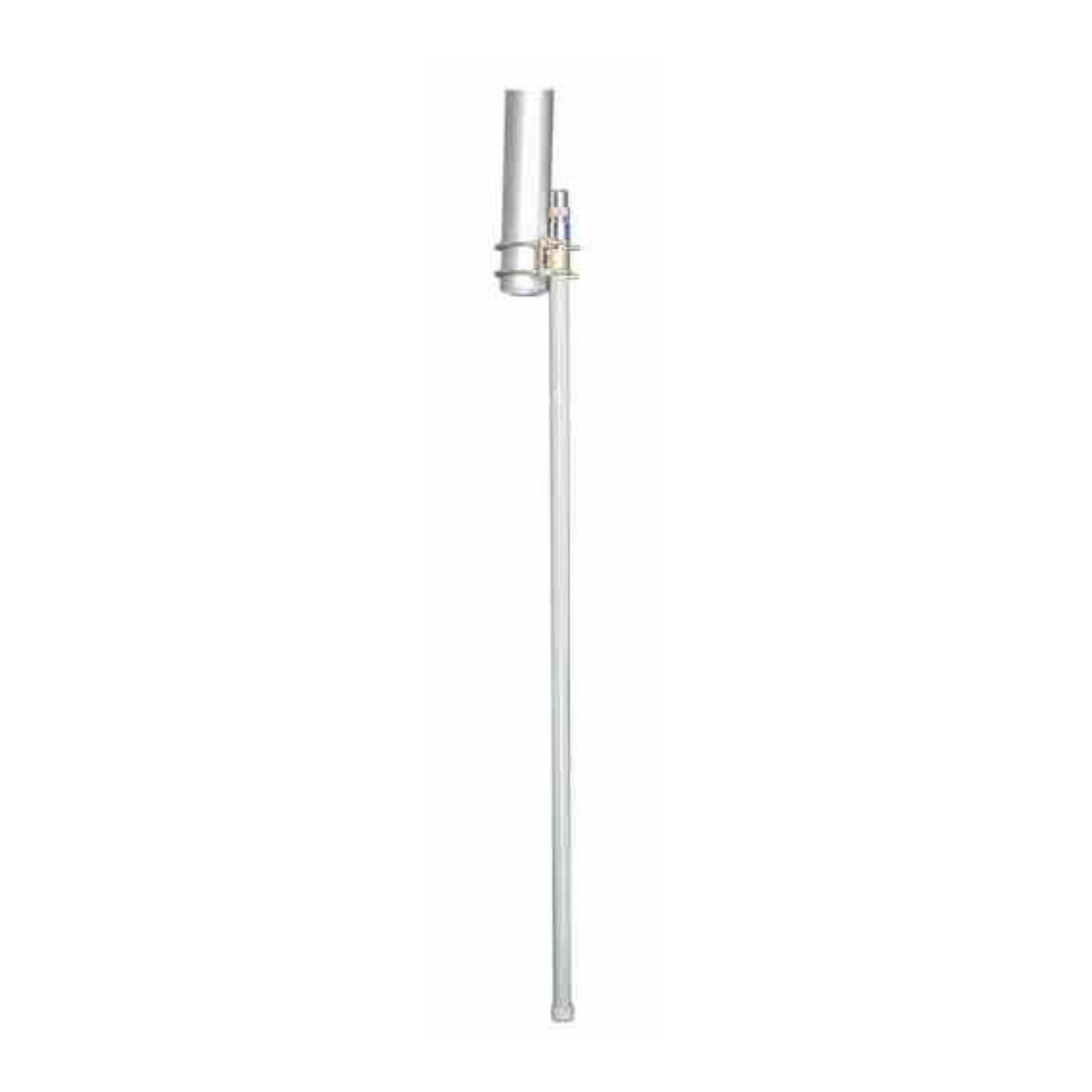

GL400AT 400-480 MHz 5 dBi Fiberglass Omni Antenna

SKU GL400AT

GL400AT is a 400-480 MHz Fiberglass Omni Antenna for uhf fixed-site omnidirectional antenna, with 5 dBi gain, N Female or Customization connector and Outdoor pole mount.

SKU GL400AT

Frequency 400-480 MHz

Dimensions 1.2 m

Connector N Female or Customization

Mounting Outdoor pole mount

Application UHF fixed-site omnidirectional antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL400AT
Frequency	400-480 MHz
Dimensions	1.2 m
Connector	N Female or Customization
Mounting	Outdoor pole mount
Application	UHF fixed-site omnidirectional antenna
Bandwidth	10 MHz
Gain	5 dBi
Vertical Beamwidth	28 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	1.2 m
Weight	0.8 kg
Rated Wind Velocity	60 m/s
Remarks	Fiberglass
Category	Fiberglass Omni Antenna

Fiberglass Omni Antenna Role

GL400AT is a 400-480 MHz Fiberglass Omni Antenna for outdoor 400-480 MHz base sites that need a fiberglass omni radiator. Its source record lists 5 dBi gain, N Female or Customization connector and Outdoor pole mount, so the product page is kept tied to those exact ordering details.

RF and Mechanical Fit

The antenna uses Vertical polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 100 W, and the published size is 1.2 m. Confirm cable loss, mating connector and mounting hardware before installation.

Installation Notes

Use GL400AT where the project needs 5 dBi gain, N female feed and a 1.2 m outdoor fiberglass antenna. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.

Application Fit

UHF fixed-site omnidirectional antenna
Systems that operate inside 400-480 MHz and require a 50 Ω antenna path
OEM or project builds where the SKU, connector and mounting details are stated before quotation

Selection Questions

What should be confirmed before ordering GL400AT?

Confirm the operating channels, requested connector, installation method and whether the documented 1.2 m size is acceptable for the equipment or support structure.

Can this model be swapped with a nearby SKU?

Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.

Related Resources

Source-Specific Note

The listed vertical beamwidth is 28 °. Source remark: Fiberglass.

Technical Specifications

Frequency Range	400-480 MHz
Bandwidth	10 MHz
Gain	5 dBi
Vertical Beamwidth	28 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	1.2 m
Weight	0.8 kg
Rated Wind Velocity	60 m/s
Connector	N Female or Customization
Remarks	Fiberglass

Selection and Project Support

GL400AT 400-480 MHz 5 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL400AT).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
