RF Product · Fiberglass Omni Antenna

Omni Antenna 360-450 MHz GL400WQ

SKUGL400WQ

Choose GL400WQ over GL400TF2 when the lower end of the required frequency range or the transmitter power limit rules out the lighter model.

360-450 MHz1.0 m360-450

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.
SKUGL400WQ
Frequency360-450 MHz
Dimensions1.0 m
Frequency-MHz360-450
Bandwidth-MHz90
Gain-dBi3
Vertical Beamwidth-º68
VSWR≤1.6
Nominal Impedance-Ω50
PolarizationVertical
Maximum Power-W500
Length-m1.0
Weight-kg2.3
Rated Wind Velocity-m/s60
ConnectorN Female
RemarksFiberglass High Power
CategoryFiberglass Omni Antenna

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Choosing this model

GL400WQ selection guide

Choose GL400WQ over GL400TF2 when the lower end of the required frequency range or the transmitter power limit rules out the lighter model. GL400WQ extends down to 360 MHz and has a 500 W rating, versus 380 MHz and 50 W for GL400TF2.

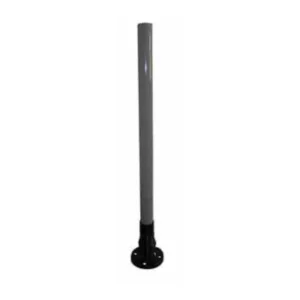

Both models are listed at 1.0 m, but GL400WQ is heavier. If neither the lower frequency limit nor the higher power rating is needed, GL400TF2 may be the more relevant comparison, especially where its specified flange mount fits the installation.

Current documentation

Downloads

Files shown here are linked to this exact product record.
