RF Product · Fiberglass Omni Antenna

Omni Antenna 380-450 MHz GL400TF2

SKUGL400TF2

GL400TF2 is worth considering when flange mounting is required and the higher power rating of GL400WQ is unnecessary.

380-450 MHz1.0 m380-450

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.
SKUGL400TF2
Frequency380-450 MHz
Dimensions1.0 m
Frequency-MHz380-450
Bandwidth-MHz70
Gain-dBi2.5
Vertical Beamwidth-º55
VSWR≤1.5
Nominal Impedance-Ω50
PolarizationVertical
Maximum Power-W50
Length-m1.0
Weight-kg1.7
Rated Wind Velocity-m/s60
ConnectorN Female
RemarksFiberglass Flange mount
CategoryFiberglass Omni Antenna

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Choosing this model

GL400TF2 selection guide

GL400TF2 is worth considering when flange mounting is required and the higher power rating of GL400WQ is unnecessary. Both models have the same listed length, but GL400TF2 is lighter, which can matter when comparing mounting loads.

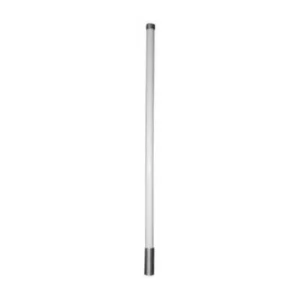

Choose GL400WQ instead if the required frequency extends below 380 MHz or the power requirement exceeds this model’s 50 W limit. The shared N-female connector and length alone do not make the two models interchangeable.

Current documentation

Downloads

Files shown here are linked to this exact product record.

RF Product

Discuss this model with an RF engineer

Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote
