MCX to RG174 Cable Assembly with PCB and Inductor | GL8103
SKUGL8103
GL8103 is an MCX-to-RG174 cable assembly with a gold-plated MCX male connector, a PCB brass connector and a wire-wound inductor. The black RG174 cable measures 150 ± 10 mm and is specified for 2.4–4.5 GHz, 50 Ohm impedance and VSWR below 2.0.
How this model fits the documented RF, interface and installation requirements.
Construction choice
The PCB-and-inductor version of this MCX assembly

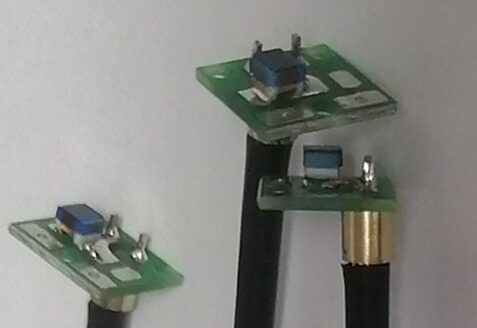

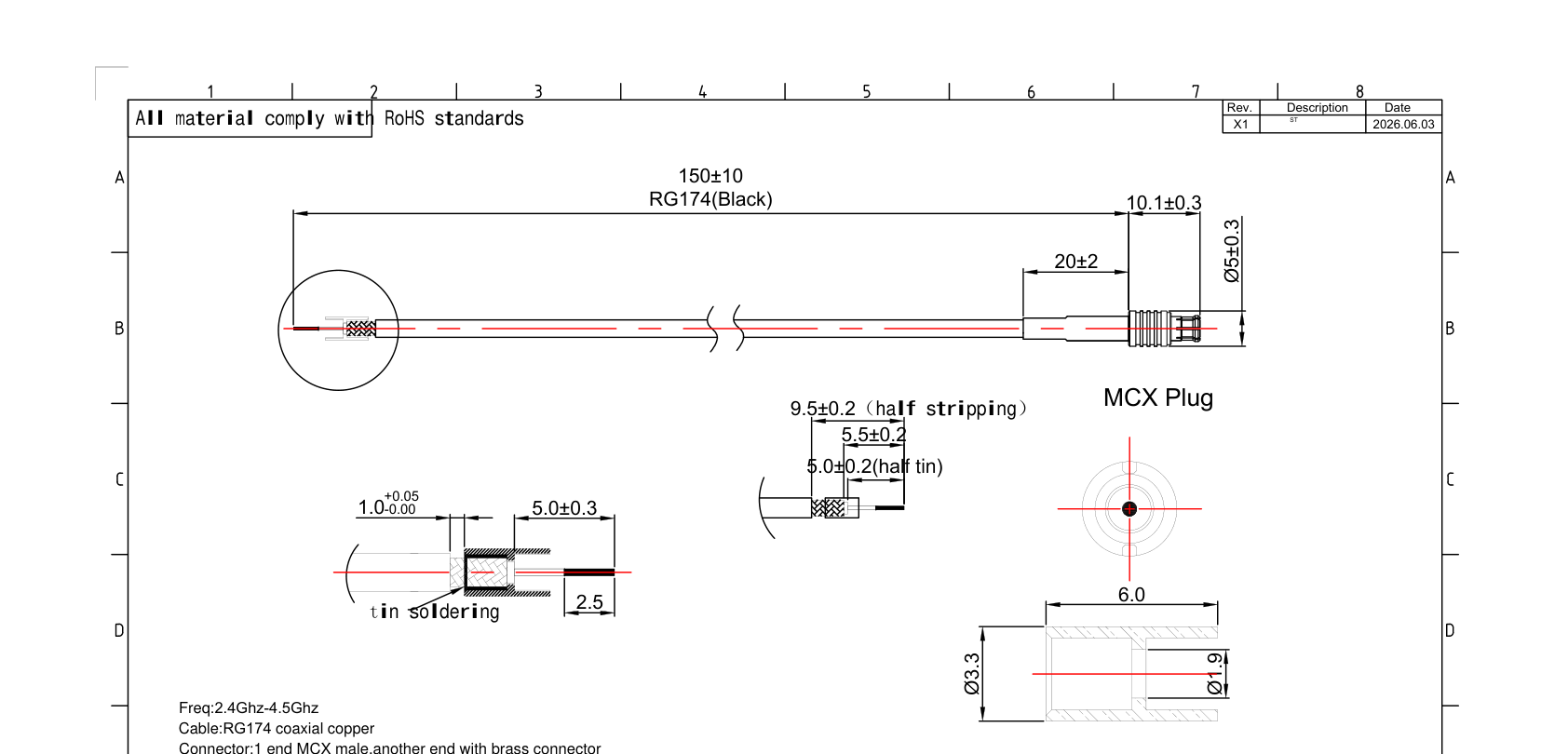

GL8103 is a model-specific MCX cable assembly whose distinguishing feature is the construction at the far end: a PCB brass connector and a wire-wound inductor are included with the RG174 cable. This separates it from a generic MCX pigtail and from GL8103P5, which uses a bare copper soldering end.

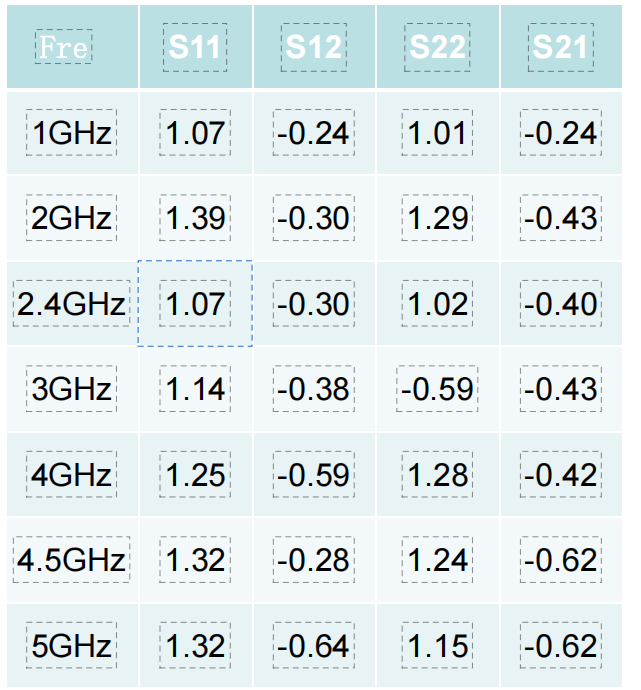

The assembly operates across 2.4–4.5 GHz with 50 Ohm impedance and VSWR below 2.0. It uses black RG174 coaxial copper cable with a stated end-to-end length of 150 ± 10 mm and a black 6.0 × 20 mm heat-shrink tube.
The available data confirms that a wire-wound inductor is present but does not state its inductance value. Confirm the supplied PCB-side construction against the board design before ordering.
TerminationMCX male to PCB brass connector with inductor
Cable route150 ± 10 mm black RG174
Electrical range2.4–4.5 GHz · 50 Ohm · VSWR < 2.0
Current documentation
Downloads
Files shown here are linked to this exact product record.
