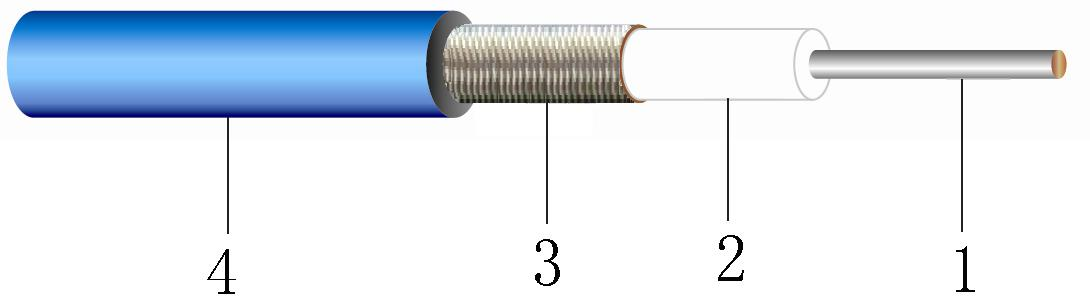

Inner conductorSilver-plated copper (SC), 1/0.54 +/- 0.01 mm, Silver
InsulationPTFE, 1.67 +/- 0.05 mm, White
Wire braidTin-plated copper (Tc/Sn), 80*0.10 mm, Silver
JacketFEP, 2.60 +/- 0.10 mm, Blue
Capacitance97 +/- 5 pF/m
Impedance50 +/- 3 ohm
Velocity70 %
Bent radius20 mm
Max. frequency6000 MHz
Temperature range-40 to +200 deg C
Attenuation @ 100 MHz25 dB/100m
Attenuation @ 500 MHz49 dB/100m
Attenuation @ 1000 MHz72 dB/100m
Attenuation @ 2000 MHz107 dB/100m
Attenuation @ 3000 MHz134 dB/100m
Attenuation @ 5000 MHz180 dB/100m
Attenuation @ 6000 MHz201 dB/100m
CategoryCoaxial Cables & Connectors
Engineering selection guide
Product details
How this model fits the documented RF, interface and installation requirements.
LX-50-086 cable selection
Check loss and mechanical fit together
GLLX50086 is an LX-50-086 semi-soft coaxial cable with a silver-plated copper inner conductor, PTFE insulation, tin-plated copper braid and blue FEP outer jacket. The datasheet gives 50 ±3 Ω impedance and a maximum frequency of 6000 MHz.
The attenuation table lists values from 100 to 6000 MHz at 20 °C, with a stated ±15% permissible error. Select the row closest to the planned operating frequency, then check the 20 mm bend radius and 2.60 ±0.10 mm jacket diameter for the cable route.
The datasheet does not specify connectorized assembly ends; this page describes the cable itself.
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→
Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
Match every required operating band, rather than relying only on a product-family name.
Check connector gender, cable route, mounting space and the interface on your device.
Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
