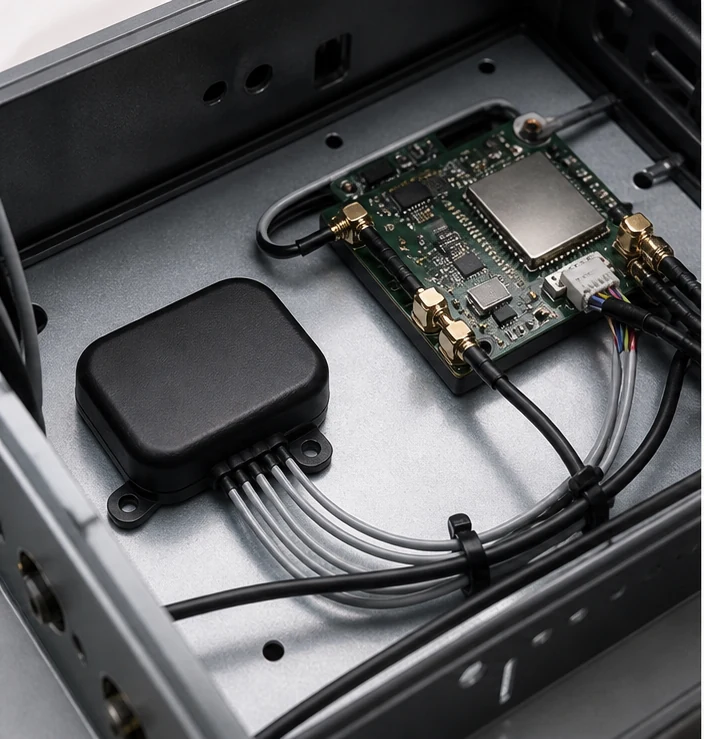

GL-DY056 GPS/GNSS antenna application scene 1

GL-DY056 GPS/GNSS antenna application scene 2

GL-DY056 GPS/GNSS antenna connector and mounting detail view

RF Product Combo Antennas

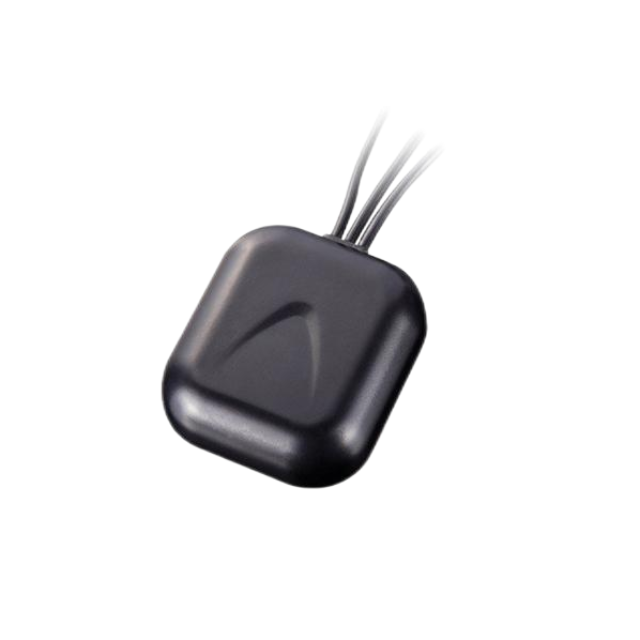

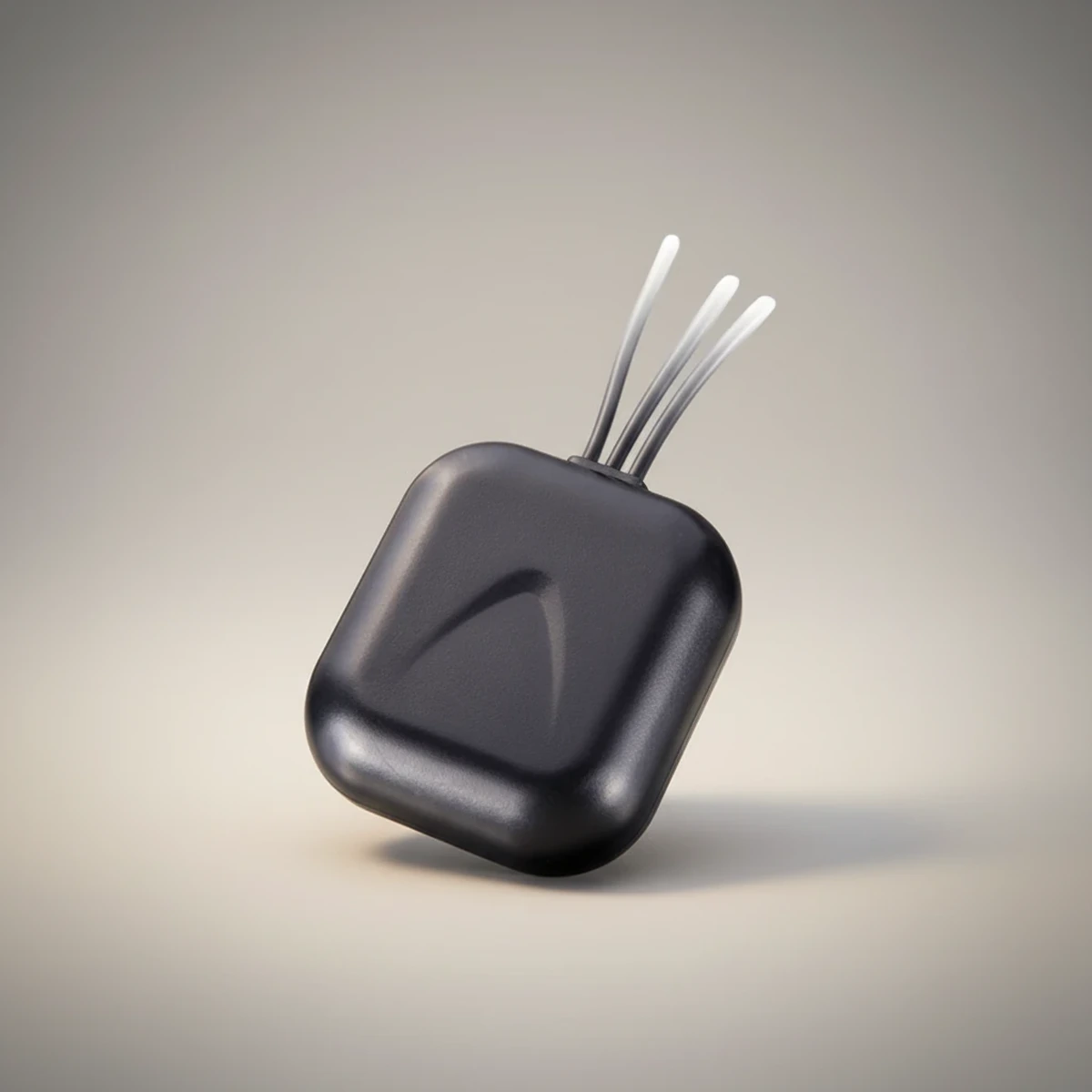

GL-DY056 GPS + LTE + Dual-Band WiFi Combo Antenna | 3-Port

Name: GL-DY056 GPS + LTE + Dual-Band WiFi Combo Antenna | 3-Port
Brand: Global RF Tech
SKU: GL-DY056

SKU GL-DY056

GL-DY056 integrates active GNSS, wideband LTE and dual-band 2.4/5 GHz WiFi in one compact screw-mount antenna. Three SMA male connectors keep the positioning, cellular and WiFi paths separate.

SKU GL-DY056

Frequency GNSS: 1559-1606 MHz; LTE: 796-960 / 1710-2700 MHz; WiFi: 2400-2483.5 / 5150-5850 MHz

Dimensions 59.2 × 52.5 × 15 mm

gain GNSS: 2.0 dBic (zenith); LTE: 2.0 dBi; WiFi: 3.0 dBi

polarization GNSS: RHCP; LTE and WiFi: linear

impedance 50 Ω

Request Quote for This Model Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY056
Frequency	GNSS: 1559-1606 MHz; LTE: 796-960 / 1710-2700 MHz; WiFi: 2400-2483.5 / 5150-5850 MHz
Dimensions	59.2 × 52.5 × 15 mm
gain	GNSS: 2.0 dBic (zenith); LTE: 2.0 dBi; WiFi: 3.0 dBi
polarization	GNSS: RHCP; LTE and WiFi: linear
impedance	50 Ω
connector	Three SMA male
mounting	Screw mount
temperature	-40 to +85 °C
vswr	GNSS ≤1.5; LTE/WiFi ≤2.0
lna_gain	28 ± 2 dB
supply_voltage	2.2-5 V DC
current_consumption	5-15 mA
ingress_protection	IP65-IP67 (excluding cable outlet)
relative_humidity	Up to 95%
compliance	RoHS compliant
Category	Combo Antennas

GNSS, LTE and Dual-Band WiFi Through One Mount

GL-DY056 is the three-radio option in this group. It combines an active RHCP GNSS element covering 1559-1606 MHz, a linear LTE element covering 796-960 and 1710-2700 MHz, and a linear WiFi element covering both 2400-2483.5 and 5150-5850 MHz. This makes it a practical candidate for gateways, routers and mobile terminals that need positioning, wide-area cellular service and local wireless networking from one exterior antenna.

Separate Connectors for Three Radio Paths

The datasheet lists three SMA male connectors, allowing the GNSS, LTE and WiFi paths to terminate separately at the device. The GNSS path includes 28 ± 2 dB LNA gain and requires 2.2-5 V DC at 5-15 mA. The WiFi path is rated at 3.0 dBi, while the LTE path is rated at 2.0 dBi.

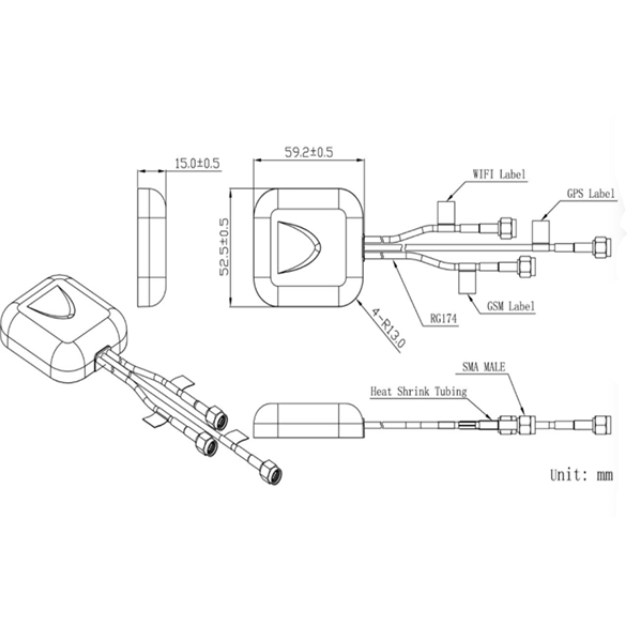

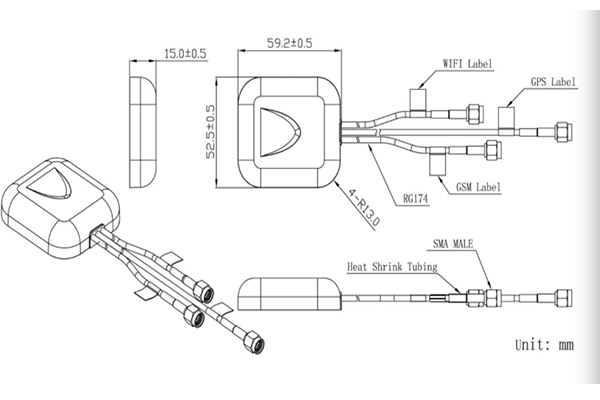

Compact Fixed Installation

The 59.2 × 52.5 × 15 mm housing uses a screw mount. It is listed for -40 to +85 °C operation, up to 95% relative humidity and IP65-IP67 excluding the cable outlet. Check the underside clearance for the mount and three cable exits before approving the enclosure drawing.

Verified Technical Specifications

RF configuration	Active GNSS + LTE + dual-band WiFi
Frequency range	GNSS: 1559-1606 MHz; LTE: 796-960 / 1710-2700 MHz; WiFi: 2400-2483.5 / 5150-5850 MHz
VSWR	GNSS ≤1.5; LTE/WiFi ≤2.0
Gain	GNSS 2.0 dBic at zenith; LTE 2.0 dBi; WiFi 3.0 dBi
LNA gain	28 ± 2 dB
Supply / current	2.2-5 V DC / 5-15 mA
Polarization	GNSS RHCP; LTE/WiFi linear
Impedance	50 Ω
Connector	Three SMA male
Dimensions / mounting	59.2 × 52.5 × 15 mm / screw mount
Ingress protection	IP65-IP67, excluding cable outlet
Operating temperature	-40 to +85 °C

Radio and Port Checklist

Map each SMA lead to its GNSS, LTE or WiFi port before installation, and confirm that the host radio supplies the required GNSS bias voltage. Use this model when both 2.4 GHz and 5 GHz WiFi are required; a cellular-only or GNSS + cellular model is simpler when local WiFi is not part of the system.
