GL-DY150Q3A 145-175 MHz 1-2.5 dBi Folded Dipole Antenna

Compact Single-Dipole Panel

The GL-DY150Q3A is the smallest member of the pole-mounted dipole panel family, a single-dipole unit for 145-175 MHz measuring about 1.4 m by 1.0 m. It provides a modest 1-2.5 dBi but carries the same high 300 W power rating as its larger siblings, which makes it useful where broad, near-omnidirectional coverage and high power handling are needed without the gain or size of a multi-bay curtain.

When a Single Dipole Is Right

Not every site needs high gain. A single dipole gives a wide, gentle pattern that fills a local area evenly, which is ideal for a small cell, an in-fill site, or a transmitter that must not over-concentrate its signal. The high 300 W rating means the antenna can still sit at a powerful transmitter without stress, and the broad 30 MHz bandwidth from 145-175 MHz keeps the match clean across the band. Vertical polarization suits land-mobile and paging service.

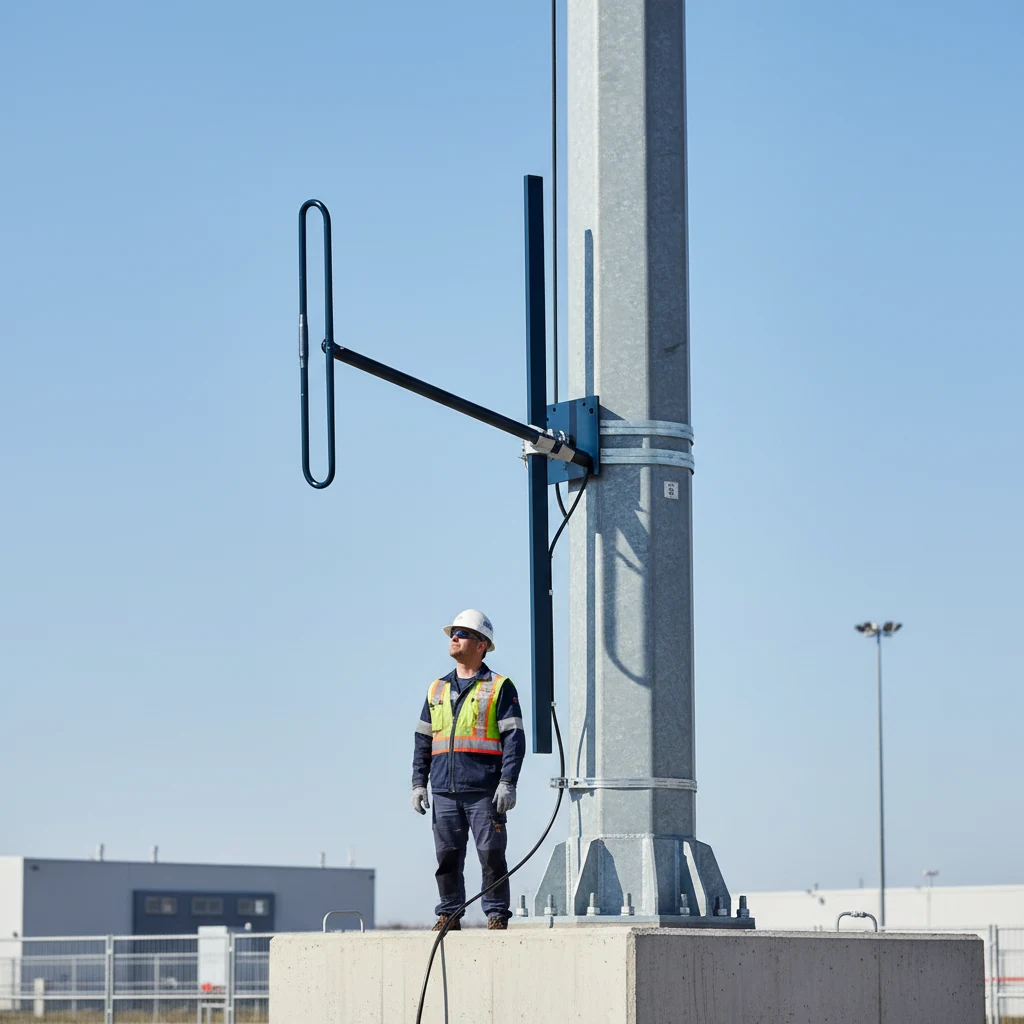

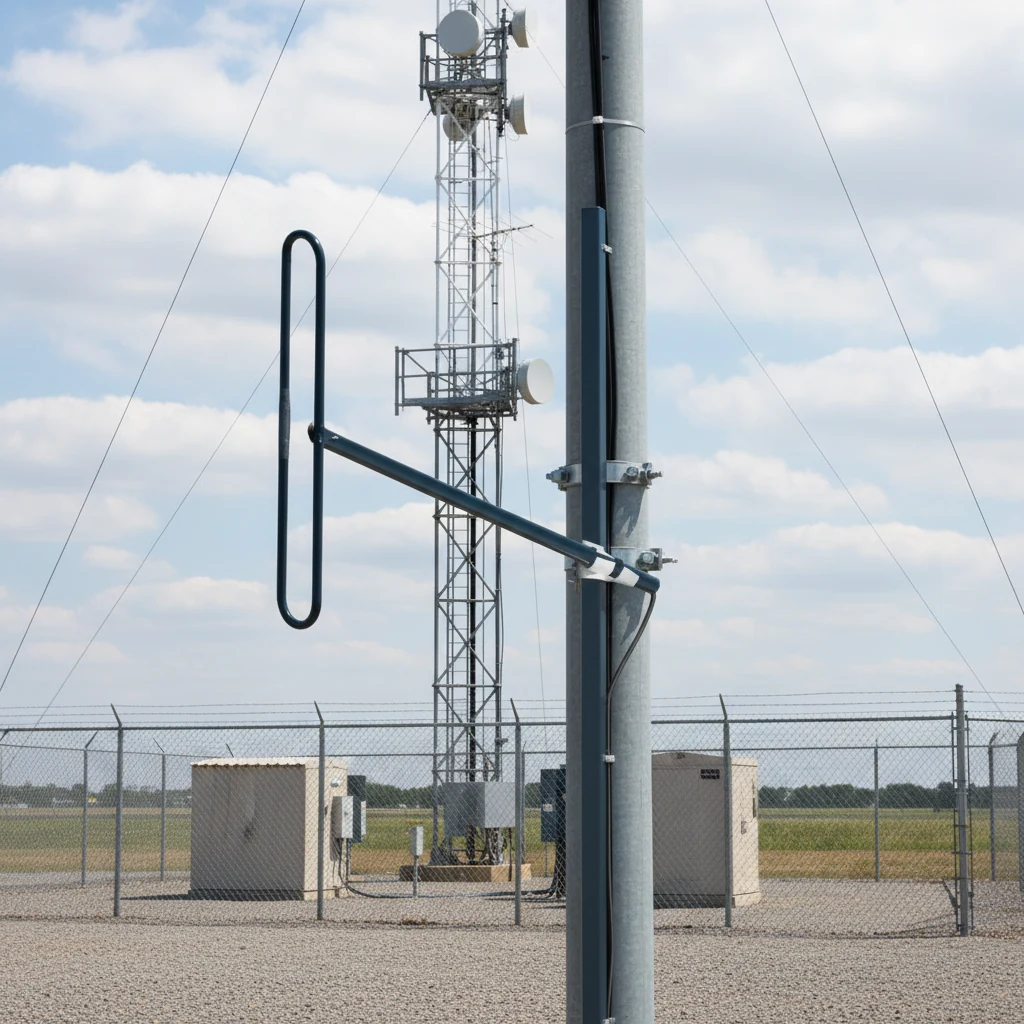

Pole Mounting

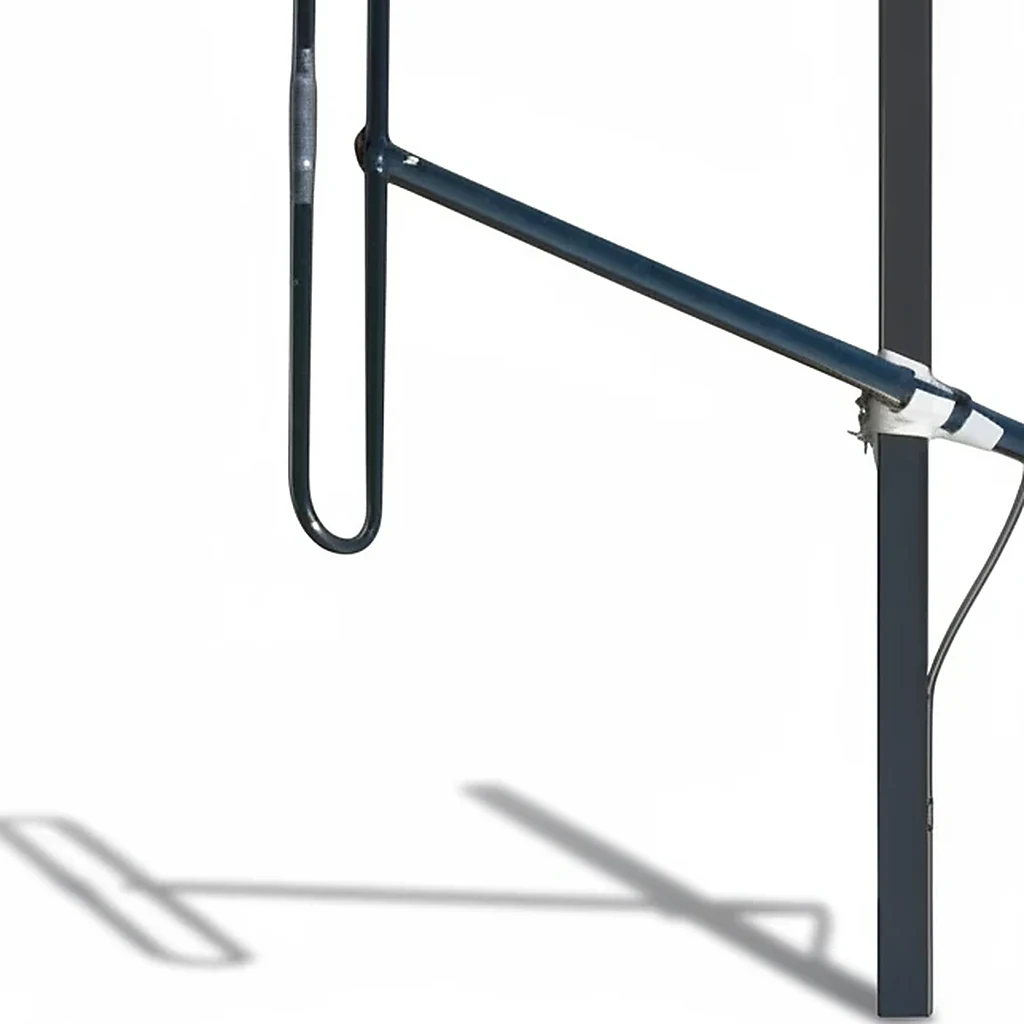

Like the rest of the Q panel family, the antenna mounts on an installer-supplied main pole using JM-DB clamp hardware, so it integrates with the existing mast. The 50 ohm feed is available with an N-female or 7/16 DIN female connector, and a 60 m/s wind rating supports permanent outdoor service. The compact panel keeps wind load and weight low.

Applications

• Local-area VHF coverage and in-fill cells
• High-power transmitters needing a broad, gentle pattern
• Paging and dispatch sites on 145-175 MHz
• Installations where a small pole-mounted dipole fits best

Choosing the Panel

Select GL-DY150Q3A when a compact single dipole at high power suits the coverage goal. For more gain, step up to the two-dipole GL-DY150Q6A or four-dipole GL-DY150Q9A in the same family. The supporting pole is installer-supplied; confirm the connector and clamp arrangement before ordering.
