RF Product · Folded Dipole Antenna

1 Folded Dipole Antenna 400-500 MHz GL400IA-S

SKUGL400IA-S

GL400IA-S is the folded dipole option to consider when size, weight or polarization choice limits the installation.

400-500 MHz68 cm400-500

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

SKUGL400IA-S

Frequency400-500 MHz

Dimensions68 cm

Frequency-MHz400-500

Bandwidth-MHz40

Gain-dBiOmni 2.15/Directional 3.2

Vertical Beamwidth-º60

VSWR≤1.5

Nominal Impedance-Ω50

PolarizationVertical or Horizontal

Maximum Power-W100

Dimensions-cm68

Weight-kg0.72

Rated Wind Velocity-m/s60

ConnectorN Female or Customization

RemarksAntenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer

CategoryFolded Dipole Antenna

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Choosing this model

GL400IA-S selection guide

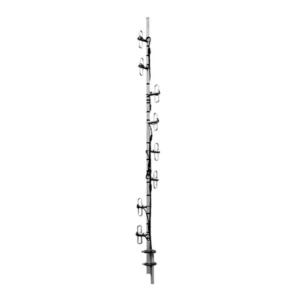

GL400IA-S is the folded dipole option to consider when size, weight or polarization choice limits the installation. GL400IIA offers higher listed gain, but is substantially larger and heavier; it is not a direct physical replacement.

This model permits vertical or horizontal polarization, whereas GL400IIA lists vertical polarization. Select the configuration before comparing the separate omnidirectional and directional gain figures. The main and supporting poles are customer-provided, so include those parts in the installation plan.
