Frequency145-175 MHz
Bandwidth30 MHz
Gain3-5.6 dBi
Vertical Beamwidth35°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power300 W
RF Product · Folded Dipole Antenna
Folded Dipole Antenna 3-5.6 dBi 145-175 MHz GL-DY150Q6A
SKUGL-DY150Q6A

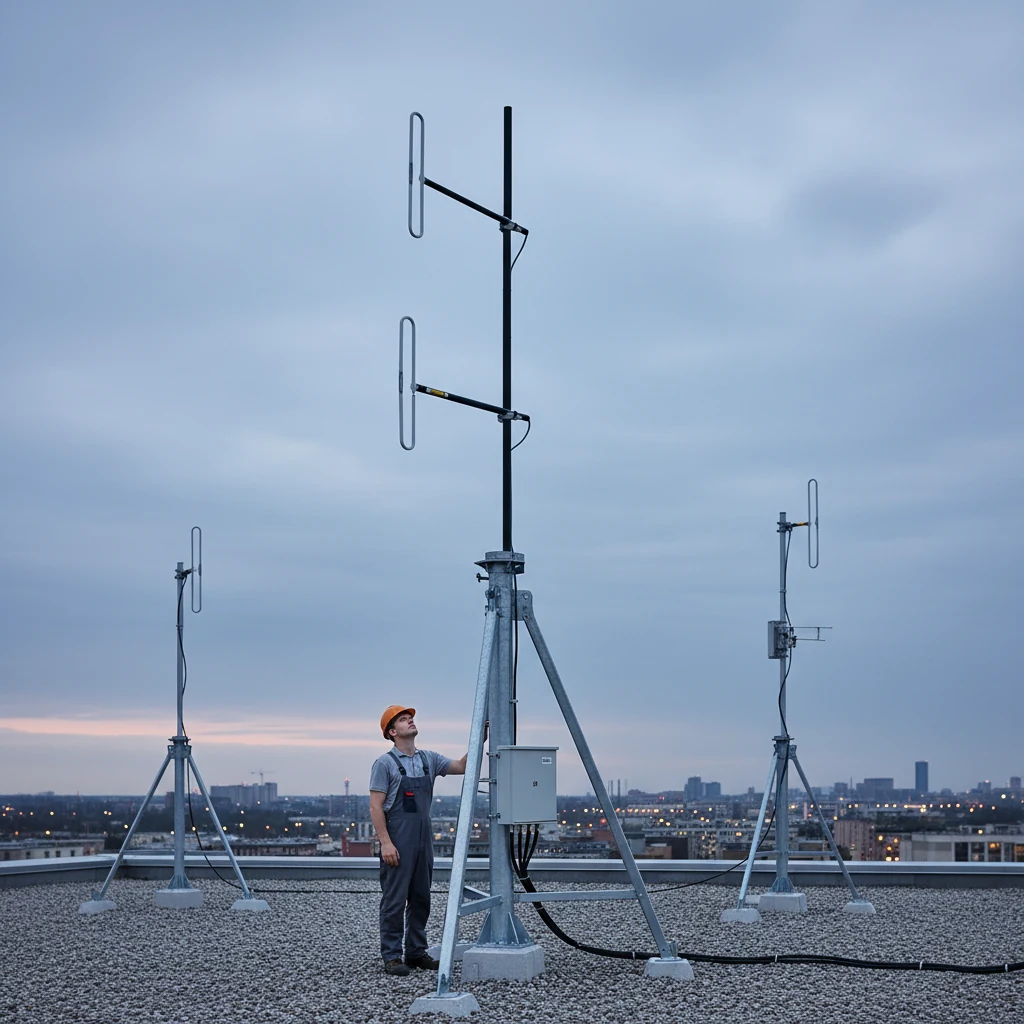

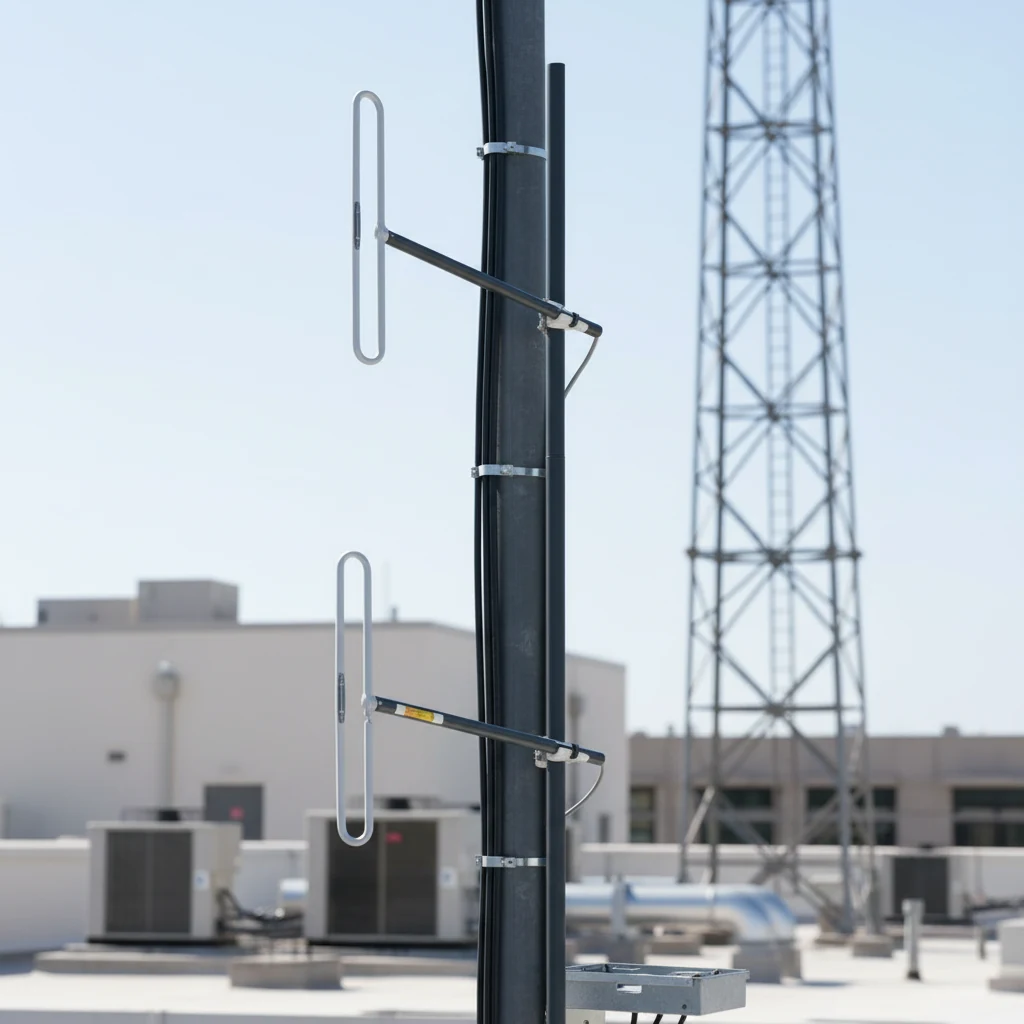

Two-dipole VHF panel array for 145-175 MHz delivering 3-5.6 dBi at 300 W, built as a 3.0 x 1.0 m pole-mounted array with JM-DB clamps.
145-175 MHzN Female or 7 / 16DIN Female2 dipole panel array antenna VHF
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY150Q6A
Frequency145-175 MHz
ConnectorN Female or 7 / 16DIN Female
Application2 dipole panel array antenna VHF
Bandwidth30 MHz
Gain3-5.6 dBi
Vertical Beamwidth35°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power300 W
Length3.0*1.0 m
Weight12 kg
Rated Wind Velocity60 m / s
RemarksSThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
CategoryFolded Dipole Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.ConnectorN Female or 7 / 16DIN Female
Length3.0*1.0 m
Weight12 kg
Rated Wind Velocity60 m / s
SKUGL-DY150Q6A
Application2 dipole panel array antenna VHF
RemarksSThe antenna includes a main pole and JM-DB clamp code (to be provided by the pole user)
CategoryFolded Dipole Antenna
Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-DY150Q6A | 145-175 MHz | 3-5.6 dBi | N Female or 7 / 16DIN Female | View model |
| GL-DY015Q9A | 134-174 MHz | 6-9 dBi | N Female or 7 / 16DIN Female | View model |
| GL-DY150Q3A | 145-175 MHz | 1-2.5 dBi | N Female or 7 / 16DIN Female | View model |
| GL-DY150Q9A | 144-174 MHz | 6-9 dBi | N Female or 7 / 16DIN Female | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
