5G IoT Antenna Solutions for Industrial and Smart Applications

Choosing a 5G IoT antenna comes down to three decisions: which 5G NR bands the network actually uses at your site, how many receive branches your radio module has, and how much room the antenna and its ground plane get inside the housing. Get those three right and the rest of the datasheet rarely decides the outcome.

Short answer:

• Bands first. Confirm the NR bands in use at the install site, then shortlist only antennas that cover them. Gain cannot fix a missing band.
• Let the module set the antenna count. A standard 5G NR device expects 2 or 4 receive branches. A 3GPP RedCap device is allowed just one.
• Size follows frequency. A 700 MHz band wants a ground plane on the order of 100 mm to work properly. At 3.5 GHz you need roughly a quarter of that.
• Decide the environment before tooling. Temperature range, IP rating, and locking connectors are specification-phase choices, not field retrofits.

We design and manufacture antennas for IoT modules, gateways, and infrastructure across industrial, agricultural, and smart city verticals. This article follows the order we work through with customers: bands, antenna count, form factor, then environment.

Why 5G for IoT?

LTE handles low-data-rate sensors adequately. 5G becomes necessary when IoT applications require:

• Higher throughput: HD video surveillance, augmented reality maintenance overlays, and digital twin streaming exceed LTE capacity.
• Lower latency: Robotic control, vehicle coordination, and remote equipment operation need single-digit millisecond response. The ITU’s minimum performance requirement for IMT-2020 (the formal name for the 5G requirement set) puts user-plane latency at 1 ms for URLLC and 4 ms for mobile broadband (Report ITU-R M.2410).
• Device density: The same ITU report sets the mMTC connection density requirement at 1,000,000 devices per square kilometer.
• Network slicing: Guaranteed quality-of-service for critical IoT traffic coexisting with consumer broadband on the same physical infrastructure.

One caveat that changes antenna decisions: that million-devices figure is defined for a very specific traffic model. In the ITU’s companion evaluation methodology (Report ITU-R M.2412), each of those devices sends roughly a 32-byte packet once every two hours and gets up to 10 seconds to deliver it. It is a density target for tiny, infrequent messages — not for a million cameras. If a project quotes the number to justify high-gain antennas everywhere, it is being used for the wrong job.

Step 1: Match the Bands Before Anything Else

The most common field failure we see is an antenna that covers “5G” in general but not the band the local network actually runs. 3GPP splits 5G NR into two frequency ranges: FR1 covers 410 MHz to 7125 MHz and FR2, the millimeter-wave range, covers 24.25 GHz to 52.6 GHz (3GPP/ETSI TS 138 521-3, Table 5.1-1). Almost every IoT deployment lives in FR1.

Inside FR1, the mid-band group does most of the work:

Regulators keep moving these boundaries, so band lists age badly. In the United States the FCC auctioned 280 MHz in the 3.7–3.98 GHz C-band alone (Auction 107); combined with the neighboring 3.45 GHz and 3.5 GHz bands, the agency counts roughly 530 MHz of contiguous mid-band spectrum for 5G. A device sold into that market needs coverage across the whole group, not a narrow resonance tuned to one operator’s channel.

Two practical rules follow:

• Get the band list per site, from the operator or the private network design. A module’s global band table is not the same as the spectrum available where the device will be installed.
• If the product ships to more than one country, treat wideband coverage as a hard requirement and expect to pay for it in size or efficiency.

Step 2: Let the Module Decide How Many Antennas You Need

This is the step most selection guides skip. Antenna count is not a free choice; the radio module and the 5G device class set it for you.

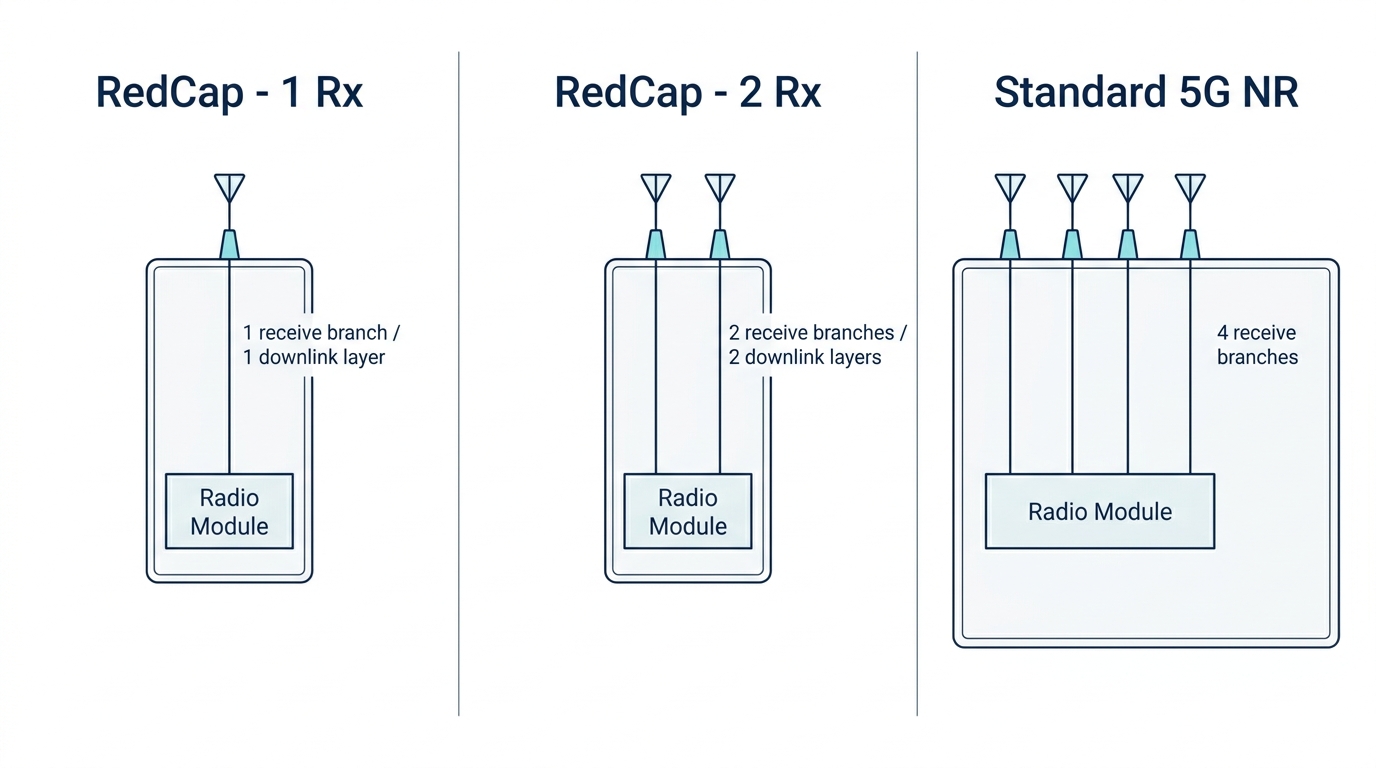

3GPP added a lighter 5G device class in Release 17 called RedCap (reduced capability), built specifically for IoT. It changes the antenna math directly:

• Maximum FR1 bandwidth for a RedCap device is 20 MHz, against 100 MHz or more for a standard NR device.
• Where a normal NR device must carry at least 2 or 4 receive antenna branches, a RedCap device is allowed just 1.
• With one receive branch it supports one downlink MIMO layer (one independent data stream); with two branches, two layers (3GPP: a glimpse into RedCap NR devices).

Release 18 added eRedCap, capped at 10 Mbps, aimed at the high-volume segment LTE Cat-1 serves today (GSMA: RedCap/eRedCap for IoT). This is not a niche detour: cellular IoT connections reached around 4.5 billion at the end of 2025 and are forecast to approach 8 billion by 2031, with RedCap already commercially launched by 14 service providers (Ericsson Mobility Report).

What that means when you pick the antenna:

• A single-Rx RedCap sensor does not need a MIMO pair. Put the money and the board space into one good antenna and its ground plane instead of squeezing in two mediocre ones.
• A single-branch device has no diversity to fall back on, so placement, ground plane, and cable quality matter more, not less.
• A 2×2 or 4×4 antenna set only pays off if the module has those branches and the network runs the matching MIMO layers.
• Mixed fleets are normal. If one enclosure will host both a RedCap module and a full NR module, design the mechanical antenna position for the harder case.

IoT Antenna Form Factors

IoT devices range from coin-sized wearable sensors to vehicle-mounted gateway aggregators. The antenna must scale with the device envelope and the performance requirements.

Embedded PCB Antennas

For devices with severe space constraints, the antenna is etched directly onto the printed circuit board. A 5G PCB antenna typically uses one of the following topologies:

• Inverted-F antenna (IFA): Compact, single-band or dual-band, common in smartphones, wearables, and handheld industrial terminals.
• Patch antenna: Higher gain, directional, used in fixed-location IoT gateways and access points.
• Meandered monopole: Omnidirectional, compact, but electrically small and therefore lower radiation efficiency.

PCB antennas are cheap and invisible, and they are also the most physics-constrained option. They are sensitive to ground plane size (the copper area the antenna radiates against), nearby metal, battery placement, and enclosure material.

The size problem can be estimated before you commit to a layout. Wavelength in air is roughly 300 divided by the frequency in MHz, in meters, and a small antenna generally wants a ground plane on the order of a quarter wavelength behind it:

Those are engineering estimates from the wavelength formula, not measured results, and a well-designed matching network or booster element can beat them. But the ratio explains something that surprises a lot of teams: adding low-band coverage to a design is not a filter change, it changes how much copper the antenna needs underneath it. A 60 mm sensor board that behaves acceptably at 3.5 GHz has no realistic path to good 700 MHz efficiency without an external element.

For millimeter-wave, mechanical tolerances get extremely tight — sub-millimeter errors in trace length destroy phase coherence — so most designs shift to antenna-in-package (AiP) or antenna-on-chip (AoC). When the device can tolerate an external option, teams often compare that route against cellular and GNSS antenna integration for M2M terminals.

External Stub and Whip Antennas

For devices that can accommodate an external protrusion, stub and whip antennas offer better efficiency than PCB solutions. They are common in:

• Industrial gateways and edge routers
• Vehicle telematics units
• Temporary monitoring stations and portable test equipment

These antennas are typically single-band or dual-band (4G/5G) with SMA or RP-SMA connectors, and usually land between 2 and 5 dBi. The tradeoff is mechanical: whips snap in industrial environments, and stubs add height.

One number to insist on before comparing gain figures is the loss of the cable, at your band, over the length you will actually install. What reaches the air is antenna gain minus cable and connector loss, and thin coax gets worse as frequency rises. A 3 dBi antenna on a short pigtail can beat a 5 dBi antenna at the end of a long thin run. Ask for the loss specification at your operating band rather than a single headline number, and keep the run as short as the installation allows.

Magnetic Mount Antennas

Magnetic mount antennas provide deployment flexibility for temporary or mobile installations. A 5G magnetic mount IoT antenna can be repositioned to optimize signal strength without drilling, wiring, or permanent installation.

Use cases include:

• Mobile asset trackers on shipping containers and trailers
• Construction site environmental monitoring
• Pop-up retail and event connectivity
• Fleet vehicle diagnostics and telematics

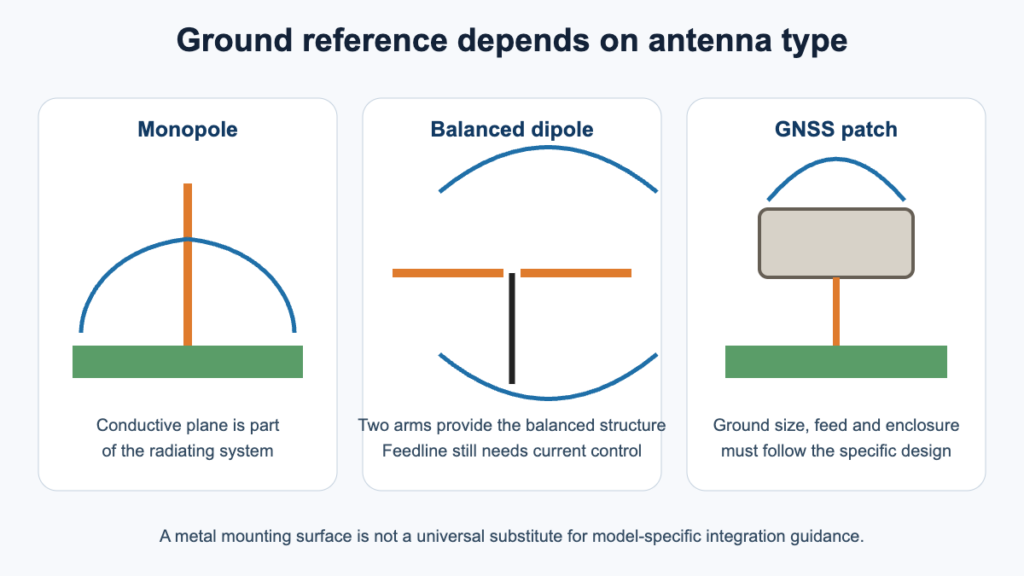

Magnetic mounts rely on capacitive coupling to a conductive ground plane—typically the metal surface they attach to. On non-metallic surfaces such as fiberglass vehicle bodies or plastic enclosures, a magnetic antenna performs poorly unless a separate ground plane is integrated into the mounting location. We frequently see field performance issues traced to improper ground plane implementation.

Fiberglass Omnidirectional Antennas

For IoT gateway aggregators that collect data from hundreds of local sensors, a high-gain omnidirectional antenna extends coverage radius and reduces the number of required gateway nodes. Fiberglass-encased collinear arrays are standard for outdoor IoT hubs in agriculture, oil and gas, mining, and smart city deployments.

These antennas offer:

• 5 to 12 dBi gain
• 360-degree horizontal coverage
• UV stabilization and weather resistance
• Multiband support (4G LTE + 5G NR in a single housing)

5G IoT Antenna Selection by Industry Vertical

Smart Manufacturing

Factory floors are RF-hostile. Metal machinery, shelving, conveyor systems, and automated guided vehicles create severe multipath and shadowing.

Recommended approach:

• Deploy private 5G with indoor small cells or DAS using 4×4 MIMO antennas at the base station, so multipath becomes capacity instead of a problem.
• For mobile devices such as AGVs and handheld scanners, use compact external antennas with locking connectors (SMA with knurl nut, or QMA) to survive vibration.
• Avoid PCB antennas inside metal enclosures. Metal reflects and blocks RF, so unless the enclosure is RF-transparent or has an external antenna port, an internal antenna is a gamble.

Smart Agriculture

Rural macro coverage is sparse. IoT devices in agriculture must reach the nearest tower or private base station across long distances.

Recommended approach:

• Fixed sensors (soil moisture, weather stations, irrigation controllers): high-gain directional or Yagi antennas aimed at the nearest macro tower or private base station.
• Mobile machinery (tractors, harvesters, asset trackers): omnidirectional antennas with automatic band selection, because terrain and heading change constantly.
• Gateway aggregators: fiberglass omnidirectional antennas on poles, grain silos, or irrigation pivot towers.

Distance is where low-band coverage earns its keep. Free-space loss rises about 6 dB every time you double either the distance or the frequency, so moving from 900 MHz to 3.5 GHz costs roughly 12 dB before terrain, foliage, or enclosure losses are counted. The reference formula is in Recommendation ITU-R P.525: loss in dB = 32.45 + 20 log₁₀(distance in km) + 20 log₁₀(frequency in MHz). Treat the result as a floor, not a prediction — real links always come out worse.

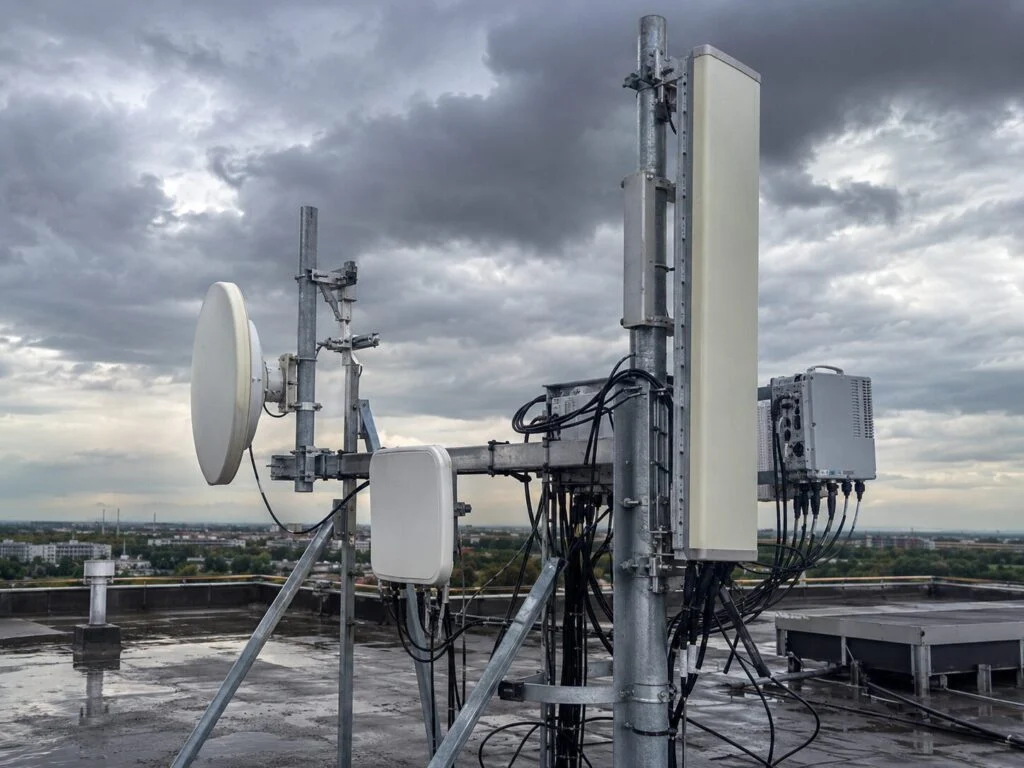

Smart Cities

City IoT encompasses traffic sensors, environmental monitors, parking systems, public safety cameras, streetlight controllers, and emergency call boxes. Device density is high, but per-device data rates are typically low.

Recommended approach:

• Street furniture small cells with integrated or compact external antennas.
• Multi-operator band coverage where municipal contracts require carrier neutrality.
• Low-profile housings to limit visual impact and vandalism.
• Pole-mounted enclosures with enough heat dissipation to run continuously in direct sun.

Connected Vehicles and Fleet Management

Vehicle-mounted IoT requires antennas that perform at highway speeds, in urban canyons, and across varying weather conditions.

Recommended approach:

• Roof-mounted low-profile omnidirectional antennas, so connectivity does not cost vehicle height.
• MIMO (2×2 minimum, 4×4 preferred) to hold the link together through movement and multipath transitions.
• Enclosures qualified for automotive temperature and vibration. The ISO 16750 series is the usual reference: Part 3 covers mechanical loads, Part 4 climatic loads, Part 5 chemical loads.

It helps to know what those vibration tests involve. For some mounting locations, ISO 16750-3 calls for random vibration applied 22 hours per axis at an r.m.s. acceleration around 96.6 m/s², close to 10 g. A mount or connector that stays tight through an afternoon on the bench proves very little.

The 5G Smart Antenna Concept

A 5G smart antenna goes beyond passive radiation. It incorporates active RF components and control logic that adapt to the environment in real time.

Key capabilities of smart antennas for IoT include:

• Adaptive beam steering: The antenna electronically steers its main lobe toward the strongest base station signal, compensating for device movement or environmental changes.
• Automatic band selection: The antenna and modem coordinate to select the optimal frequency band based on real-time link quality, traffic load, and interference.
• Interference nulling: The antenna array places a null—a direction of minimum receive sensitivity—toward a known interference source, improving signal-to-noise ratio without increasing transmit power.

For fixed IoT gateways, smart antennas improve reliability in marginal signal conditions. For mobile IoT, they are often essential to maintain connectivity during transitions between cells, bands, and environments.

Power and Efficiency Considerations

IoT devices are frequently battery-powered or solar-powered. Antenna efficiency directly affects power consumption because a less efficient antenna requires higher transmit power to achieve the same effective isotropic radiated power (EIRP).

The percentages above are typical design targets rather than measured results for any specific part. Ask for the efficiency curve across your band before you rely on a number.

The useful way to read them: 3 dB more antenna efficiency means either twice the radiated power for the same input, or the same radiated power for half the input. How much battery life that buys depends on how much of the energy budget is actually spent transmitting. On a sensor that wakes for a two-second report every hour, the gain is real but modest. On a device that streams, or one that sits at the edge of coverage and keeps retrying and re-registering, it is often the difference between lasting a season and needing a truck roll.

Environmental Hardening

Industrial IoT antennas face conditions that consumer electronics never encounter:

• Temperature extremes: Oil fields, deserts, and cold storage facilities require -40°C to +85°C operation. Standard consumer-grade antennas rated for 0°C to +40°C will fail.
• Chemical exposure: Agriculture and manufacturing environments expose antennas to fertilizers, pesticides, solvents, cutting fluids, and oils. The radome material must resist chemical attack.
• Vibration and shock: Vehicle and heavy machinery installations require vibration-resistant mounting, locking connectors, and strain relief on all cables.
• Water immersion: Flood monitoring, marine, and pressure-wash environments call for IP67 or IP68. Under IEC 60529, IP67 means dust-tight plus 30 minutes of immersion at 1 m; IP68 means immersion beyond that, under conditions the manufacturer states. Note what neither covers: high-pressure or high-temperature jet cleaning is a separate test (IP69K). Washdown areas in food and dairy plants are exactly where an IP67 part fails on schedule.
• Rodent and insect intrusion: Rural and agricultural deployments should use sealed enclosures with metal mesh over ventilation ports.

Specify environmental ratings at the project definition phase. Retrofitting an antenna for harsh-environment compliance after deployment requires device disassembly, site visits, and often complete antenna replacement.

Before Production: What to Actually Verify

An antenna that passes on the bench can still fail in the product. The checks that catch problems while they are still cheap:

• Measure in the housing, not on the bench. Impedance and efficiency change once the antenna sits next to the battery, the display, and the plastic. Test the assembled device.
• Check the whole band, not the center. A part that looks good at 3.5 GHz can fall apart at the band edges where your operator actually holds spectrum.
• Confirm receive branches end to end. On a 2×2 device, verify both chains are alive and isolated. A dead second branch passes a functional test and costs you in the field.
• Test at temperature. Detuning at -40 °C or +85 °C is common and invisible at room temperature.
• Pull-test the cable and connector. Handling and vibration break more links than RF design does.
• Freeze the mechanical position. Moving an antenna 10 mm late in the project can undo the tuning work, so treat its keep-out area as a fixed part of the enclosure.

Summary

Work in this order and most antenna problems disappear before they cost money:

1. Bands. Get the NR bands for the actual site, then shortlist parts that cover them.
2. Antenna count. Take it from the module and the device class. A single-Rx RedCap sensor and a 4×4 gateway are different problems.
3. Form factor. PCB antennas suit small, cost-sensitive devices where space beats performance. External and magnetic mount antennas give gateways and mobile units better efficiency and flexibility. High-gain fiberglass antennas work as aggregation hubs across rural and wide-area sites.
4. Environment. Temperature range, IP rating, chemical exposure, and vibration decide the housing and the connector — and they have to be settled before tooling, not after the first winter.

The catalog is the last step, not the first. Match the antenna to the physical realities of the installation, then verify NR band coverage and branch count against the module and the target network. For industrial and outdoor deployments, environmental hardening is not a nice-to-have — it decides whether the device survives its first season in the field.

FAQ

When does an IoT application actually need 5G instead of LTE?

When it requires higher throughput (HD video surveillance, AR overlays, digital twin streaming), sub-10 ms latency, very high device density (1 million+ devices per square kilometer), or network slicing. LTE still handles low-data-rate sensors adequately.

What antenna form factors are used for 5G IoT?

Embedded PCB antennas for tight spaces, external stub and whip antennas (typically 2 to 5 dBi), magnetic-mount antennas for temporary or mobile installs, and high-gain fiberglass omnidirectional antennas (5 to 12 dBi) for gateway aggregators.

How many antennas does a 5G IoT device need?

That is set by the device class, not by preference. A standard 5G NR device is required to have at least 2 (or 4) receive branches. A 3GPP Release 17 RedCap device may have a single receive branch and one downlink MIMO layer, which removes the need for a MIMO antenna pair on many sensor-class products.

Which 5G bands should a global IoT product cover?

At minimum the mid-band group n77 and n78 (3300–4200 MHz and 3300–3800 MHz), plus the low bands used for coverage in your target markets (600–900 MHz). Confirm the list per country and per operator; a module’s global band table is not the same as the spectrum available at the install site.

Can I reuse my LTE antenna on a 5G IoT device?

Sometimes — if its band coverage includes the NR bands in use and the branch count matches the module. What usually breaks the reuse is coverage at the low end and the ground plane the older design assumed, not the connector.

Why does antenna efficiency matter for battery-powered IoT?

A less efficient antenna needs more transmit power for the same EIRP, which drains the battery faster. 3 dB more efficiency means twice the radiated power for the same input, or the same radiated power for half the input. How much battery life that saves depends on how much of the energy budget is actually spent transmitting.

What environmental ratings do industrial IoT antennas need?

Often -40 C to +85 C operation, chemical resistance, vibration-resistant mounting with locking connectors, and IP67 or IP68 sealing for water exposure. Specify these at the project definition phase rather than retrofitting later.
